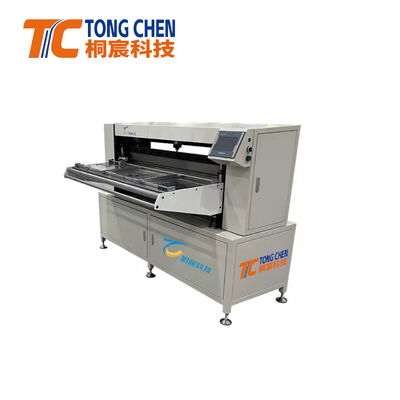

Industrial Second-Generation Semi-Automatic Paper Folding Machine for High-Speed Filter Element Manufacturing

1
MOQ
$3000~8000
Price
Industrial Second-Generation Semi-Automatic Paper Folding Machine for High-Speed Filter Element Manufacturing
Features Gallery Product Description Request A Quote
Features
Specifications
Computerized: Yes
Guarantee Time: 1 Year
Paper Conveying Speed: 0.5 M/min - 25 M/min (adjustable)
Adjustable Width Of Filter Paper: 25 - 850 Mm
Adjustable Folding Height: 5 - 100 Mm (depending On Material)
Maximum Product Width: 850 Mm
Highlight:

semi-automatic paper folding machine

,

industrial filter element folding machine

,

high-speed air filter production machine
Basic Infomation
Place of Origin: Anhui,China
Brand Name: TONGCHEN
Certification: ISO
Model Number: TC-5566
Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 15
Product Description
Industrial Second-Generation Semi-Automatic Paper Folding Machine
Engineered for high-speed, precise, and efficient pleating of filter paper, this integrated system combines automatic feeding, pre-cutting, counting, and folding functions into one continuous process. Significantly enhances production efficiency while ensuring consistent product quality. Ideal for automotive filters, air purification filters, and industrial filtration materials.

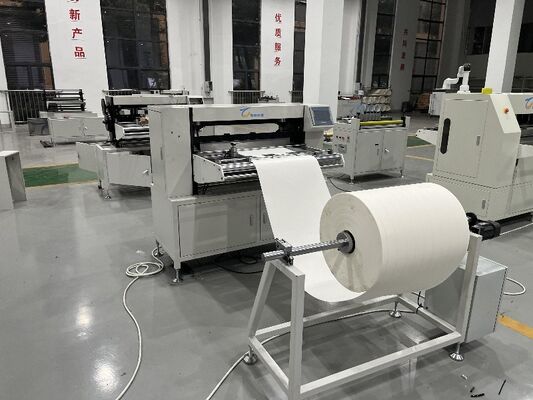

Industrial Second-Generation Semi-Automatic Paper Folding Machine for High-Speed Filter Element Manufacturing 0
Technical Specifications
Filter Paper Conveying Machine
Specification Value
Paper Conveying Speed 0.5 m/min - 25 m/min (adjustable)
Adjustable Width of Filter Paper 25 - 850 mm
Power Supply Voltage 220V / 50Hz
Motor Power 0.55 kW
Working Air Pressure 0.6 Mpa
Machine Weight 250 kg
Dimensions (L × W × H) 1280 × 1100 × 1200 mm
Filter Paper Folding Machine
Specification Value
Maximum Product Width 850 mm
Adjustable Folding Height 5 - 100 mm (depending on material)
Folding Speed 0 - 280 folds/min (stepless adjustable)
Power Supply Voltage 380V / 50Hz
Main Motor Power 1.5 kW
Lifting Motor Power 0.4 kW
Preheating Power 6 kW
Temperature Control Range Normal temperature - 260°C
Working Air Pressure 0.6 Mpa
Machine Weight 450 kg
Dimensions (L × W × H) 1800 × 1900 × 1650 mm
Key Features
  • High Cutting Accuracy: Delivers smooth, precise, burr-free cuts with minimal deviation for uniform material dimensions and consistent filter quality
  • Adjustable Cutting Size: Customizable cutting length and width to accommodate various filter types and material sizes
  • Pneumatic-Driven System: Operates with stable 0.6 Mpa air pressure for reliable cutting force, low vibration, and extended component life
  • Compact & User-Friendly Design: Small footprint with simple operation, suitable for both standalone use and integration into automated production lines
  • Durable Structure: Manufactured with high-quality steel components for long-term industrial use under continuous operation
Optional Configurations
Custom folding height and speed adjustments, integration with glue spraying systems, optional heating and cooling modules, digital counter and PLC touch control panel.
Applications
  • Automotive Air Filters
  • Cabin Filters
  • Industrial Dust Filters
  • Air Purification Filters
  • HEPA Filter Production Line
Packaging & Delivery
Selling Units: Single item

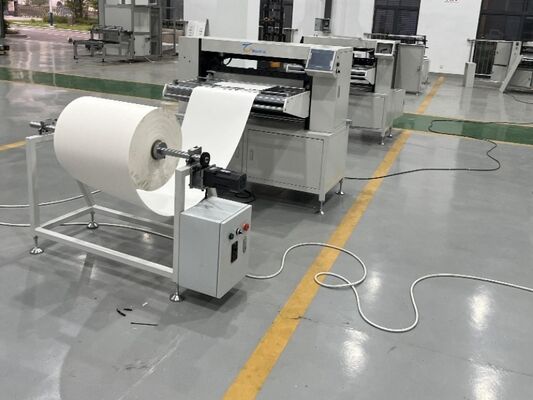

Industrial Second-Generation Semi-Automatic Paper Folding Machine for High-Speed Filter Element Manufacturing 1
Manufacturer Profile
Bengbu Tongchen Automation Technology Equipment Co., Ltd. is located in Bengbu, China—an important transportation hub and industrial base. Our company specializes in the development, design, and production of filter manufacturing equipment, providing advanced, practical, and efficient solutions that meet both domestic trends and international standards.
Product Range
  • Paper folding equipment and rotating machines
  • Diesel engines and large air filter production equipment
  • Partitionless and partitioned filter production equipment
  • Pleating machines and glass fiber strip production lines

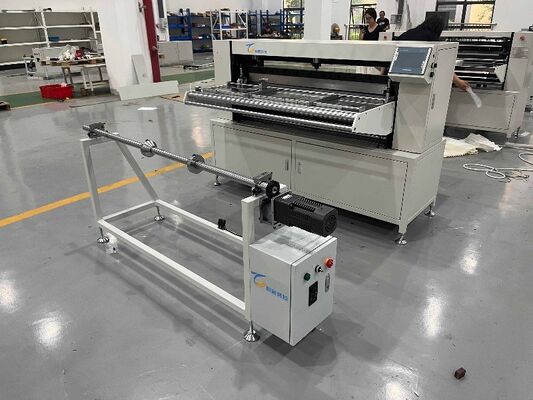

Industrial Second-Generation Semi-Automatic Paper Folding Machine for High-Speed Filter Element Manufacturing 2 Industrial Second-Generation Semi-Automatic Paper Folding Machine for High-Speed Filter Element Manufacturing 3 Industrial Second-Generation Semi-Automatic Paper Folding Machine for High-Speed Filter Element Manufacturing 4
