380V HEPA Filter Manufacturing Machine 0.6mpa Small Pleating Machine 6KW

1 set
MOQ
$1000/sets~$50000/sets
Price

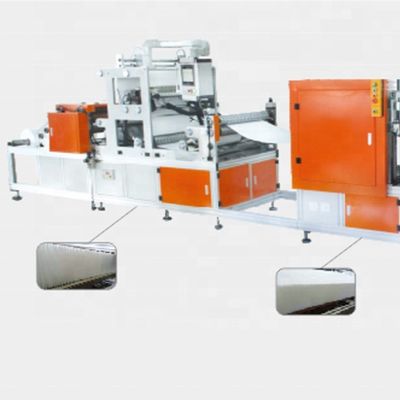

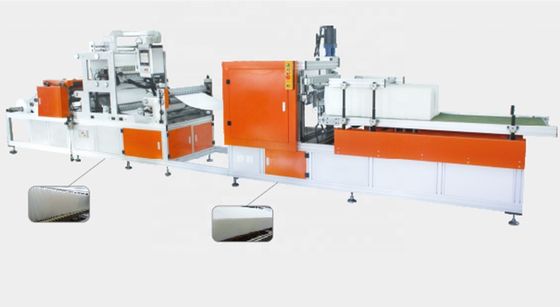

380V HEPA Filter Manufacturing Machine 0.6mpa Small Pleating Machine 6KW
Features Gallery Product Description Request A Quote
Features
Specifications
Name: HEPA Filter Manufacturing Machine
Model Number: TCNWG100-1000
Dimension(l*w*h): 1800*1500*2250mm
Automatic Grade: Automatic
Voltage: 220
Power: 380
Machinery Capacity: 0-100 Folding/minute Stepless Adjustable
Key Machines: Full Digital Servo Motor And Driver
Condition: New
Weight: 450 KG
Highlight:

380V HEPA Filter Manufacturing Machine

,

HEPA Filter Manufacturing Machine 0.6mpa

,

Small Pleating Machine 6KW

Basic Infomation
Place of Origin: Anhui, China
Brand Name: TC
Model Number: TCZZ-100
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 15-45 work days
Supply Ability: 10 Set/Sets per Day
Product Description

Hepa Manufacturing High Efficient HEPA Filter Pleating Equipment Mini Pleat Machine HEPA Pleater Paper Folding Equipment

Product Description




Product Name
High Quality Cheap Price Hot Hress Filter Materials Composite Making Machine
Folding machine
850-4
Maximum width of product
850mm
Adjustable height range
30-850mm
Folding speed
0-100 folding/minute stepless adjustable
Distance between glass fiber lines
32mm
Supply voltage
380V-50Hz
Main motor power
4× 0.75KW, rising motor: 0.4KW
Preheating power
6KW
Temperature control range
normal temperature 0-300 degrees Celsius
Working pressure
0.6mpa
Machine weight
450kg
Dimensions
1800×1500×2250mm (length × width × height).

Features

(1) Paper feeding working platform: there is a line limit device above and below the platform to ensure the stable and stable input folding of lines.
(2) Safety grating: there is a photoelectric sensor at the folding mouth of the upper and lower knives. As long as there are objects blocking the photoelectric, the equipment will immediately stop working and effectively protect the work For personnel safety in production,
(3) Paper folding device: paper folding is composed of two servo-controlled upper and lower blades, with fast speed and high efficiency. (4) Paper folding machine using full servo, electronic CAM servo motor control up and down blade operation to complete the folding product
(5)up and down pressing cardboard, aluminum processing, professional for glass fiber material folding, will not have a little damage to the material.
(6) After work plate: made of thickened stainless steel.



Company Profile
380V HEPA Filter Manufacturing Machine 0.6mpa Small Pleating Machine 6KW 0
Production Line
380V HEPA Filter Manufacturing Machine 0.6mpa Small Pleating Machine 6KW 1
Packing & Delivery
380V HEPA Filter Manufacturing Machine 0.6mpa Small Pleating Machine 6KW 2
FAQ

Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom
Q4. Any other good service your company can provide?
A4. Yes,we can provide good after-sale and fast delivery.
