Name: Semi-Automatic Second-Generation Paper Folding Machine for High-Speed Filter Element Production
Brand: Bengbu Tongchen Automation Technology Co., ltd
SKU: TC-5566
Price: 5,500.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Computerized: Yes

Guarantee Time: 1 Year

Paper Conveying Speed: 0.5 M/min - 25 M/min (adjustable)

Adjustable Width Of Filter Paper: 25 - 850 Mm

Adjustable Folding Height: 5 - 100 Mm (depending On Material)

Maximum Product Width: 850 Mm

Highlight:

semi-automatic paper folding machine

high-speed filter element production

second-generation air filter machine

Basic Infomation

Place of Origin: Anhui,China

Brand Name: TONGCHEN

Certification: ISO

Model Number: TC-5566

Payment & Shipping Terms

Packaging Details: Wooden Box

Delivery Time: 30

Payment Terms: T/T

Supply Ability: 15

Gallery

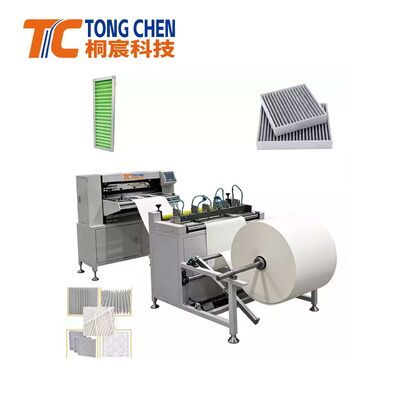

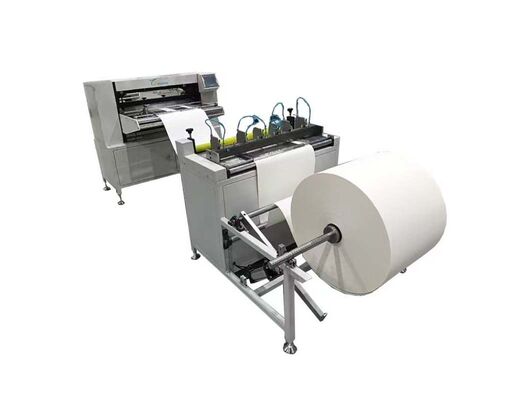

Semi-Automatic Second-Generation Paper Folding Machine for High-Speed Filter Element Production

Product Description

Semi-Automatic Second-Generation Paper Folding Machine

Engineered for high-speed, precise, and efficient pleating of filter paper, this integrated system combines automatic feeding, pre-cutting, counting, and folding functions into one continuous process. Significantly enhances production efficiency while ensuring consistent product quality. Ideal for automotive filters, air purification filters, and industrial filtration materials.

Technical Specifications

Filter Paper Conveying Machine

Specification	Value
Paper Conveying Speed	0.5 m/min - 25 m/min (adjustable)
Adjustable Width of Filter Paper	25 - 850 mm
Power Supply Voltage	220V / 50Hz
Motor Power	0.55 kW
Working Air Pressure	0.6 Mpa
Machine Weight	250 kg
Dimensions (L × W × H)	1280 × 1100 × 1200 mm

Filter Paper Folding Machine

Specification	Value
Maximum Product Width	850 mm
Adjustable Folding Height	5 - 100 mm (depending on material)
Folding Speed	0 - 280 folds/min (stepless adjustable)
Power Supply Voltage	380V / 50Hz
Main Motor Power	1.5 kW
Lifting Motor Power	0.4 kW
Preheating Power	6 kW
Temperature Control Range	Normal temperature - 260°C
Working Air Pressure	0.6 Mpa
Machine Weight	450 kg
Dimensions (L × W × H)	1800 × 1900 × 1650 mm

Key Features

High Cutting Accuracy: Delivers smooth, precise, burr-free cuts with minimal deviation for uniform material dimensions and consistent filter quality
Adjustable Cutting Size: Customizable cutting length and width to accommodate various filter types and material sizes
Pneumatic-Driven System: Operates with stable 0.6 Mpa air pressure for reliable cutting force, low vibration, and extended component life
Compact & User-Friendly Design: Small footprint with simple operation, suitable for both standalone use and integration into automated production lines
Durable Structure: Manufactured with high-quality steel components for long-term industrial use under continuous operation

Optional Configurations

Custom folding height and speed adjustments
Integration with glue spraying systems
Optional heating and cooling modules
Digital counter and PLC touch control panel

Applications

Automotive Air Filters
Cabin Filters
Industrial Dust Filters
Air Purification Filters
HEPA Filter Production Line

Packaging & Delivery

Selling Units: Single item

Manufacturer Profile

Bengbu Tongchen Automation Technology Equipment Co., Ltd. is located in Bengbu, China—an important transportation hub and industrial base. Our company specializes in the development, design, and production of filter manufacturing equipment, providing advanced, practical, and efficient solutions that meet both domestic trends and international standards.

Product Range

Paper folding equipment and rotating machines
Diesel engines and large air filter production equipment
Partitionless and partitioned filter production equipment
Pleating machines and glass fiber strip production lines
