Name: Precision-crafted and High-performance Partitioned Filter Aluminum Foil Full-auto Pleating Machinery for Industrial Filter
Brand: Bengbu Tongchen Automation Technology Co., ltd
SKU: Tc-4892
Price: 6,500.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Power Source: Electric

Machinery Test Report: Provided

Guarantee Time: 1 Year

Dimension: AH,China

Computerized: Yes

Highlight:

industrial filter pleating machinery

aluminum foil filter pleating machine

full-auto partitioned filter machinery

Basic Infomation

Place of Origin: Anhui ,China

Brand Name: Bengbu Tongchen

Certification: CE & ISO

Model Number: Tc-4892

Payment & Shipping Terms

Packaging Details: Wooden Box

Delivery Time: 15-45 Days

Payment Terms: T/T

Supply Ability: Unlimited Supply

Gallery

Precision-crafted and High-performance Partitioned Filter Aluminum Foil Full-auto Pleating Machinery for Industrial Filter

Product Description

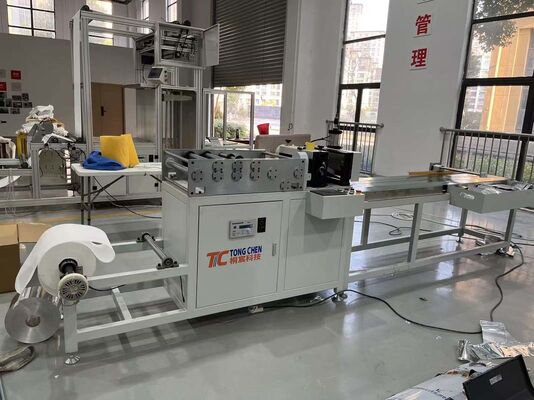

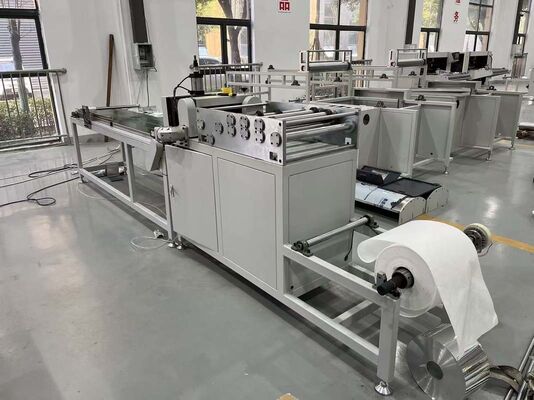

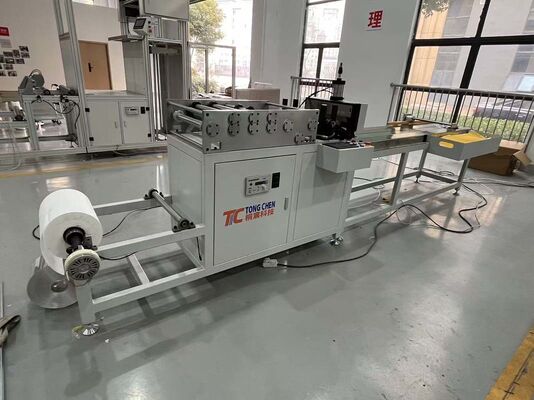

Precision-crafted and High-performance Partitioned Filter Aluminum Foil Full-auto Pleating Machinery

This industrial-grade pleating machinery is engineered for high-volume production of aluminum foil and paper separators. Featuring a precision-painted frame for both accuracy and visual appeal, the ergonomic design facilitates easy roll replacement, adjustment, and operation. The fully optimized process encompasses roll feeding, tension control, flanging, corrugation, sizing, cutting, and automatic discharge—ensuring maximum efficiency, superior quality, and minimal operator fatigue.

Technical Specifications

Material	Aluminum foil (semi-hard, flat) or paper
Maximum Roll Diameter	700 mm
Maximum Material Width	320 mm
Material Thickness	0.04 ± 0.005 mm
Corrugated Edge Width After Pressing	3 mm - 10 mm
Corrugation Height	3 mm - 6 mm (customizable)
Sizing Length	Freely adjustable
Production Speed (Max)	0 - 30 sheets/min
Power Supply	380V, 50Hz
Compressed Air Requirement	0.6 m³/min
Machine Dimensions (L × W × H)	3800 × 950 × 1395 mm
Motor Configuration	Three-phase motor
Mechanical Parts Treatment	Shafts: electroplated hard chrome; Others: decorative nitro-iron and black treatment
Pneumatic Components Brand	Jiahe brand, Harbin bearings
Instrument Installation	Reasonable layout, easy to remove

Key Features

Unwinding Section: Magnetic powder brake with dedicated motor ensures constant tension control, keeping aluminum foil straight for smooth flanging, corrugation, and cutting. Includes air-expandable shaft.
Inlet Tension Section: Adjustable tension rollers avoid uneven tension, ensuring stable production.
Flanging Section: Roller-type flanging continuously flattens and smooths aluminum foil edges to meet width requirements.
Corrugation Pressing Section: Replaceable corrugation rollers can be customized for height requirements; full roller group replacement requires no adjustment.
Sizing & Cutting Section: Pneumatic knives with induction sizing provide high precision cutting of corrugated sheets.

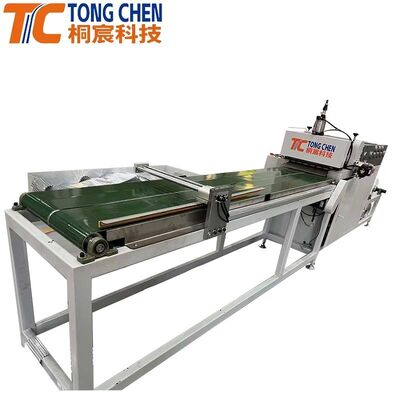

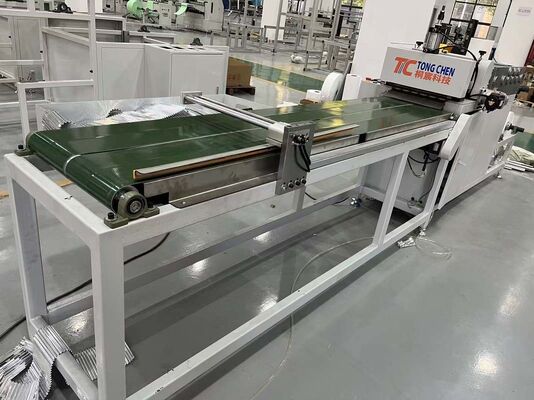

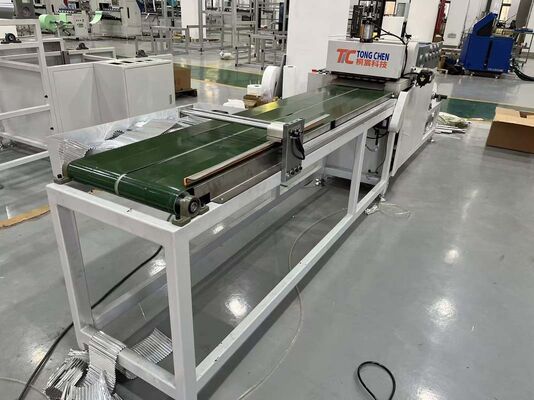

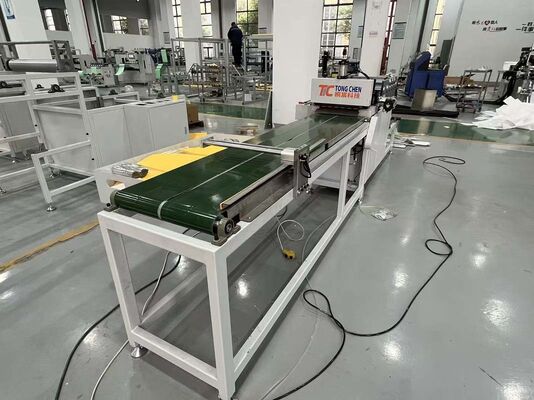

Automatic Discharge Platform: Pneumatic system automatically ejects finished corrugated sheets, simplifying collection and stacking.

Our Advantages

High production efficiency (up to 30 sheets/min)
Fully customizable corrugation height (3-6mm) and sheet length
Stable production due to tension-controlled feeding
Ergonomic design improves operator comfort and safety
Easy maintenance with accessible and replaceable components
Suitable for both aluminum foil and paper materials
Painted frame ensures durability and precision alignment

Product Details

Company Profile

About us: Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD is a specialized firm that integrates research, development, manufacturing, marketing and after-sales service for filtration equipment manufacturing equipment. Our primary product offerings encompass a range of advanced machinery, including but not limited to fully automated reciprocating paper folding production lines, fully automated PP intermittent glue injection and wave reception production lines, fully automated paper frame gluing production lines. For more information or to schedule a demonstration, please contact us. We are committed to providing tailored solutions that meet the unique needs of our clients.

Product Packaging

Frequently Asked Questions

Can you give me a discount price?

Discounts depend on order volume. Larger quantities qualify for greater discounts.

How do you guarantee your quality?

Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.

How about your after-sales service?

We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
