Performance-Optimized Large Pleating Height Full-auto Knife Type Filter Material Pleating Machine for Automotive Industry

1
MOQ
35000
Price
Performance-Optimized Large Pleating Height Full-auto Knife Type Filter Material Pleating Machine for Automotive Industry
Features Gallery Product Description Request A Quote
Features
Specifications
Power Source: Electric
Machinery Test Report: Provided
Guarantee Time: 1 Year
Dimension: 3800*950*1395 Mm (L*W*H)
Computerized: Yes
Product Origin: Bengbu Anhui China
Highlight:

full-auto knife pleating machine

,

large pleating height filter machine

,

automotive air filter pleater
Basic Infomation
Place of Origin: Anhui Bengbu
Brand Name: Bengbu Tongchen
Certification: CE/ISO
Model Number: TCFH-700
Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15-45 Days
Payment Terms: T/T
Supply Ability: Unlimited Supply
Product Description
Performance-Optimized Large Pleating Height Full-auto Knife Type Filter Material Pleating Machine
This high-performance folding system is engineered for large-scale production environments, delivering precision pleating of filter paper with enhanced durability. The integrated system combines automatic feeding, pre-cutting, counting, and folding operations into a seamless continuous process, significantly boosting production efficiency while maintaining consistent product quality. Ideal for automotive filters, air purification systems, and industrial filtration applications.

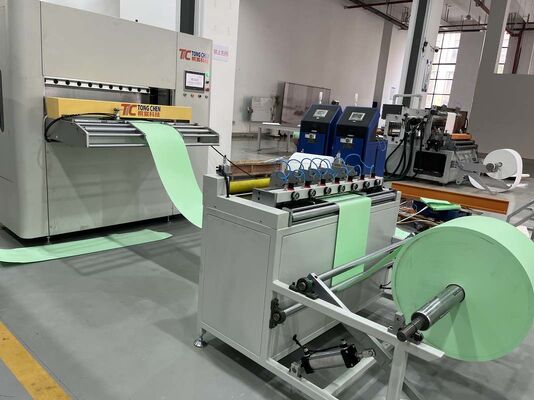

Performance-Optimized Large Pleating Height Full-auto Knife Type Filter Material Pleating Machine for Automotive Industry 0
Technical Specifications
Pre-cutting Paper Conveying Machine
Parameter Specification
Paper Conveying Speed 0.5 m/min - 25 m/min (adjustable)
Adjustable Width of Filter Paper 25 - 1050 mm
Power Supply Voltage 220V / 50Hz
Motor Power 0.55 kW
Working Air Pressure 0.6 Mpa
Machine Weight 250 kg
Dimensions (L × W × H) 1280 × 1100 × 1200 mm
Folding Machine
Parameter Specification
Maximum Product Width 850 mm
Adjustable Folding Height 25-300 mm (depending on material)
Folding Speed 0 - 280 folds/min (stepless adjustable)
Power Supply Voltage 380V / 50Hz
Main Motor Power 1.5 kW
Lifting Motor Power 0.4 kW
Preheating Power 6 kW
Working Air Pressure 0.6 Mpa
Machine Weight 450 KG
Dimensions (L × W × H) 1800 × 1900 × 1650 mm
Key Features
  • Fully Automatic Operation: Integrated paper feeding, pre-cutting, counting, and folding for seamless workflow
  • High Precision Folding: Knife-type mechanism ensures neat and consistent pleats
  • Adjustable Speed and Height: Flexible configuration for different materials and filter specifications
  • Energy-Efficient Heating System: Fast preheating with precise temperature control
  • User-Friendly Control Panel: Simple operation with digital adjustments and safety features
  • Stable Performance: High-quality components ensure long-term durability and minimal maintenance

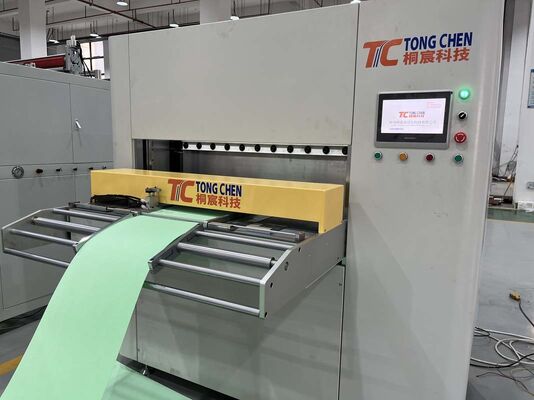

Performance-Optimized Large Pleating Height Full-auto Knife Type Filter Material Pleating Machine for Automotive Industry 1
Applications
  • Automotive Air Filters
  • Cabin Filters
  • Industrial Dust Filters
  • Air Purification Filters
  • HEPA Filter Production Lines
Manufacturer Profile

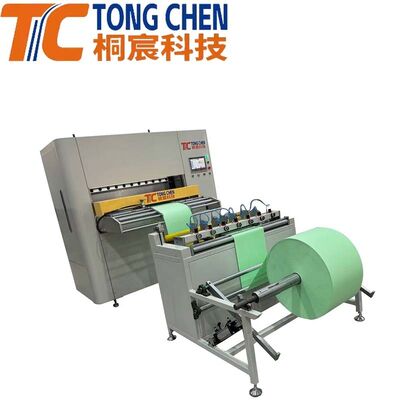

Performance-Optimized Large Pleating Height Full-auto Knife Type Filter Material Pleating Machine for Automotive Industry 2
Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD specializes in the integration of research, development, manufacturing, marketing, and after-sales service for filtration equipment manufacturing. Our comprehensive product portfolio includes fully automated reciprocating paper folding production lines, PP intermittent glue injection and wave reception production lines, and automated paper frame gluing production lines. Contact us for more information or to schedule a demonstration - we're committed to providing tailored solutions that meet your specific requirements.
Production & Packaging

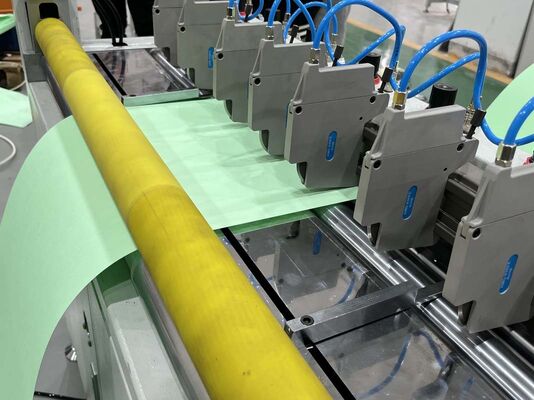

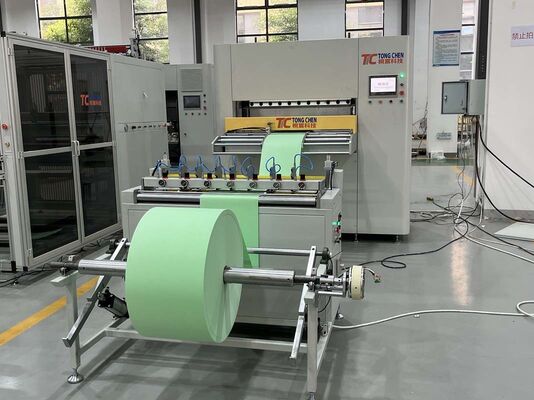

Performance-Optimized Large Pleating Height Full-auto Knife Type Filter Material Pleating Machine for Automotive Industry 3 Performance-Optimized Large Pleating Height Full-auto Knife Type Filter Material Pleating Machine for Automotive Industry 4
Frequently Asked Questions
Can you give me a discount price?
Discounts depend on order volume. Larger quantities qualify for greater discounts.
How do you guarantee your quality?
Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.
How about your after-sales service?
We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
