Fast and Reliable for High-output Production AB Two Component Filter Gluing Machine in High-output Industrial Settings

1
MOQ
5500-8000
Price
Fast and Reliable for High-output Production AB Two Component Filter Gluing Machine in High-output Industrial Settings
Features Gallery Product Description Request A Quote
Features
Specifications
Power Source: Electric
Machinery Test Report: Provided
Guarantee Time: 1 Year
Dimension: 1800*1900*1650mm (L*W*H)
Computerized: Yes
Product Origin: Bengbu Anhui China
Highlight:

AB two component filter gluing machine

,

high-output filter production machine

,

industrial air filter assembly equipment
Basic Infomation
Place of Origin: Anhui Bengbu
Brand Name: Bengbu Tongchen
Model Number: TCFH-700
Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15-45 Days
Payment Terms: T/T
Supply Ability: Unlimited Supply
Product Description

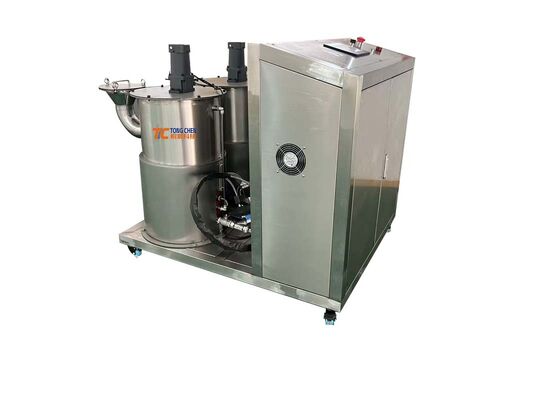

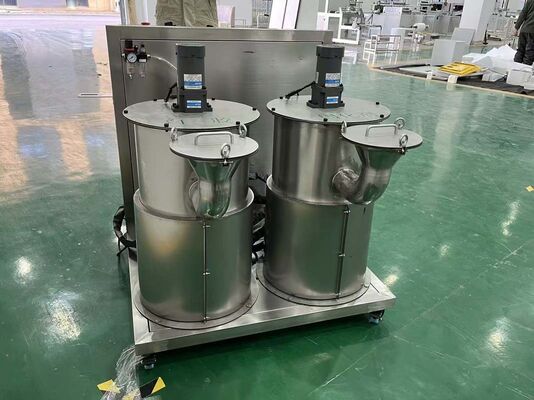

AB Two Component Filter Gluing Machine
Fast and reliable high-output production AB Two Component Filter Gluing Machine designed for industrial settings. Built with durable carbon-steel structure and equipped with Mitsubishi PLC and Weintek touchscreen controls, this machine delivers advanced real-time mixing, intelligent monitoring, and automated cleaning capabilities.
Fast and Reliable for High-output Production AB Two Component Filter Gluing Machine in High-output Industrial Settings 0
Technical Specifications
Item Specification
Structure Carbon steel painted structure
Control System Self-R&D program; Mitsubishi PLC + Weintek touchscreen
Stock Buckets A: 30L carbon steel with heating; B: 30L carbon steel with heating; both with heating function, feeding funnel, inspection glass, full/empty alarms
Mixing Scale Main scale 2:1 (adjustable); overall 10:1-10:10 adjustable; digital input
Measuring Pump A pump: 6CC gear pump; B pump: 3CC gear pump
Glue Supply System Leisa stepper motor/driver + gear pump
Discharging Method Static mixing valve discharge
Air Pressure Requirement 0.5-0.7 MPa
Power Supply 220V / 50Hz
Discharge Speed 1-25 g/s
Discharge Accuracy ±2%
Programs & Functions One-touch cleaning; timed/metered dispensing; anti-solidifying; low-pressure alarm; abnormal fault alarm
Monitoring Features Output counting; timing; operational supervision alarms
Key Features
  • Precise Adjustable Dispensing: Glue output size, dispensing time, and ratio can be adjusted via digital parameters, ensuring accurate dispensing without dripping or leakage.
  • On-Demand Mixing & Maximum Glue Savings: Real-time ratio adjustment enables simultaneous mixing and dispensing, minimizing adhesive waste and improving cost efficiency.
  • Dual-Bucket Storage System: Separate 30L heated A/B buckets prevent premature curing and ensure stable adhesive properties during long-term storage.
  • Wide Ratio Range with Static Mixing: Adjustable mixing ratio from 10:1 to 10:10 with static mixing valves ensures uniform and thorough blending.
  • Comprehensive Alarm System: Includes low air-pressure alarm, material shortage/full alarm, contamination alarm, and abnormal fault warnings.
  • Automatic Liquid Level Detection: Buckets equipped with level switches provide automatic shortage/full alarms and machine auto-stop protection.
  • Smart Monitoring & Productivity Tracking: Features yield counting, individual piece timing, and operational monitoring with alarm alerts.
  • Advanced Auto-clean Functions: Multiple cleaning modes for different adhesive types, plus one-touch auto-cleaning of mixing tubes and valves.
  • Anti-solidifying Program: Prevents adhesive curing inside pipes and valves during temporary stops.
  • Built-in Weighing System: Unique weighing function simplifies ratio adjustments and enhances precision.
  • Digital Speed Control: Electronic dispensing-speed control allows easy fine-tuning of adhesive output volume.
Fast and Reliable for High-output Production AB Two Component Filter Gluing Machine in High-output Industrial Settings 1
Advantages
  • High dispensing accuracy with ±2% error
  • Supports a wide range of adhesives and mix ratios
  • Reduced material waste through real-time ratio mixing
  • Stable, durable carbon steel painted structure
  • Intelligent system with Mitsubishi PLC + Weintek HMI
  • Safe operation with complete protection and alarm systems
  • Easy maintenance with automatic cleaning modes
  • Continuous operation without solidification issues
  • Efficient for batch and continuous production lines
  • Ideal for filter manufacturing, improving efficiency and consistency
Applications
  • Filter manufacturing (air filters, oil filters, industrial filtration products)
  • Automotive filter assembly lines
  • HVAC purification equipment production
  • Adhesive bonding for dual-component glues
  • Electronics potting & sealing processes
  • Plastic parts & hardware bonding
  • Industrial and small-to-medium production operations requiring precise dispensing
Fast and Reliable for High-output Production AB Two Component Filter Gluing Machine in High-output Industrial Settings 2
Company Profile
Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD specializes in research, development, manufacturing, marketing and after-sales service for filtration equipment. Our product range includes fully automated reciprocating paper folding production lines, PP intermittent glue injection and wave reception production lines, and paper frame gluing production lines. Contact us for more information or to schedule a demonstration.
Production Packaging
Fast and Reliable for High-output Production AB Two Component Filter Gluing Machine in High-output Industrial Settings 3 Fast and Reliable for High-output Production AB Two Component Filter Gluing Machine in High-output Industrial Settings 4
Frequently Asked Questions
Can you give me a discount price?
Discounts depend on order volume. Larger quantities qualify for greater discounts.
How do you guarantee your quality?
Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.
How about your after-sales service?
We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
