Semi Automation Filter Paper Pleating Machine for Optimized Workflow Filtration Solutions and Energy-efficient Operations

1
MOQ
8000-10000
Price
Semi Automation Filter Paper Pleating Machine for Optimized Workflow Filtration Solutions and Energy-efficient Operations
Features Gallery Product Description Request A Quote
Features
Specifications
Power Source: Electric
Machinery Test Report: Provided
Guarantee Time: 1 Year
Dimension: 1800*1900*1650mm (L*W*H)
Computerized: Yes
Product Origin: Bengbu Anhui China
Highlight:

semi automation filter pleating machine

,

energy-efficient filter paper pleater

,

air filter production line equipment
Basic Infomation
Place of Origin: Anhui Bengbu
Brand Name: Bengbu Tongchen
Model Number: TCFH-700
Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15-45 Days
Payment Terms: T/T
Supply Ability: Unlimited Supply
Product Description
Semi-Automated Filter Paper Pleating Machine
The sixth-generation fully automatic knife-type pleating production line is engineered for high-speed, precise, and efficient pleating of filter paper. This integrated system combines automatic feeding, pre-cutting, counting, and folding functions into one continuous process, significantly enhancing production efficiency while ensuring consistent product quality. Ideal for automotive filters, air purification filters, and industrial filtration materials.

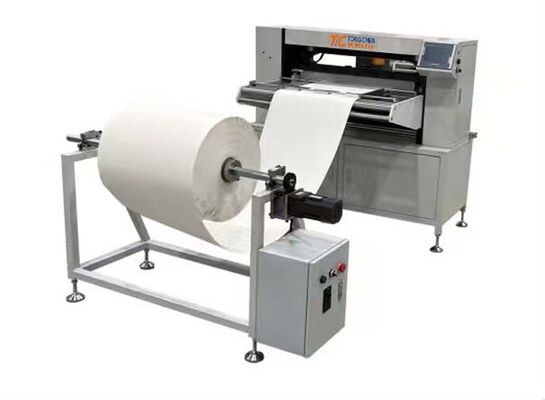

Semi Automation Filter Paper Pleating Machine for Optimized Workflow Filtration Solutions and Energy-efficient Operations 0
Technical Specifications
Folding Machine (Model: 55-850-6 Type)
Paper Conveying Speed 0.5 m/min - 25 m/min (adjustable) Maximum Product Width 850 mm
Adjustable Width of Filter Paper 25 - 850 mm Adjustable Folding Height 5 - 100 mm (depending on material)
Power Supply Voltage 220V / 50Hz Folding Speed 0 - 280 folds/min (stepless adjustable)
Motor Power 0.55 kW Power Supply Voltage 380V / 50Hz
Working Air Pressure 0.6 Mpa Main Motor Power 1.5 kW
Machine Weight 250 kg Lifting Motor Power 0.4 kW
Dimensions (L × W × H) 1280 × 1100 × 1200 mm Preheating Power 6 kW
Temperature Control Range Normal temperature - 260°C
Working Air Pressure 0.6 Mpa
Machine Weight 450 kg
Dimensions (L × W × H) 1800 × 1900 × 1650 mm
Key Features
  • High Cutting Accuracy: Delivers smooth, precise, burr-free cuts with minimal deviation for uniform material dimensions and consistent filter quality
  • Adjustable Cutting Size: Customizable cutting length and width to accommodate various filter types and material sizes
  • Pneumatic-Driven System: Operates with stable 0.6 Mpa air pressure for reliable cutting force, low vibration, and extended component life
  • Compact & User-Friendly Design: Small footprint with simple operation, suitable for both standalone use and integration into automated production lines
  • Durable Structure: Manufactured with high-quality steel components for long-term industrial use under continuous operation

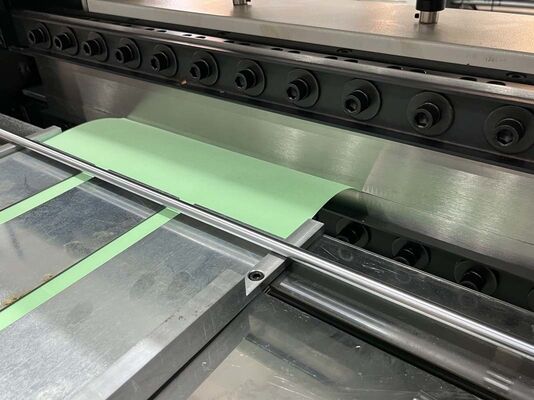

Semi Automation Filter Paper Pleating Machine for Optimized Workflow Filtration Solutions and Energy-efficient Operations 1
Optional Configurations
  • Custom folding height and speed adjustments
  • Integration with glue spraying systems
  • Optional heating and cooling modules
  • Digital counter and PLC touch control panel
Applications
  • Automotive Air Filters
  • Cabin Filters
  • Industrial Dust Filters
  • Air Purification Filters
  • HEPA Filter Production Lines

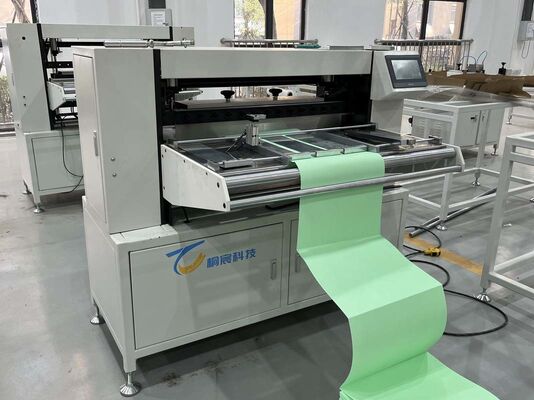

Semi Automation Filter Paper Pleating Machine for Optimized Workflow Filtration Solutions and Energy-efficient Operations 2
Company Profile
Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD specializes in research, development, manufacturing, marketing and after-sales service for filtration equipment. Our product range includes fully automated reciprocating paper folding production lines, PP intermittent glue injection and wave reception production lines, and paper frame gluing production lines. Contact us for more information or to schedule a demonstration.
Production Packaging

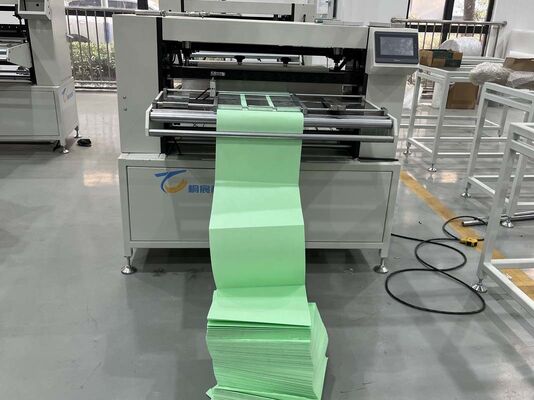

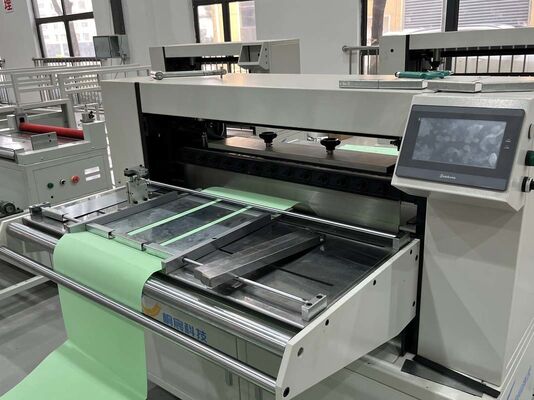

Semi Automation Filter Paper Pleating Machine for Optimized Workflow Filtration Solutions and Energy-efficient Operations 3 Semi Automation Filter Paper Pleating Machine for Optimized Workflow Filtration Solutions and Energy-efficient Operations 4
Frequently Asked Questions
Can you give me a discount price?
Discounts depend on order volume. Larger quantities qualify for greater discounts.
How do you guarantee your quality?
Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.
How about your after-sales service?
We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
