Home /Products/Air Filter Production Line/Advanced and Minimal Downtime Filtration Systems Semi-Auto Cross-Cutting Machine in Continuous Production Environments

Advanced and Minimal Downtime Filtration Systems Semi-Auto Cross-Cutting Machine in Continuous Production Environments

1
MOQ
5000-6500
Price
Advanced and Minimal Downtime Filtration Systems Semi-Auto Cross-Cutting Machine in Continuous Production Environments
Features Gallery Product Description Request A Quote
Features
Specifications
Power Source: Electric
Machinery Test Report: Provided
Guarantee Time: 1 Year
Dimension: 1200*1300*1400mm (L*W*H)
Computerized: Yes
Product Origin: Bengbu Anhui China
Highlight:

semi-auto cross-cutting machine

,

air filter production line equipment

,

continuous production filtration systems
Basic Infomation
Place of Origin: Anhui Bengbu
Brand Name: Bengbu Tongchen
Model Number: TCFH-700
Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15-45 Days
Payment Terms: T/T
Supply Ability: Unlimited Supply
Product Description
Advanced Semi-Auto Cross-Cutting Machine for Continuous Production
This semi-automatic cross-cutting machine is engineered for filter manufacturing operations, delivering minimal downtime and high efficiency in continuous production environments. Ideal for processing air filters, oil filters, fuel filters, and various industrial filtration materials, it features a robust frame, stable pneumatic system, and precise cutting control to ensure smooth operation and reduced production waste.

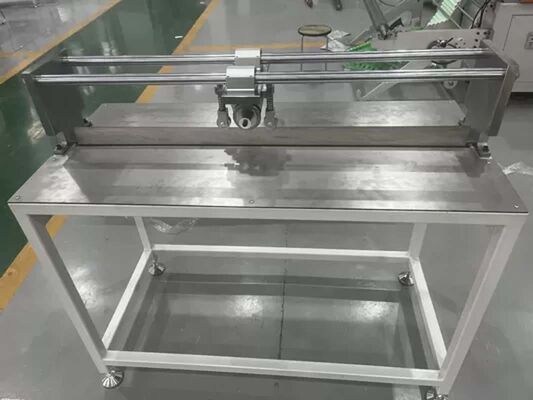

Advanced and Minimal Downtime Filtration Systems Semi-Auto Cross-Cutting Machine in Continuous Production Environments 0
Technical Specifications
Parameter Specification
Maximum trimming length ≤ 800 mm
Maximum cutting width ≤ 800 mm
Working air pressure 0.6 MPa
Power supply voltage 220V / 50Hz
Machine weight 220 kg
Dimensions (L × W × H) 1200 × 1300 × 1400 mm
Key Features
  • High Cutting Accuracy: Delivers smooth, precise, burr-free cuts with minimal deviation for uniform material dimensions and consistent filter quality
  • Adjustable Cutting Size: Customizable cutting length and width to accommodate various filter types and material sizes
  • Pneumatic-Driven System: Operates with stable 0.6 Mpa air pressure for reliable cutting force, low vibration, and extended component life
  • Compact & User-Friendly Design: Small footprint with simple operation, suitable for both standalone use and integration into automated production lines
  • Durable Structure: Manufactured with high-quality steel components for long-term industrial use under continuous operation

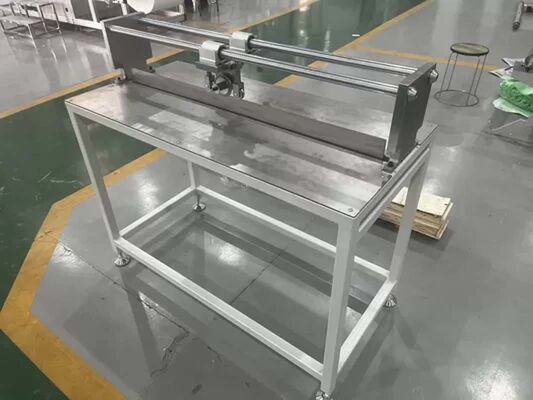

Advanced and Minimal Downtime Filtration Systems Semi-Auto Cross-Cutting Machine in Continuous Production Environments 1
Product Advantages
  • High operational precision and repeatability
  • Low energy consumption with minimal maintenance requirements
  • Easy setup and integration with existing equipment
  • Capable of handling filter paper, nonwoven fabric, fiber sheets, and composite materials
  • Strong adaptability to different production speeds and material types
Applications
The TCHQ-850 cross-cutting machine is widely used across multiple industries requiring precision filter materials:
  • Automotive Industry: Air, oil, and cabin filter media cutting
  • Industrial Filtration: Dust and hydraulic filter paper preparation
  • HVAC Systems: Filter paper trimming for air purification filters
  • Scientific Research & Laboratory Applications: Material sample preparation and small-batch testing

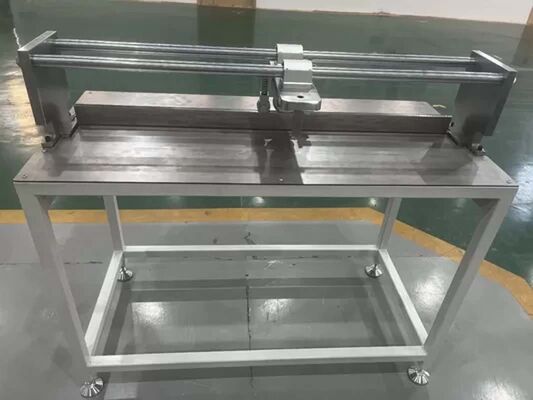

Advanced and Minimal Downtime Filtration Systems Semi-Auto Cross-Cutting Machine in Continuous Production Environments 2
Company Profile
Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD specializes in research, development, manufacturing, marketing and after-sales service for filtration equipment. Our product range includes fully automated reciprocating paper folding production lines, PP intermittent glue injection and wave reception production lines, and paper frame gluing production lines. Contact us for more information or to schedule a demonstration.
Production Packaging

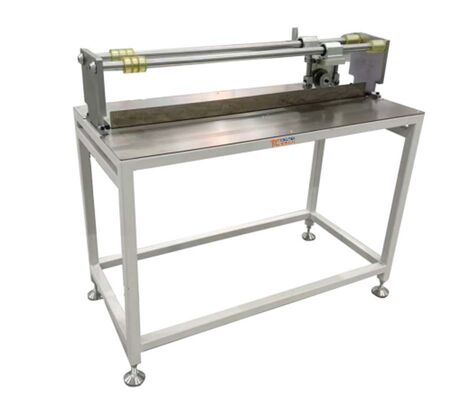

Advanced and Minimal Downtime Filtration Systems Semi-Auto Cross-Cutting Machine in Continuous Production Environments 3 Advanced and Minimal Downtime Filtration Systems Semi-Auto Cross-Cutting Machine in Continuous Production Environments 4
Frequently Asked Questions
Can you give me a discount price?
Discounts depend on order volume. Larger quantities qualify for greater discounts.
How do you guarantee your quality?
Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.
How about your after-sales service?
We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
