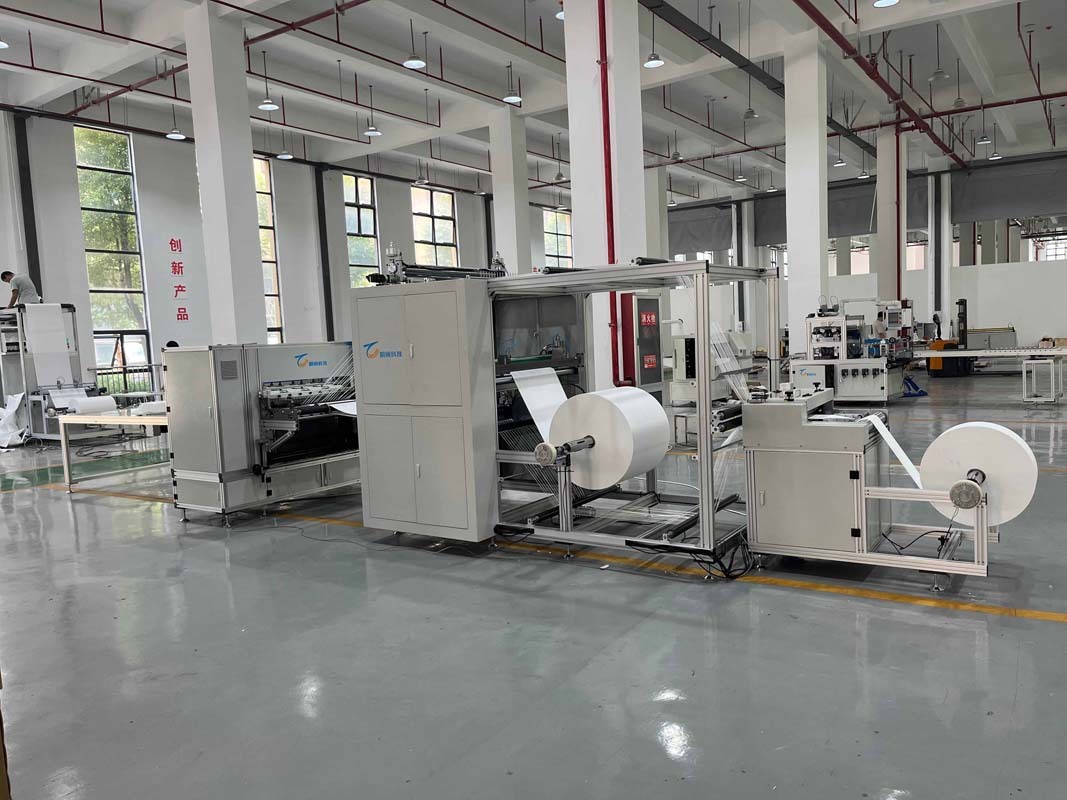

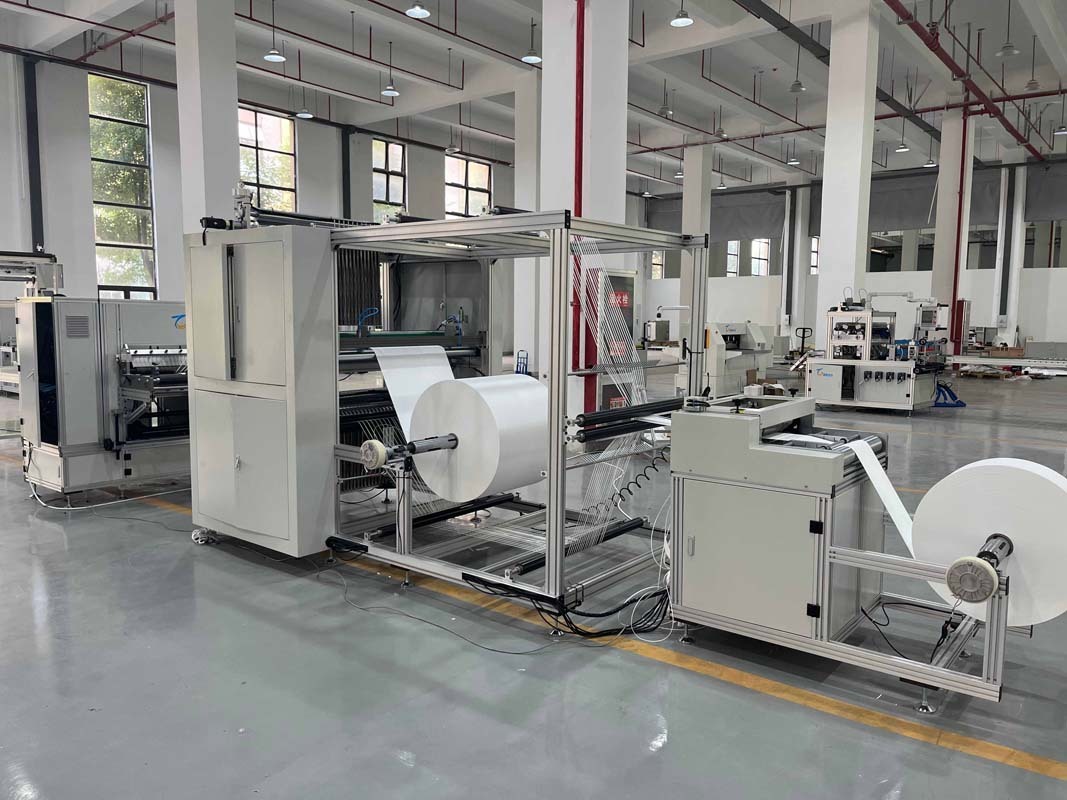

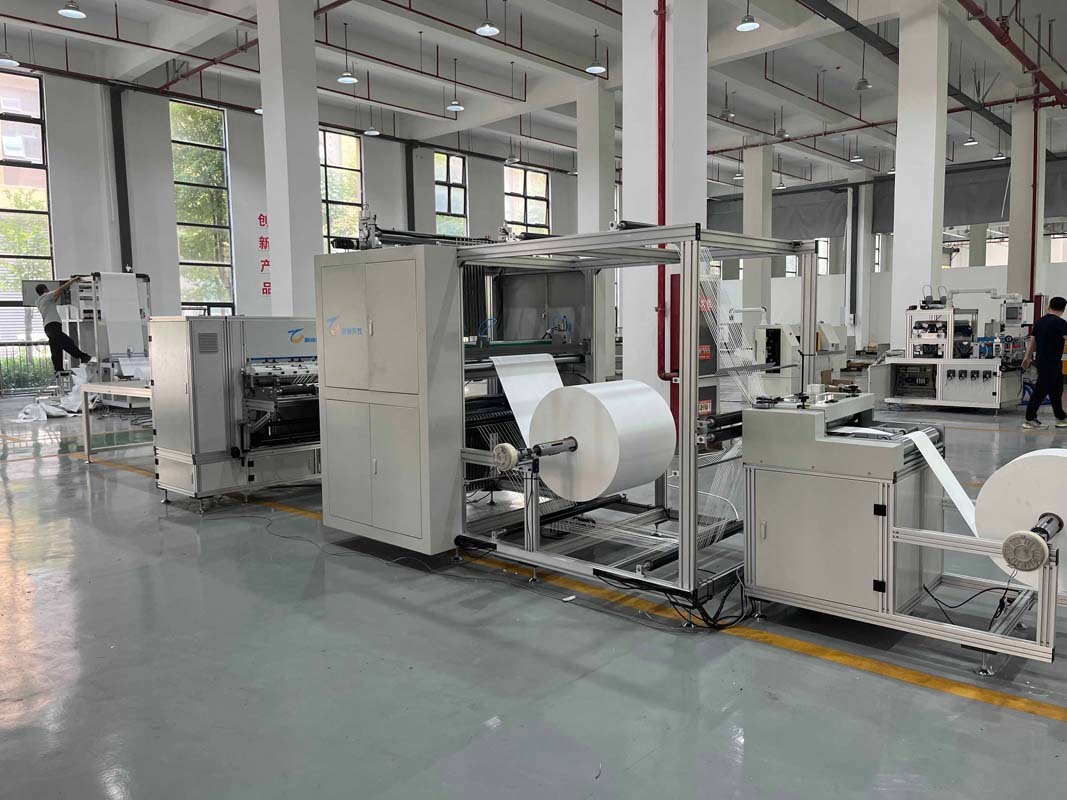

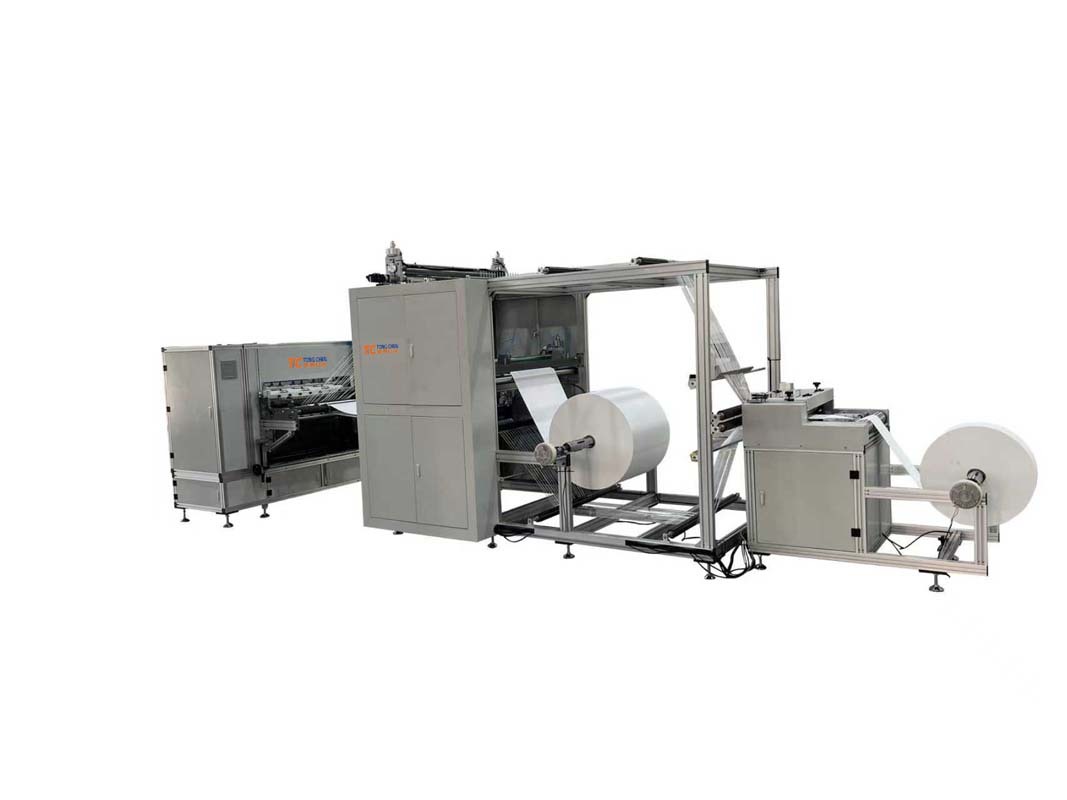

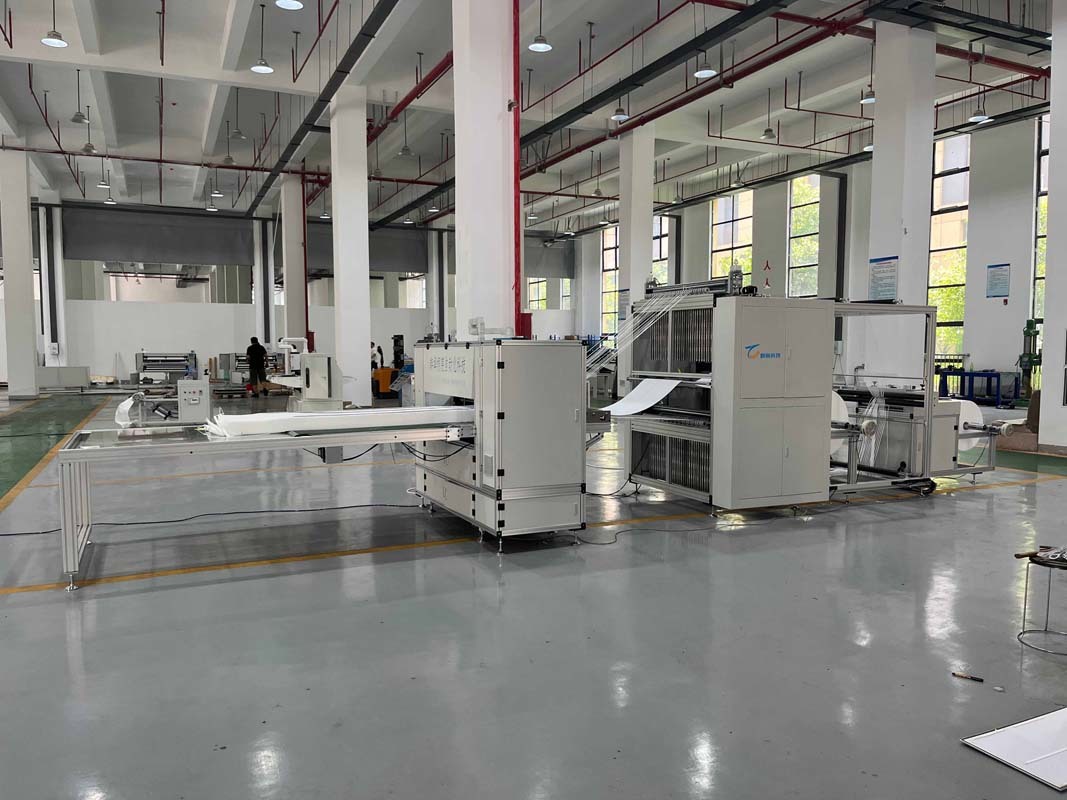

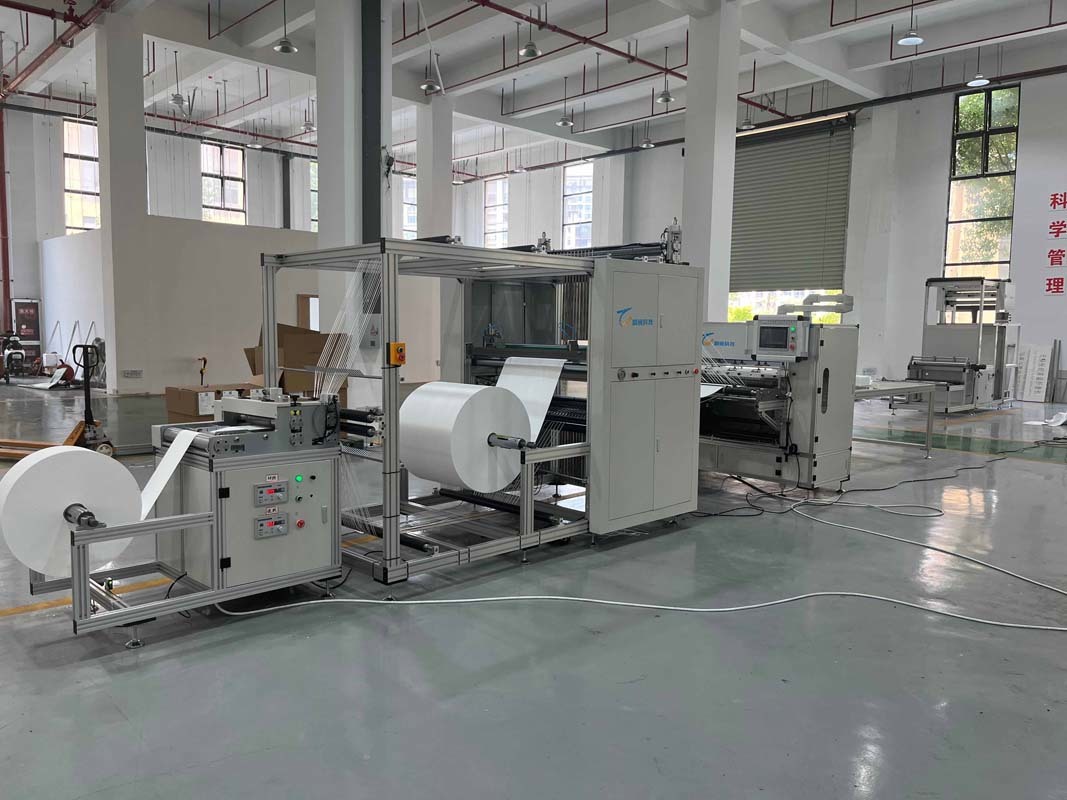

ISO Certified International Ribbon Spacer Machine for Fiberglass Material
Our ISO Certified International Ribbon Spacer Machine for Fiberglass Material integrates cutting-edge automation technology to ensure precision folding, uniform adhesive application, and high-speed production of filter cores used in HEPA/ULPA filters, automotive filtration, and thermal insulation systems.
Product Specifications
Pre-cutting Paper Feeding Machine
| Parameter |
Specification |
| Paper feeding speed |
0.5m/min - 10m/min adjustable |
| Adjustable width |
20-120mm |
| Filter paper thickness |
1.5mm |
| Power supply voltage |
380V/50Hz |
| Motor power |
0.55kw |
| Working air pressure |
0.6Mpa |
| Machine weight |
250kg |
| Dimensions |
1280*1100*1200mm (L*W*H) |
Folding Machine
| Parameter |
Specification |
| Maximum product width |
1000mm |
| Adjustable folding height |
20-120mm |
| Folding speed |
0 - 60 folds/minute (adjustable) |
| Glass fiber line distance |
32mm |
| Power supply voltage |
380V - 50Hz |
| Main motor power |
4*0.75kw |
| Ascending motor power |
0.4KW |
| Working air pressure |
0.6Mpa |
| Machine weight |
450kg |
| Dimensions |
1800*1500*2250mm (L*W*H) |
Main Features
Feeding function with adjustable tension control
Powder brake, air expansion shaft, and tension regulator for precise material handling
Feeding roller and conveying roller with adjustable cylinders at both ends
Customized cutting knife designed for specific applications
Line cutting customized according to line width with automatic upper and lower layer processing
Servo control system for synchronous movement between cutting and folding operations
Automatic synchronization of upper/lower lines and filter paper with folding process
Product Advantages
Precision & Flexibility
Multi-layer compatibility handles up to 7 layers of materials (glass fiber, PP, metal, etc.) with automatic height adjustment. Dual-side processing with simultaneous cutting and folding reduces production time by 30% compared to traditional methods.
Durability & Efficiency
High-temperature resistance processes glass fiber paper stable up to 500°C, ideal for industrial kilns and automotive exhaust systems. Energy-saving design with servo motors and PLC reduces power consumption by 15% (total power: 16kW).
Smart Automation
Touchscreen control for real-time parameter adjustment (speed, fold height, tension) via HMI interface. Quick changeover with modular rollers and pre-set recipes minimizes downtime for multi-product batches.
Applications
Automotive air conditioning filters
Cabin air filters
Industrial and HVAC filters
Household air purifier filters
Nonwoven and pleated filter frames
Any filter requiring precise four-side edge strip removal
Ideal for filtration processing factories, air filter assembly lines, and precision finishing workshops.
Company Profile
Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD is a specialized firm that integrates research, development, manufacturing, marketing and after-sales service for filtration equipment manufacturing equipment. Our primary product offerings encompass a range of advanced machinery, including fully automated reciprocating paper folding production lines, fully automated PP intermittent glue injection and wave reception production lines, and fully automated paper frame gluing production lines. For more information or to schedule a demonstration, please contact us. We are committed to providing tailored solutions that meet the unique needs of our clients.
Production Packaging
Frequently Asked Questions
Can you give me a discount price?
Discounts depend on order volume. Larger quantities qualify for greater discounts.
How do you guarantee your quality?
Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.
How about your after-sales service?
We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
