Industry-Leading Filtration Technology Filter Folding and Gluing Production Line for Automotive Industry Needs

1
MOQ
35000
Price
Industry-Leading Filtration Technology Filter Folding and Gluing Production Line for Automotive Industry Needs
Features Gallery Product Description Request A Quote
Features
Specifications
Power Source: Electric
Machinery Test Report: Provided
Guarantee Time: 1 Year
Dimension: 3800*950*1395 Mm (L*W*H)
Computerized: Yes
Product Origin: Bengbu Anhui China
Highlight:

automotive air filter production line

,

folding and gluing filter machine

,

industrial air filter manufacturing equipment
Basic Infomation
Place of Origin: Anhui Bengbu
Brand Name: Bengbu Tongchen
Certification: CE/ISO
Model Number: TCFH-700
Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15-45 Days
Payment Terms: T/T
Supply Ability: Unlimited Supply
Product Description

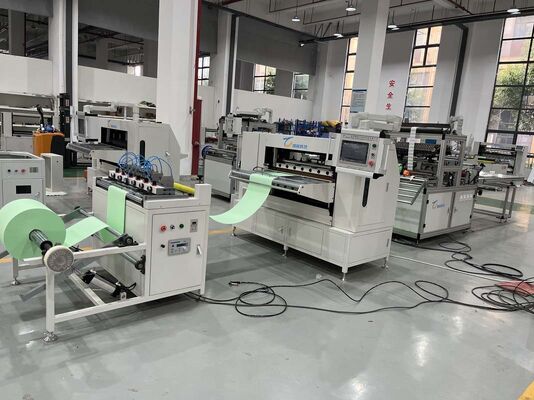

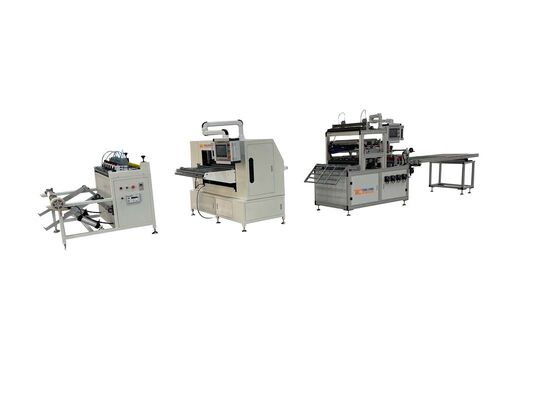

Industry-Leading Filtration Technology Filter Folding and Gluing Production Line
This advanced production line is engineered for automotive, air purification, water filtration, and industrial filtration industries. It delivers high-speed production, consistent glue application, and flexible parameter adjustment to accommodate various filter specifications.
Industry-Leading Filtration Technology Filter Folding and Gluing Production Line for Automotive Industry Needs 0
Product Specifications

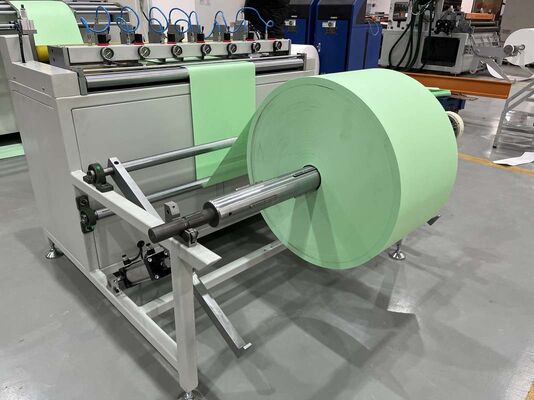

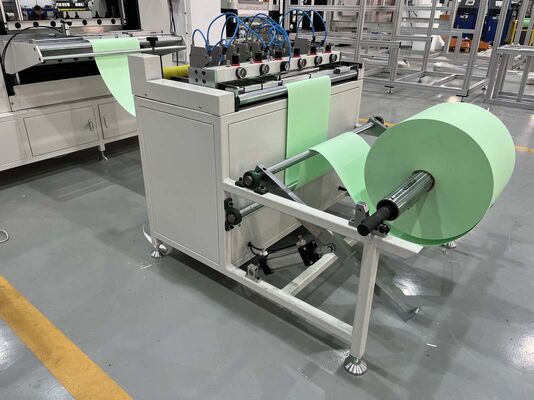

Pre-slitting Paper Conveyor
Parameter Specification
Adjustable paper conveyor speed 0.5 - 12 m/min
Adjustable filter paper width 32 - 800 mm
Power supply voltage 220V / 50Hz
Motor power 0.55 kW
Machine weight 350 kg
Dimensions (L × W × H) 1500 × 1300 × 1100 mm

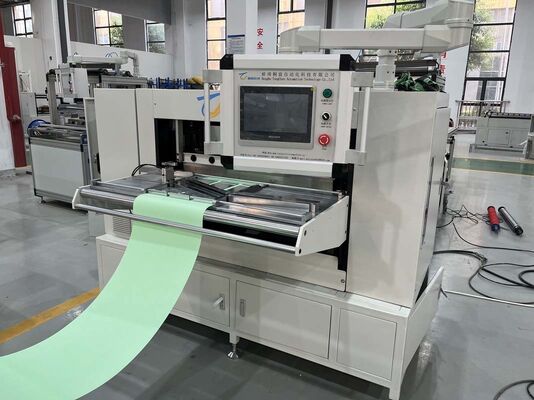

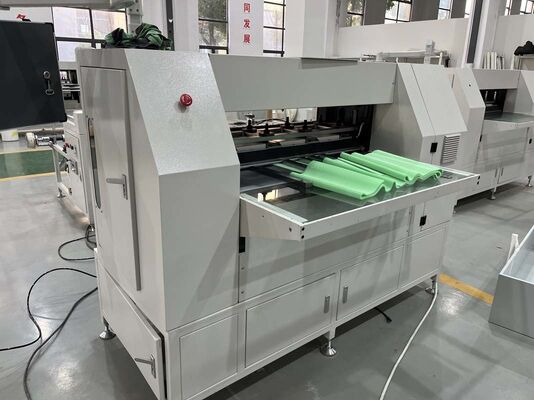

Filter Paper Pleating Machine
Parameter Specification
Maximum product width 800 mm
Adjustable folding height range 6 - 55 mm
Folding speed 0 - 100 folds per minute
Power supply voltage 380V / 50Hz
Motor power 1.1 kW
Preheating power 4 kW
Temperature control range Ambient to 200°C
Operating air pressure 0.6 MPa
Machine weight 650 kg
Dimensions (L × W × H) 1670 × 1720 × 1240 mm

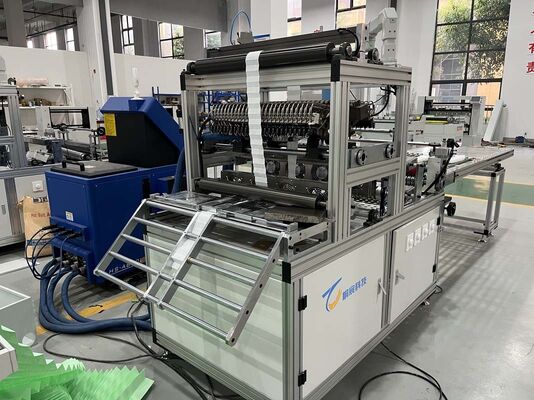

Gluing Machine (Model 55-700)
Parameter Specification
Maximum product width 700 mm
Adjustable folding height range 6 - 55 mm
Production speed 4 - 25 m/min
Glue strip spacing 25.4 mm
Number of glue strips 2 × 26, each controlled by electronic valve
Glue-off control Automatic intermittent glue-off function
Power supply voltage 380V / 50Hz
Total power 13 kW
Operating air pressure 0.6 MPa
Machine weight 500 kg
Glue machine dimensions (L × W × H) 160 × 100 × 130 mm
Main machine dimensions (L × W × H) 4000 × 130 × 160 mm
Main Features
  • Integrated Automation - Combines feeding, pleating, and gluing for continuous and efficient production
  • Computer Touchscreen Control - Intelligent interface for setting and monitoring speed, temperature, and glue parameters
  • Precise Glue Control System - 50kg hot-melt glue unit with dual 26-point spray heads for even, accurate glue application
  • Adjustable Folding Mechanism - Flexible pleating height and width to adapt to different filter materials
  • High-Quality Components - Equipped with Hui Chuan motors, PLCs, and sensors for reliable and precise performance
  • Energy Efficient and Durable - Built with robust materials and advanced control systems to ensure long lifespan and low maintenance
Industry-Leading Filtration Technology Filter Folding and Gluing Production Line for Automotive Industry Needs 1
Applications
  • Automotive Air Filters
  • Cabin Filters
  • Industrial Dust Filters
  • Air Purification Filters
  • HEPA Filter Production Lines
Company Profile
Industry-Leading Filtration Technology Filter Folding and Gluing Production Line for Automotive Industry Needs 2
Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD is a specialized firm that integrates research, development, manufacturing, marketing and after-sales service for filtration equipment manufacturing equipment. Our primary product offerings encompass a range of advanced machinery, including fully automated reciprocating paper folding production lines, fully automated PP intermittent glue injection and wave reception production lines, and fully automated paper frame gluing production lines. For more information or to schedule a demonstration, please contact us. We are committed to providing tailored solutions that meet the unique needs of our clients.
Production Packaging
Industry-Leading Filtration Technology Filter Folding and Gluing Production Line for Automotive Industry Needs 3 Industry-Leading Filtration Technology Filter Folding and Gluing Production Line for Automotive Industry Needs 4
Frequently Asked Questions
Can you give me a discount price?
Discounts depend on order volume. Larger quantities qualify for greater discounts.
How do you guarantee your quality?
Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.
How about your after-sales service?
We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
