PLC Controlled Modular Fiberglass Filter Folding Production Line for Industrial Ventilation Systems With Flexible Customization

1
MOQ
30000-35000
Price
PLC Controlled Modular Fiberglass Filter Folding Production Line for Industrial Ventilation Systems With Flexible Customization
Features Gallery Product Description Request A Quote
Features
Specifications
Power Source: Electric
Machinery Test Report: Provided
Guarantee Time: 1 Year
Dimension: 3800*950*1395 Mm (L*W*H)
Computerized: Yes
Product Origin: Bengbu Anhui China
Highlight:

PLC controlled fiberglass filter production line

,

modular air filter folding machine

,

industrial ventilation system customization
Basic Infomation
Place of Origin: Anhui Bengbu
Brand Name: Bengbu Tongchen
Certification: CE/ISO
Model Number: TCFH-700
Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15-45 Days
Payment Terms: T/T
Supply Ability: Unlimited Supply
Product Description
PLC Controlled Modular Fiberglass Filter Folding Production Line
Our PLC Controlled Modular Fiberglass Filter Folding Production Line specializes in manufacturing high-temperature resistant glass fiber folded filter paper for demanding industrial applications. This advanced equipment integrates cutting-edge automation technology to ensure precision folding, uniform adhesive application, and high-speed production of filter cores used in HEPA/ULPA filters, automotive filtration, and thermal insulation systems.
Pre-cutting Paper Feeding Machine Specifications
Parameter Specification
Paper feeding speed 0.5m/min - 10m/min adjustable
Adjustable width 25 - 350mm
Filter paper thickness 1.5mm
Power supply voltage 380V/50Hz
Motor power 0.55kw
Working air pressure 0.6Mpa
Machine weight 250kg
Dimensions 1280*1100*1200mm (L*W*H)
Folding Machine Specifications
Parameter Specification
Maximum product width 1000mm
Adjustable folding height 20-300mm
Folding speed 0 - 60 folds/minute (adjustable)
Glass fiber line distance 32mm
Power supply voltage 380V - 50Hz
Main motor power 4*0.75kw
Ascending motor power 0.4KW
Working air pressure 0.6Mpa
Machine weight 450kg
Dimensions 1800*1500*2250mm (L*W*H)

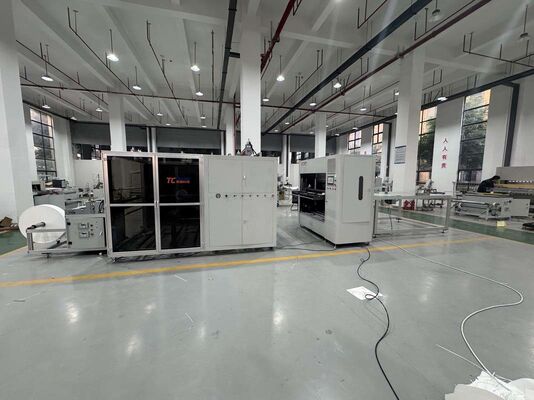

PLC Controlled Modular Fiberglass Filter Folding Production Line for Industrial Ventilation Systems With Flexible Customization 0
Main Features
  • Feeding function with adjustable tension control
  • Powder brake, air expansion shaft, and tension regulator for precise material handling
  • Feeding roller and conveying roller with adjustable cylinders at both ends
  • Customized cutting knife designed for specific applications
  • Line cutting customized according to line width with automatic upper and lower layer processing
  • Servo control system for synchronous movement between cutting and folding operations
  • Automatic synchronization of upper/lower lines and filter paper with folding process

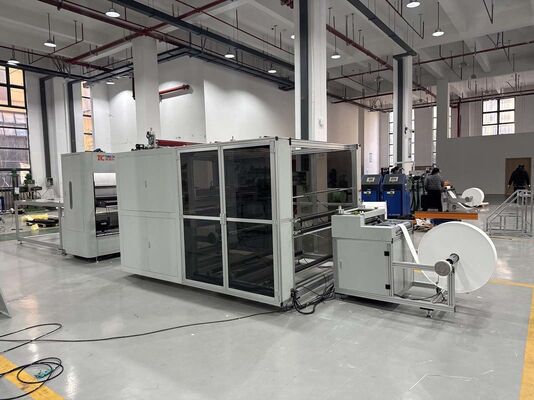

PLC Controlled Modular Fiberglass Filter Folding Production Line for Industrial Ventilation Systems With Flexible Customization 1
Product Advantages
Precision & Flexibility
Multi-layer compatibility handles up to 7 layers of materials (glass fiber, PP, metal, etc.) with automatic height adjustment. Dual-side processing with simultaneous cutting and folding reduces production time by 30% compared to traditional methods.
Durability & Efficiency
High-temperature resistance processes glass fiber paper stable up to 500°C, ideal for industrial kilns and automotive exhaust systems. Energy-saving design with servo motors and PLC reduces power consumption by 15% (total power: 16kW).
Smart Automation
Touchscreen control for real-time parameter adjustment (speed, fold height, tension) via HMI interface. Quick changeover with modular rollers and pre-set recipes minimizes downtime for multi-product batches.
Applications
  • Automotive air conditioning filters
  • Cabin air filters
  • Industrial and HVAC filters
  • Household air purifier filters
  • Nonwoven and pleated filter frames
  • Any filter requiring precise four-side edge strip removal
Ideal for filtration processing factories, air filter assembly lines, and precision finishing workshops.
Company Profile

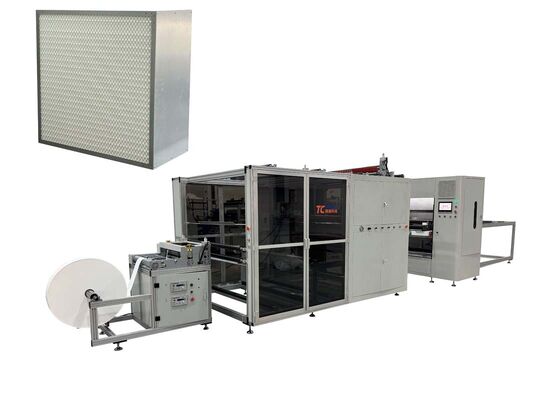

PLC Controlled Modular Fiberglass Filter Folding Production Line for Industrial Ventilation Systems With Flexible Customization 2
Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD is a specialized firm that integrates research, development, manufacturing, marketing and after-sales service for filtration equipment manufacturing equipment. Our primary product offerings encompass a range of advanced machinery, including fully automated reciprocating paper folding production lines, fully automated PP intermittent glue injection and wave reception production lines, and fully automated paper frame gluing production lines. For more information or to schedule a demonstration, please contact us. We are committed to providing tailored solutions that meet the unique needs of our clients.
Production Packaging

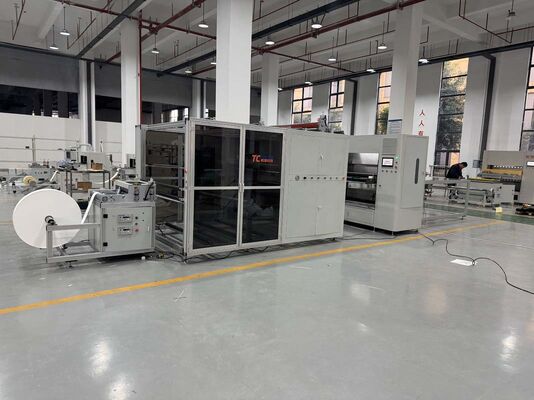

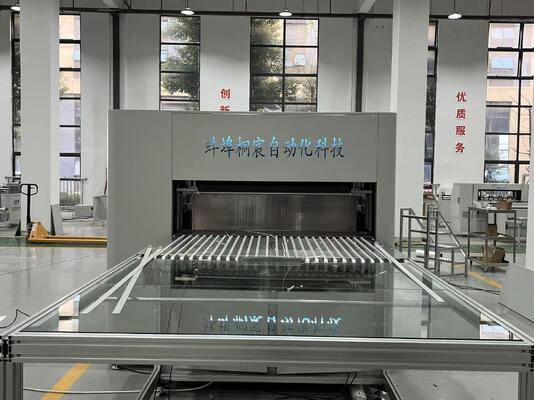

PLC Controlled Modular Fiberglass Filter Folding Production Line for Industrial Ventilation Systems With Flexible Customization 3 PLC Controlled Modular Fiberglass Filter Folding Production Line for Industrial Ventilation Systems With Flexible Customization 4
Frequently Asked Questions
Can you give me a discount price?
Discounts depend on order volume. Larger quantities qualify for greater discounts.
How do you guarantee your quality?
Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.
How about your after-sales service?
We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
