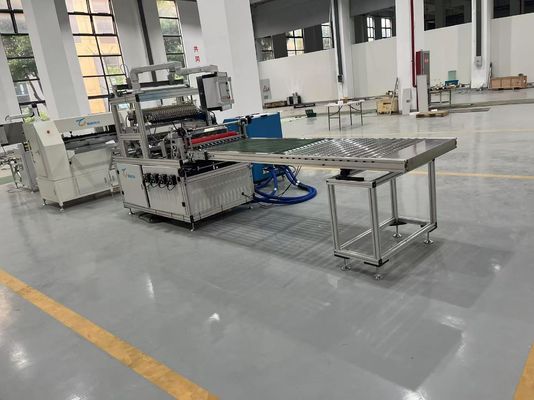

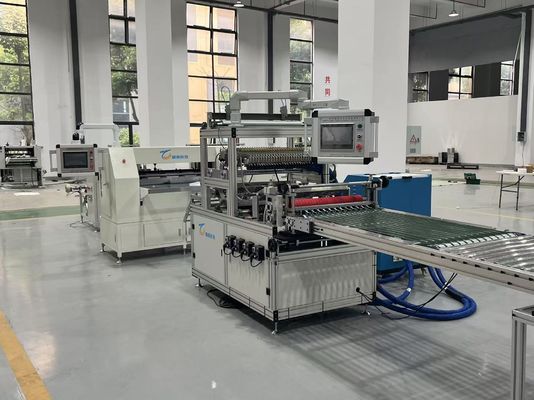

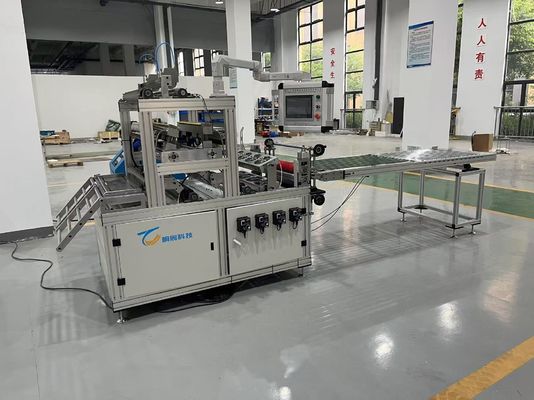

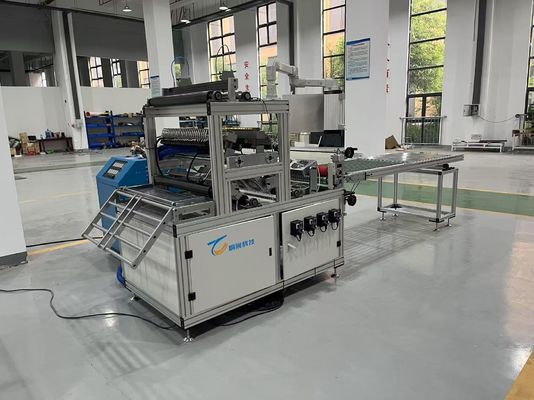

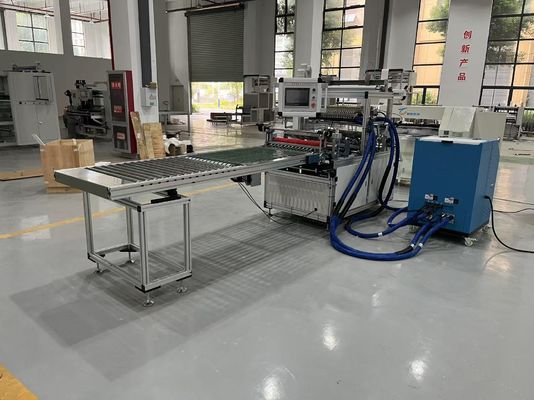

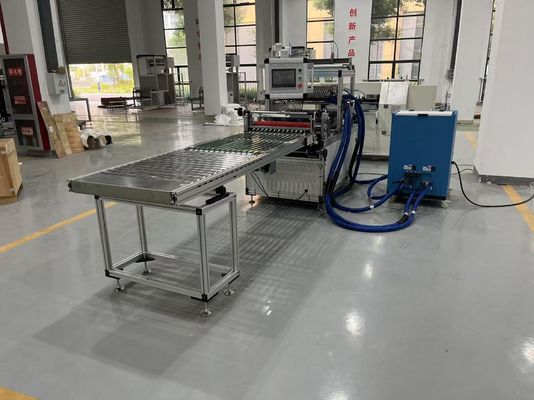

Factory Price HEPA Filter Full-auto PP Gluing Machine

1
MOQ
4500-6500
Price
Factory Price HEPA Filter Full-auto PP Gluing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Power Source: Electric
Machinery Test Report: Provided
Guarantee Time: 1 Year
Dimension: 1250 × 1100 × 1500 Mm (L*W*H)
Computerized: Yes
Product Origin: Bengbu Anhui China
Highlight:

HEPA filter PP gluing machine

,

full-auto air filter production machine

,

factory price PP filter gluing machine
Basic Infomation
Place of Origin: Anhui Bengbu
Brand Name: Bengbu Tongchen
Model Number: TCFH-700
Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15-45 Days
Payment Terms: T/T
Supply Ability: Unlimited Supply
Product Description
Factory Price HEPA Filter Full-auto PP Gluing Machine
High Efficiency Big Capacity HEPA filter Automatic Gluing Machine
The Factory Price HEPA Filter Full-auto PP Gluing Machine is a high-precision, fully automated system designed for continuous folding and gluing of filter materials without partition dividers. It integrates pre-slitting, folding, hot-melt gluing, cooling, and synchronized conveying into one efficient workflow, ensuring consistent product quality and high production efficiency. Developed for industrial air filters, automotive filters, and other pleated filtration products, this production line features intelligent control systems, servo-driven mechanisms, and adjustable folding parameters, making it suitable for diverse filter specifications.
Product Parameters
Item Specification
Hot melt glue machine capacity 30 L
Glue gun configuration 2 * 26-point independent glue spraying components with separate solenoid control
Glue line spacing 25.4 mm
Glue gun control Touchscreen-controlled; adjustable glue volume
Glue spraying functions Continuous, single-sided, double-sided, surface cutting, offset, fold-count-based injection
Glue machine preheating time 30 minutes
Power supply 380V / 50Hz
Total power 15 kW
Main Features
  • High-Speed Production - Production speed adjustable between 2-15 m/min for optimized output.
  • Adjustable Folding Height - Folding height from 12 to 100 mm, controlled via touch screen.
  • Precision Corrugation - Uniform corrugation spacing ensures high flatness and consistent product quality.
  • Advanced Gluing System - 50L hot-melt glue machine with dual 26-point independent glue guns, each nozzle individually controlled.
  • Flexible Glue Application - Supports continuous, single-sided, double-sided, surface-cutting, offset, and fold-count-controlled glue injection.
  • Synchronized Conveying - Servo-controlled conveyor belt ensures consistent spacing between filter materials.
  • Durable Mechanical Structure - Thickened aluminum profiles, chromium-plated shafts, and robust aluminum alloy frame provide long-term stability.
  • Intelligent Touchscreen Control - 10-inch touch screen for adjusting folding speed, glue volume, and process parameters.
Factory Price HEPA Filter Full-auto PP Gluing Machine 0
Product Advantages
  • Improves Filter Appearance - Clean edges enhance the final product quality.
  • Boosts Production Efficiency - Fast trimming speeds reduce manual work and processing time.
  • High Accuracy - Precise blade design minimizes errors and ensures consistent trimming.
  • Compatible with Various Filter Types - AC filters, cabin filters, HEPA frames, nonwoven filters, etc.
  • Cost-Effective - Low power consumption and minimal maintenance requirements.
  • Durable Construction - Heavy-duty build designed for continuous industrial operation.
Applications
  • Automotive air conditioning filters
  • Cabin air filters
  • Industrial and HVAC filters
  • Household air purifier filters
  • Nonwoven and pleated filter frames
  • Any filter requiring precise four-side edge strip removal
Ideal for filtration processing factories, air filter assembly lines, and precision finishing workshops.
Company Profile
Factory Price HEPA Filter Full-auto PP Gluing Machine 1
Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD is a specialized firm that integrates research, development, manufacturing, marketing and after-sales service for filtration equipment manufacturing equipment. Our primary product offerings encompass a range of advanced machinery, including but not limited to fully automated reciprocating paper folding production lines, fully automated PP intermittent glue injection and wave reception production lines, fully automated paper frame gluing production lines. For more information or to schedule a demonstration, please contact us. We are committed to providing tailored solutions that meet the unique needs of our clients.
Production Packaging
Factory Price HEPA Filter Full-auto PP Gluing Machine 2 Factory Price HEPA Filter Full-auto PP Gluing Machine 3
Frequently Asked Questions
Can you give me a discount price?
Discounts depend on order volume. Larger quantities qualify for greater discounts.
How do you guarantee your quality?
Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.
How about your after-sales service?
We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
