ISO Cerfication Fully Automatic Savv Energy CNC Control System Glass Fiber Folding Production

1
MOQ
30000-35000
Price
ISO Cerfication Fully Automatic Savv Energy CNC Control System Glass Fiber Folding Production
Features Gallery Product Description Request A Quote
Features
Specifications
Power Source: Electric
Machinery Test Report: Provided
Guarantee Time: 1 Year
Dimension: 3800*950*1395 Mm (L*W*H)
Computerized: Yes
Product Origin: Bengbu Anhui China
Highlight:

ISO certified CNC control system

,

automatic glass fiber folding machine

,

air filter production line equipment
Basic Infomation
Place of Origin: Anhui Bengbu
Brand Name: Bengbu Tongchen
Certification: CE/ISO
Model Number: TCFH-700
Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15-45 Days
Payment Terms: T/T
Supply Ability: Unlimited Supply
Product Description
Fully Automatic CNC Glass Fiber Folding Production System
ISO-certified production line specializing in high-temperature resistant glass fiber folded filter paper for demanding industrial applications. Our equipment integrates cutting-edge automation technology to ensure precision folding, uniform adhesive application, and high-speed production of filter cores used in HEPA/ULPA filters, automotive filtration, and thermal insulation systems.
Product Specifications

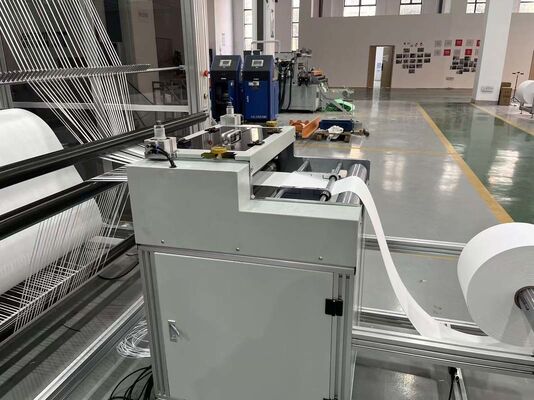

Pre-cutting Paper Feeding Machine
ParameterSpecification
Paper feeding speed0.5m/min - 10m/min adjustable
Adjustable width25 - 350mm
Filter paper thickness1.5mm
Power supply voltage380V/50Hz
Motor power0.55kw
Working air pressure0.6Mpa
Machine weight250kg
Dimensions1280*1100*1200mm (L*W*H)

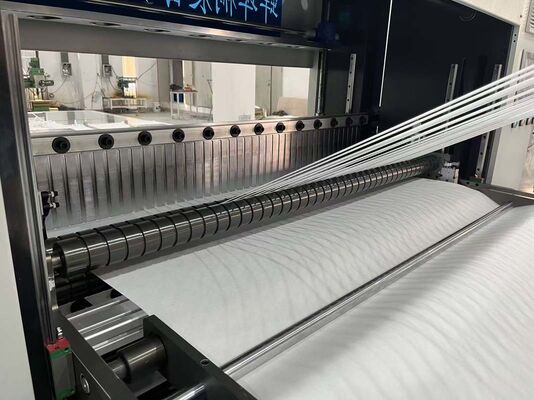

Folding Machine
ParameterSpecification
Maximum product width1000mm
Adjustable folding height20-300mm
Folding speed0 - 60 folds/minute (adjustable)
Glass fiber line distance32mm
Power supply voltage380V - 50Hz
Main motor power4*0.75kw
Ascending motor power0.4KW
Working air pressure0.6Mpa
Machine weight450kg
Dimensions1800*1500*2250mm (L*W*H)
Main Features
  • Feeding function with adjustable tension control
  • Powder brake, air expansion shaft, and tension regulator for precise material handling
  • Feeding roller and conveying roller with adjustable cylinders at both ends
  • Customized cutting knife designed for specific applications
  • Line cutting customized according to line width with automatic upper and lower layer processing
  • Servo control system for synchronous movement between cutting and folding operations
  • Automatic synchronization of upper/lower lines and filter paper with folding process
ISO Cerfication Fully Automatic Savv Energy CNC Control System Glass Fiber Folding Production 0
Product Advantages
Precision & Flexibility
Multi-layer compatibility handles up to 7 layers of materials (glass fiber, PP, metal, etc.) with automatic height adjustment. Dual-side processing with simultaneous cutting and folding reduces production time by 30% compared to traditional methods.
Durability & Efficiency
High-temperature resistance processes glass fiber paper stable up to 500°C, ideal for industrial kilns and automotive exhaust systems. Energy-saving design with servo motors and PLC reduces power consumption by 15% (total power: 16kW).
Smart Automation
Touchscreen control for real-time parameter adjustment (speed, fold height, tension) via HMI interface. Quick changeover with modular rollers and pre-set recipes minimizes downtime for multi-product batches.
Applications
  • Automotive air conditioning filters
  • Cabin air filters
  • Industrial and HVAC filters
  • Household air purifier filters
  • Nonwoven and pleated filter frames
  • Any filter requiring precise four-side edge strip removal
Ideal for filtration processing factories, air filter assembly lines, and precision finishing workshops.
Company Profile
ISO Cerfication Fully Automatic Savv Energy CNC Control System Glass Fiber Folding Production 1
Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD is a specialized firm that integrates research, development, manufacturing, marketing and after-sales service for filtration equipment manufacturing equipment. Our primary product offerings encompass a range of advanced machinery, including fully automated reciprocating paper folding production lines, fully automated PP intermittent glue injection and wave reception production lines, and fully automated paper frame gluing production lines. For more information or to schedule a demonstration, please contact us. We are committed to providing tailored solutions that meet the unique needs of our clients.
Production Packaging
ISO Cerfication Fully Automatic Savv Energy CNC Control System Glass Fiber Folding Production 2 ISO Cerfication Fully Automatic Savv Energy CNC Control System Glass Fiber Folding Production 3
Frequently Asked Questions
Can you give me a discount price?
Discounts depend on order volume. Larger quantities qualify for greater discounts.
How do you guarantee your quality?
Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.
How about your after-sales service?
We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
