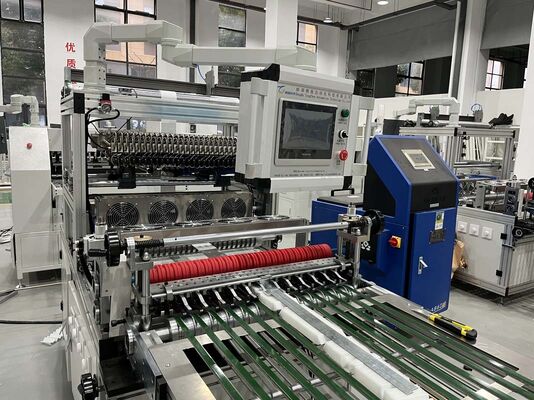

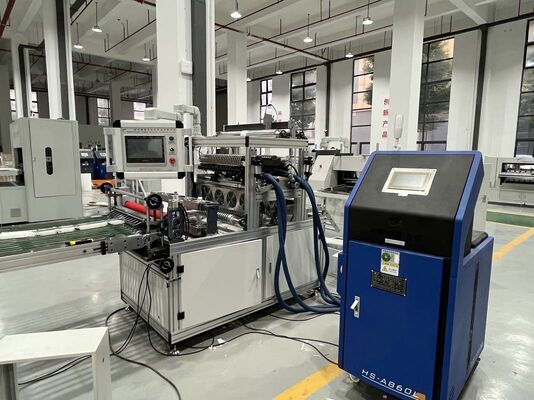

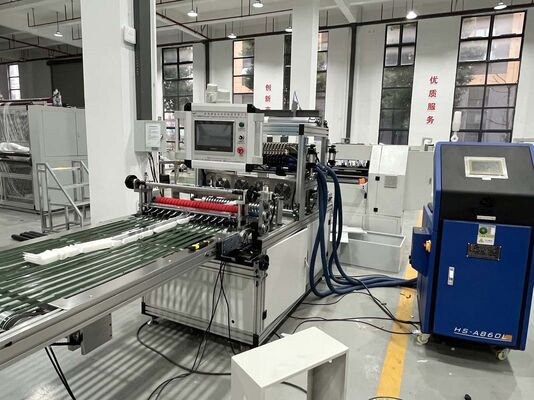

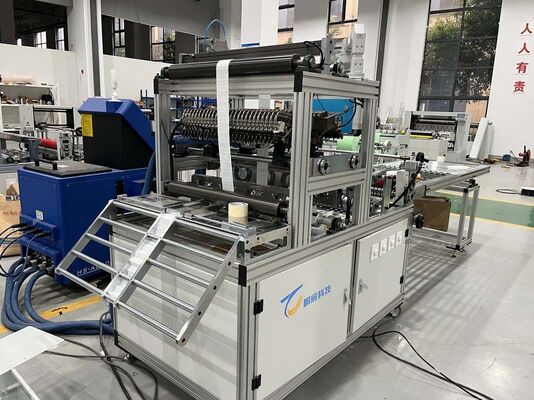

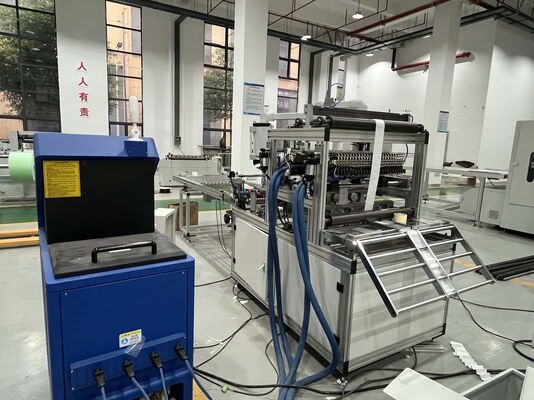

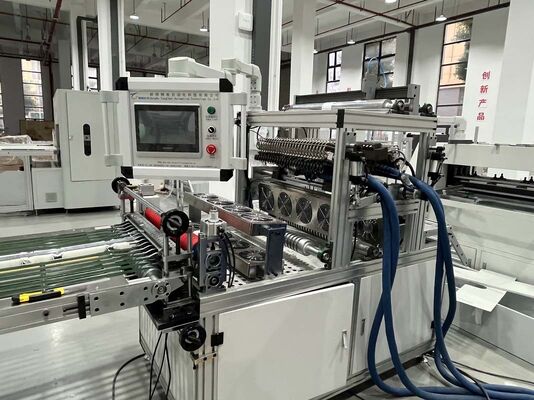

Full-auto Servo Motor Stainless Steel Frame Filter PP Gluing Machine
This high-precision, fully automated system is designed for continuous folding and gluing of filter materials without partition dividers. It integrates pre-slitting, folding, hot-melt gluing, cooling, and synchronized conveying into one efficient workflow, ensuring consistent product quality and high production efficiency. Developed for industrial air filters, automotive filters, and other pleated filtration products, this production line features intelligent control systems, servo-driven mechanisms, and adjustable folding parameters, making it suitable for diverse filter specifications.
Product Parameters
| Item |
Specification |
| Hot melt glue machine capacity |
25 L |
| Glue gun configuration |
2 × 13-point independent glue spraying components with separate solenoid control |
| Glue line spacing |
25.4 mm |
| Glue gun control |
Touchscreen-controlled; adjustable glue volume |
| Glue spraying functions |
Continuous, single-sided, double-sided, surface cutting, offset, fold-count-based injection |
| Glue machine preheating time |
30 minutes |
| Power supply |
380V / 50Hz |
| Total power |
15 kW |
Main Features
High-Speed Production
Production speed adjustable between 2-15 m/min for optimized output.
Adjustable Folding Height
Folding height from 12 to 100 mm, controlled via touch screen.
Precision Corrugation
Uniform corrugation spacing ensures high flatness and consistent product quality.
Advanced Gluing System
50L hot-melt glue machine with dual 26-point independent glue guns, each nozzle individually controlled.
Flexible Glue Application
Supports continuous, single-sided, double-sided, surface-cutting, offset, and fold-count-controlled glue injection.
Synchronized Conveying
Servo-controlled conveyor belt ensures consistent spacing between filter materials.
Durable Mechanical Structure
Thickened aluminum profiles, chromium-plated shafts, and robust aluminum alloy frame provide long-term stability.
Intelligent Touchscreen Control
10-inch touch screen for adjusting folding speed, glue volume, and process parameters.
Product Advantages
- Improves Filter Appearance - Clean edges enhance the final product quality.
- Boosts Production Efficiency - Fast trimming speeds reduce manual work and processing time.
- High Accuracy - Precise blade design minimizes errors and ensures consistent trimming.
- Compatible with Various Filter Types - AC filters, cabin filters, HEPA frames, nonwoven filters, etc.
- Cost-Effective - Low power consumption and minimal maintenance requirements.
- Durable Construction - Heavy-duty build designed for continuous industrial operation.
Applications
- Automotive air conditioning filters
- Cabin air filters
- Industrial and HVAC filters
- Household air purifier filters
- Nonwoven and pleated filter frames
- Any filter requiring precise four-side edge strip removal
Ideal for filtration processing factories, air filter assembly lines, and precision finishing workshops.
Company Profile
Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD is a specialized firm that integrates research, development, manufacturing, marketing and after-sales service for filtration equipment manufacturing equipment. Our primary product offerings encompass a range of advanced machinery, including but not limited to fully automated reciprocating paper folding production lines, fully automated PP intermittent glue injection and wave reception production lines, fully automated paper frame gluing production lines. For more information or to schedule a demonstration, please contact us. We are committed to providing tailored solutions that meet the unique needs of our clients.
Production Packaging
Frequently Asked Questions
Can you give me a discount price?
Discounts depend on order volume. Larger quantities qualify for greater discounts.
How do you guarantee your quality?
Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.
How about your after-sales service?
We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
