Home /Products/Air Filter Production Line/Best Price Oil Filter Fuel Filter Semi-auto High Efficiency Pleating And Gluing Production Line

Best Price Oil Filter Fuel Filter Semi-auto High Efficiency Pleating And Gluing Production Line

1
MOQ
25000
Price
Best Price Oil Filter Fuel Filter Semi-auto High Efficiency Pleating And Gluing Production Line
Features Gallery Product Description Request A Quote
Features
Specifications
Power Source: Electric
Machinery Test Report: Provided
Guarantee Time: 1 Year
Dimension: 3800*950*1395 Mm (L*W*H)
Computerized: Yes
Product Origin: Bengbu Anhui China
Highlight:

semi-auto oil filter production line

,

high efficiency fuel filter machine

,

pleating and gluing air filter line
Basic Infomation
Place of Origin: Anhui Bengbu
Brand Name: Bengbu Tongchen
Certification: CE/ISO
Model Number: TCFH-700
Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15-45 Days
Payment Terms: T/T
Supply Ability: Unlimited Supply
Product Description
Semi-Automatic High Efficiency Pleating and Gluing Production Line
The sixth-generation semi-automatic knife-type pleating production line is engineered for high-speed, precise, and efficient pleating of filter paper. This integrated system combines automatic feeding, pre-cutting, counting, and folding functions into one continuous process, significantly enhancing production efficiency while ensuring consistent product quality. Ideal for automotive filters, air purification filters, and industrial filtration materials.

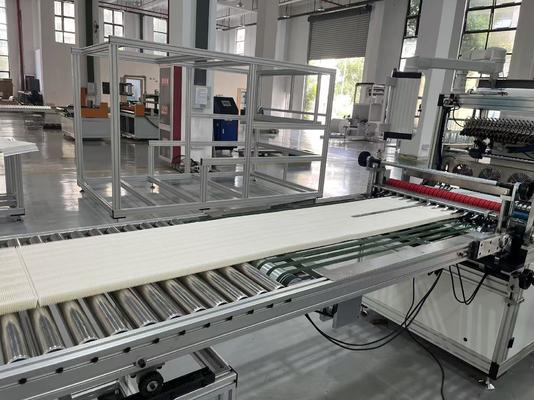

Best Price Oil Filter Fuel Filter Semi-auto High Efficiency Pleating And Gluing Production Line 0
Product Specifications
Pre-cutting Paper Conveying Machine
Parameter Specification
Paper Conveying Speed 0.5 m/min - 25 m/min (adjustable)
Adjustable Width of Filter Paper 25 - 850mm
Power Supply Voltage 220V / 50Hz
Motor Power 0.55 kW
Working Air Pressure 0.6 Mpa
Machine Weight 250 kg
Dimensions (L × W × H) 1280 × 1100 × 1200 mm
Folding Machine
Parameter Specification
Maximum Product Width 850 mm
Adjustable Folding Height 5-100 mm (depending on material)
Folding Speed 0 - 280 folds/min (stepless adjustable)
Power Supply Voltage 380V / 50Hz
Main Motor Power 1.5 kW
Lifting Motor Power 0.4 kW
Preheating Power 6 kW
Working Air Pressure 0.6Mpa
Machine Weight 450KG
Dimensions (L × W × H) 1800 × 1900 × 1650 mm
Gluing Machine
Parameter Specification
Glue machine preheating time 30 minutes
Glue line cooling Multi-axis natural and fan cooling
Glue gun configuration 2 × 26-point independent glue spraying components with separate solenoid control
Glue line spacing 25.4 mm
Glue gun control Touchscreen-controlled; adjustable glue volume
Glue spraying functions Continuous, single-sided, double-sided, surface cutting, offset, fold-count-based injection
Power supply 380V / 50Hz
Main Features
  • Fully Automatic Operation: Integrates paper feeding, pre-cutting, counting, and folding for a smooth workflow
  • High Precision Folding: Knife-type mechanism ensures neat and consistent pleats
  • Adjustable Speed and Height: Flexible for different materials and filter specifications
  • Energy-Efficient Heating System: Fast preheating with precise temperature control
  • User-Friendly Control Panel: Simple operation with digital adjustments and safety design
  • Stable Performance: High-quality components ensure long-term durability and low maintenance

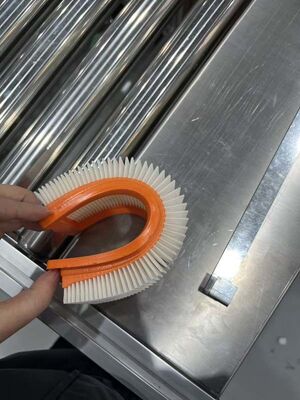

Best Price Oil Filter Fuel Filter Semi-auto High Efficiency Pleating And Gluing Production Line 1
Applications
  • Automotive Air Filters
  • Cabin Filters
  • Industrial Dust Filters
  • Air Purification Filters
  • HEPA Filter Production Lines
Company Profile

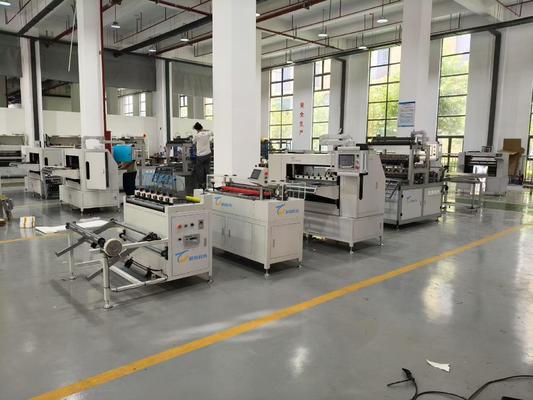

Best Price Oil Filter Fuel Filter Semi-auto High Efficiency Pleating And Gluing Production Line 2
Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD is a specialized firm that integrates research, development, manufacturing, marketing and after-sales service for filtration equipment manufacturing equipment. Our primary product offerings encompass a range of advanced machinery, including fully automated reciprocating paper folding production lines, fully automated PP intermittent glue injection and wave reception production lines, and fully automated paper frame gluing production lines. For more information or to schedule a demonstration, please contact us. We are committed to providing tailored solutions that meet the unique needs of our clients.
Production Packaging

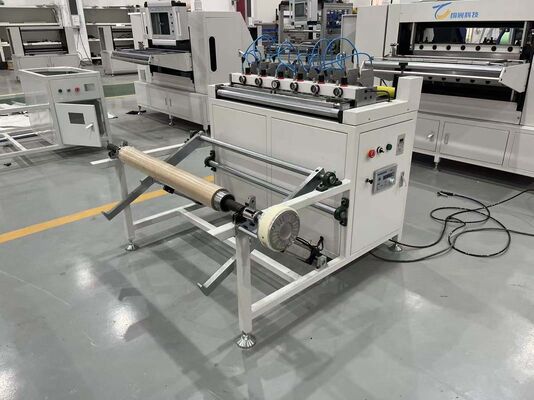

Best Price Oil Filter Fuel Filter Semi-auto High Efficiency Pleating And Gluing Production Line 3 Best Price Oil Filter Fuel Filter Semi-auto High Efficiency Pleating And Gluing Production Line 4
Frequently Asked Questions
Can you give me a discount price?
Discounts depend on order volume. Larger quantities qualify for greater discounts.
How do you guarantee your quality?
Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.
How about your after-sales service?
We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
