Large Air Flow Clapboard HEPA Filter Deep Pleated Aluminum Separator Heap Filter For HVAC Pleating Machine

1
MOQ
5500-7500
Price
Large Air Flow Clapboard HEPA Filter Deep Pleated Aluminum Separator Heap Filter For HVAC Pleating Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Power Source: Electric
Machinery Test Report: Provided
Guarantee Time: 1 Year
Dimension: AH,China
Computerized: Yes
Highlight:

350mm Corrugating Machine

,

HVAC Pleating Machine

,

HVAC Air Filter Production Line
Basic Infomation
Place of Origin: Anhui ,China
Brand Name: Bengbu Tongchen
Certification: CE & ISO
Model Number: Tc-4892
Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15-45 Days
Payment Terms: T/T
Supply Ability: Unlimited Supply
Product Description

Large air Flow Clapboard HEPA Filter&Deep Pleated Aluminum Separator Heap Filter for HVAC Pleating Machine

Product Description

The 350mm Corrugating Machine is a state-of-the-art solution for producing aluminum foil and paper separators. Featuring a painted frame for precision and aesthetic appeal, the ergonomic layout allows easy roll replacement, adjustment, and operation. The process—from roll feeding and tension control to flanging, corrugation, sizing, cutting, and automatic discharge—is fully optimized for efficiency, quality, and minimal operator fatigue.

Product Parameters
Parameter Specification
Material Aluminum foil (semi-hard, flat) or paper
Maximum Roll Diameter 700 mm
Maximum Material Width 320 mm
Material Thickness 0.04 ± 0.005 mm
Corrugated Edge Width After Pressing 3 mm - 10 mm
Corrugation Height 3 mm - 6 mm (customizable)
Sizing Length Freely adjustable
Production Speed (Max) 0 - 30 sheets/min
Power Supply 380V, 50Hz
Compressed Air Requirement 0.6 m³/min
Machine Dimensions (L × W × H) 3800 × 950 × 1395 mm
Motor Configuration Three-phase motor
Mechanical Parts Treatment Shafts: electroplated hard chrome; Others: decorative nitro-iron and black treatment
Pneumatic Components Brand Jiahe brand, Harbin bearings
Instrument Installation Reasonable layout, easy to remove

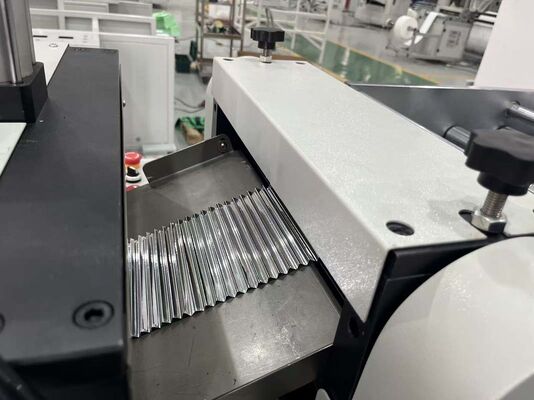

Large Air Flow Clapboard HEPA Filter Deep Pleated Aluminum Separator Heap Filter For HVAC Pleating Machine 0

Product Features
  • Unwinding Section: Magnetic powder brake with dedicated motor ensures constant tension control, keeping aluminum foil straight for smooth flanging, corrugation, and cutting. Includes air-expandable shaft.
  • Inlet Tension Section: Adjustable tension rollers avoid uneven tension, ensuring stable production.
  • Flanging Section: Roller-type flanging continuously flattens and smooths aluminum foil edges to meet width requirements.
  • Corrugation Pressing Section: Replaceable corrugation rollers can be customized for height requirements; full roller group replacement requires no adjustment.
  • Sizing & Cutting Section: Pneumatic knives with induction sizing provide high precision cutting of corrugated sheets.
  • Automatic Discharge Platform: Pneumatic system automatically ejects finished corrugated sheets, simplifying collection and stacking.
Our Advantages
  • Free trial run
  • Person to person support
  • Lifelong after-sales service
  • Special ticket can be issued
Details Images

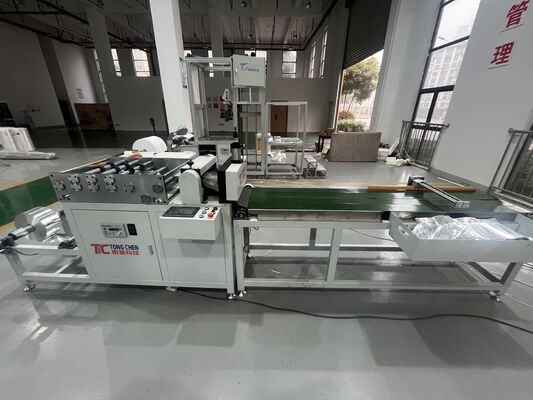

Large Air Flow Clapboard HEPA Filter Deep Pleated Aluminum Separator Heap Filter For HVAC Pleating Machine 1
Company Profile

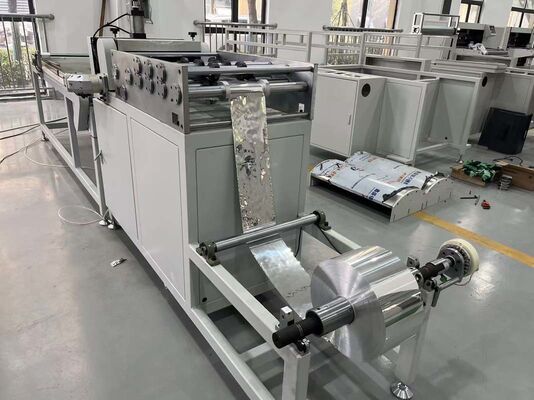

Large Air Flow Clapboard HEPA Filter Deep Pleated Aluminum Separator Heap Filter For HVAC Pleating Machine 2

About us: Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD is a specialized firm that integrates research, development, manufacturing, marketing and after-sales service for filtration equipment manufacturing equipment. Our primary product offerings encompass a range of advanced machinery, including but not limited to fully automated reciprocating paper folding production lines, fully automated PP intermittent glue injection and wave reception production lines, fully automated paper frame gluing production lines. For more information or to schedule a demonstration, please contact us. We are committed to providing tailored solutions that meet the unique needs of our clients.

Product Packaging
Large Air Flow Clapboard HEPA Filter Deep Pleated Aluminum Separator Heap Filter For HVAC Pleating Machine 3 Large Air Flow Clapboard HEPA Filter Deep Pleated Aluminum Separator Heap Filter For HVAC Pleating Machine 4
FAQ
Can you give me a discount price?
Discounts depend on order volume. Larger quantities qualify for greater discounts.
How do you guarantee your quality?
Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.
How about your after-sales service?
We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
