Automatic HEPA air Filter Pleating Machine Without Clapboard Hvac air Filter Making Machine

1
MOQ
30000
Price
Automatic HEPA air Filter Pleating Machine Without Clapboard Hvac air Filter Making Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Power Source: Electric
Machinery Test Report: Provided
Guarantee Time: 1 Year
Dimension: 3800*950*1395 Mm (L*W*H)
Computerized: Yes
Product Origin: Bengbu Anhui China
Highlight:

HEPA air filter pleating machine

,

automatic HVAC filter making machine

,

clapboard-free air filter production line
Basic Infomation
Place of Origin: Anhui Bengbu
Brand Name: Bengbu Tongchen
Certification: CE/ISO
Model Number: TCFH-700
Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15-45 Days
Payment Terms: T/T
Supply Ability: Unlimited Supply
Product Description
Automatic HEPA Air Filter Pleating Machine Without Clapboard HVAC Air Filter Making Machine
The 300 mm Pleat Height HEPA Filter Pleating Machine Production Line is a fully automatic system designed for continuous folding and gluing of HEPA and mini-pleat filter materials. It supports a maximum folding width of 1300mm and a pleat height range of 20-300mm, providing stable operation, uniform spacing, and high production efficiency. This machine is ideal for manufacturing high-efficiency air filters, automotive filters, and other precision pleated filtration products.
Product Specifications
Pre-cutting Paper Feeding Machine
Parameter Specification
Equipment Specifications Maximum folding width 1300 mm
Folding Height 20-300 mm (set via display screen)
Corrugation Flatness Standard Folding height is flat; spacing uniform and consistent
Production Speed 2-15 m/min
Power Controller 1 set
Servo Motors 1.3 kW × 2 sets; 4 kW × 1 set
Servo Motors (Auxiliary) 0.75 kW × 3 sets
High-Precision Reducers 6 sets
Hot-Melt Glue Machine Capacity 50 L × 2 (Foamed-grade gluing machines)
Glue Gun Two sets of 50-point independent glue components with separate solenoid valve control
Glue Line Spacing 25.4 mm

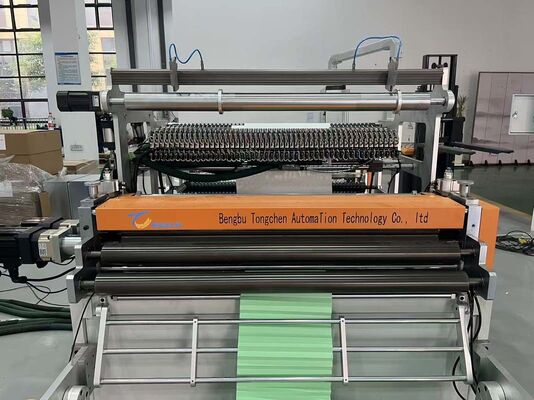

Automatic HEPA air Filter Pleating Machine Without Clapboard Hvac air Filter Making Machine 0
Main Features
  • Wide Folding Capacity: Maximum folding width up to 1300 mm, suitable for large filter materials
  • Adjustable Pleat Height: 20-300 mm, freely set through the control display
  • Stable Corrugation Quality: Ensures uniform spacing and flat pleats
  • Speed Flexibility: Production speed adjustable from 2-15 m/min
  • Multi-Servo Drive System: 6 high-precision reducers and multiple servo motors ensure smooth motion and accuracy
  • Dual Foamed-Grade Glue System: Two 50L glue machines provide stable and efficient glue application
  • Independent Glue Control: Each glue point controlled separately by solenoid valves
  • Precise Glue Line Spacing: 25.4mm spacing ensures even bonding and neat pleats
  • Easy Digital Adjustment: Folding height, speed, and glue volume adjustable via touchscreen interface
  • Durable Mechanical Design: Rigid aluminum frame and precision components ensure long service life

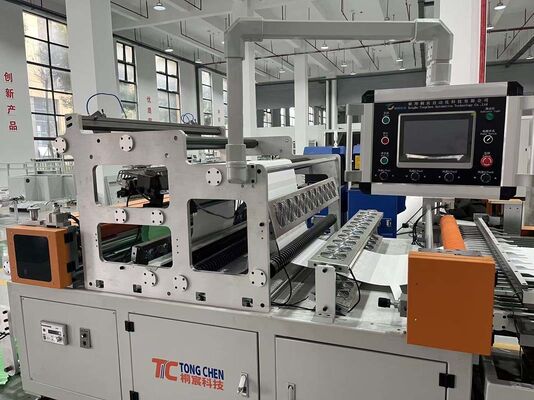

Automatic HEPA air Filter Pleating Machine Without Clapboard Hvac air Filter Making Machine 1
Product Advantages
  • Large pleat height range for flexible filter designs
  • High-precision servo synchronization for consistent folding
  • Dual foamed-grade hot-melt glue systems for stable bonding
  • Smart control interface for easy operation and quick setup
  • Robust and reliable mechanical structure for continuous production
Applications
  • HEPA and mini-pleated filter manufacturing
  • Automotive air and cabin filter production
  • Industrial and HVAC filter material processing
  • High-precision filtration product assembly
Company Profile

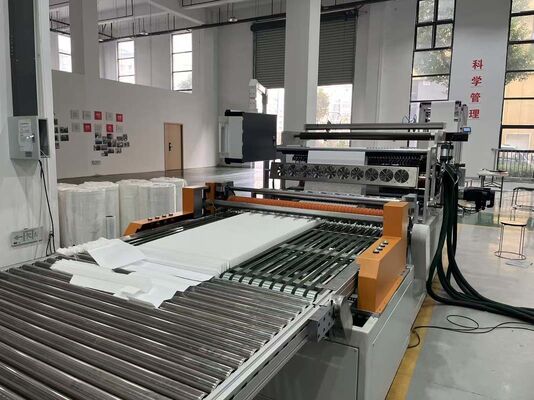

Automatic HEPA air Filter Pleating Machine Without Clapboard Hvac air Filter Making Machine 2
Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD is a specialized firm that integrates research, development, manufacturing, marketing and after-sales service for filtration equipment manufacturing equipment. Our primary product offerings encompass a range of advanced machinery, including fully automated reciprocating paper folding production lines, fully automated PP intermittent glue injection and wave reception production lines, and fully automated paper frame gluing production lines. For more information or to schedule a demonstration, please contact us. We are committed to providing tailored solutions that meet the unique needs of our clients.
Production Packaging

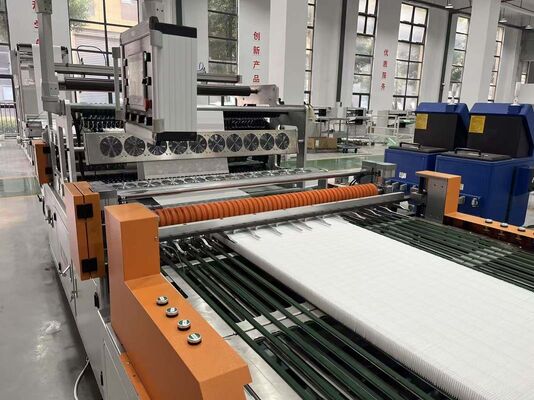

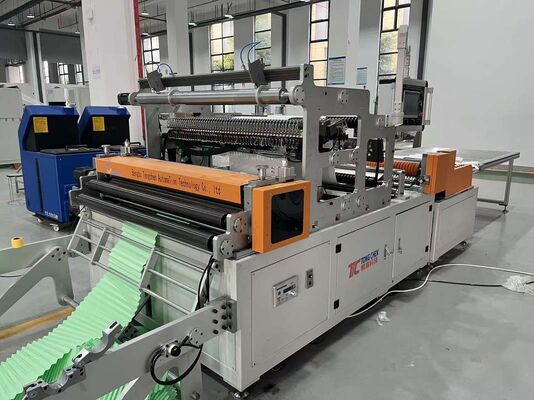

Automatic HEPA air Filter Pleating Machine Without Clapboard Hvac air Filter Making Machine 3 Automatic HEPA air Filter Pleating Machine Without Clapboard Hvac air Filter Making Machine 4
Frequently Asked Questions
Can you give me a discount price?
Discounts depend on order volume. Larger quantities qualify for greater discounts.
How do you guarantee your quality?
Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.
How about your after-sales service?
We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
