HEPA Filter Semi-aoto Servo Motor Prouction Line

1
MOQ
25000
Price
HEPA Filter Semi-aoto Servo Motor Prouction Line
Features Gallery Product Description Request A Quote
Features
Specifications
Power Source: Electric
Machinery Test Report: Provided
Guarantee Time: 1 Year
Dimension: 3800*950*1395 Mm (L*W*H)
Computerized: Yes
Product Origin: Bengbu Anhui China
Highlight:

HEPA filter production line with servo motor

,

semi-auto air filter manufacturing line

,

servo motor HEPA filter assembly line
Basic Infomation
Place of Origin: Anhui Bengbu
Brand Name: Bengbu Tongchen
Certification: CE/ISO
Model Number: TCFH-700
Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15-45 Days
Payment Terms: T/T
Supply Ability: Unlimited Supply
Product Description
HEPA Filter Semi-Auto Servo Motor Production Line

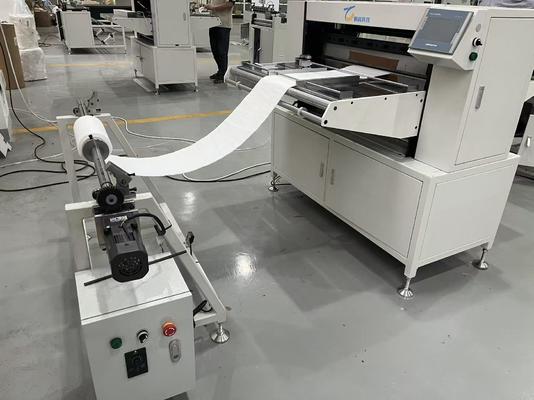

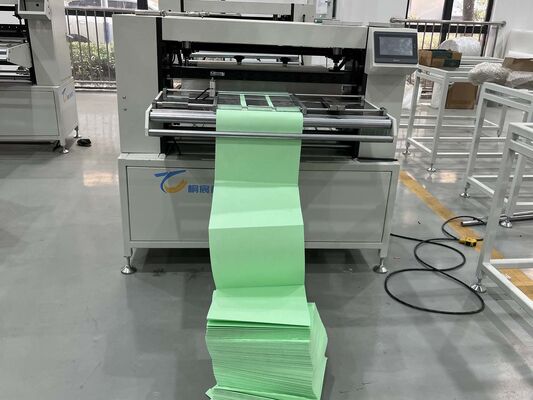

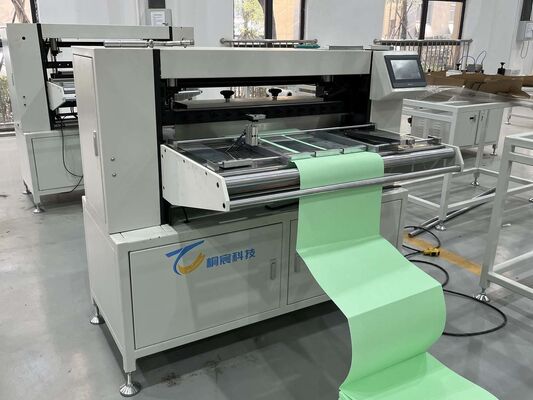

The sixth-generation fully automatic knife-type pleating production line is designed for high-speed, precise, and efficient pleating of filter paper. It integrates automatic feeding, pre-cutting, counting, and folding functions into one continuous process, significantly improving production efficiency and ensuring consistent product quality. This machine is widely used in automotive filters, air purification filters, and industrial filtration materials.
Product Specifications
Pre-cutting Paper Conveying Machine
Parameter Specification
Paper Conveying Speed 0.5 m/min - 25 m/min (adjustable)
Adjustable Width of Filter Paper 25 - 850mm
Power Supply Voltage 220V / 50Hz
Motor Power 0.55 kW
Working Air Pressure 0.6 Mpa
Machine Weight 250 kg
Dimensions (L × W × H) 1280 × 1100 × 1200 mm
Folding Machine
Parameter Specification
Maximum Product Width 850 mm
Adjustable Folding Height 5-100 mm (depending on material)
Folding Speed 0 - 280 folds/min (stepless adjustable)
Power Supply Voltage 380V / 50Hz
Main Motor Power 1.5 kW
Lifting Motor Power 0.4 kW
Preheating Power 6 kW
Working Air Pressure 0.6Mpa
Machine Weight 450KG
Dimensions (L × W × H) 1800 × 1900 × 1650 mm
Main Features
  • Fully Automatic Operation: Integrates paper feeding, pre-cutting, counting, and folding for a smooth workflow
  • High Precision Folding: Knife-type mechanism ensures neat and consistent pleats
  • Adjustable Speed and Height: Flexible for different materials and filter specifications
  • Energy-Efficient Heating System: Fast preheating with precise temperature control
  • User-Friendly Control Panel: Simple operation with digital adjustments and safety design
  • Stable Performance: High-quality components ensure long-term durability and low maintenance
HEPA Filter Semi-aoto Servo Motor Prouction Line 0
Applications
  • Automotive Air Filters
  • Cabin Filters
  • Industrial Dust Filters
  • Air Purification Filters
  • HEPA Filter Production Lines
Company Profile
HEPA Filter Semi-aoto Servo Motor Prouction Line 1
Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD is a specialized firm that integrates research, development, manufacturing, marketing and after-sales service for filtration equipment manufacturing equipment. Our primary product offerings encompass a range of advanced machinery, including fully automated reciprocating paper folding production lines, fully automated PP intermittent glue injection and wave reception production lines, and fully automated paper frame gluing production lines. For more information or to schedule a demonstration, please contact us. We are committed to providing tailored solutions that meet the unique needs of our clients.

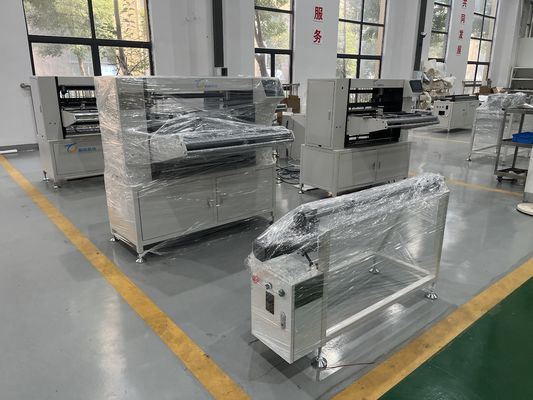

Production Packaging
HEPA Filter Semi-aoto Servo Motor Prouction Line 2 HEPA Filter Semi-aoto Servo Motor Prouction Line 3
Frequently Asked Questions
Can you give me a discount price?
Discounts depend on order volume. Larger quantities qualify for greater discounts.
How do you guarantee your quality?
Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.
How about your after-sales service?
We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
