Name: Full-auto Knife Paper Pleating And Glue Production Line Air Filter Production Line
Brand: Bengbu Tongchen Automation Technology Co., ltd
SKU: TC-5569
Price: 22,500.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Computerized: Yes

Guarantee Time: 1 Year

Precise Glue Control System: 50kg Hot-melt Glue Unit With Dual 26-point Spray Heads For Even, Accurate Glue Application

Adjustable Folding Mechanism: Flexible Pleating Height And Width To Adapt To Different Filter Materials

Highlight:

full-auto knife paper pleating machine

air filter glue production line

industrial air filter manufacturing equipment

Basic Infomation

Place of Origin: Anhui,China

Brand Name: TONGCHEN

Certification: ISO

Model Number: TC-5569

Payment & Shipping Terms

Packaging Details: Wooden Box

Delivery Time: 30

Payment Terms: T/T

Supply Ability: 15

Gallery

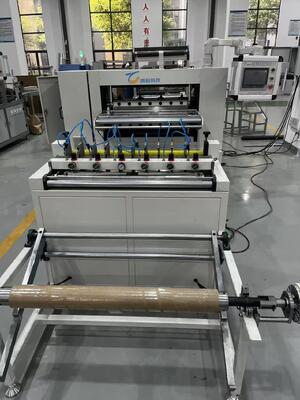

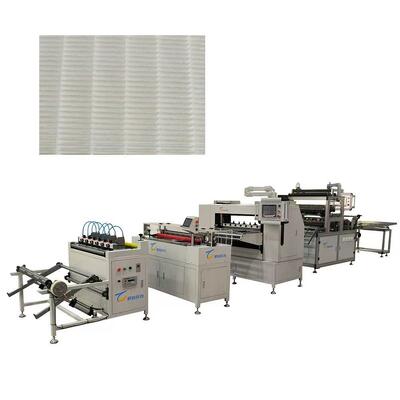

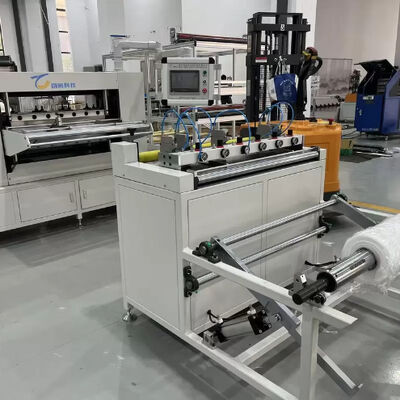

Full-auto Knife Paper Pleating And Glue Production Line Air Filter Production Line

Product Description

Full-auto Knife Paper Pleating And Glue Production Line Air Filter Production Line

The Full-auto Knife Paper Pleating And Glue Production Line Air Filter Production Line is an advanced and fully automated system designed for the production of pleated polypropylene (PP) filter materials. It integrates filter paper feeding, pre-slitting, pleating, and gluing processes into one continuous workflow, achieving high precision, stable operation, and efficient output. It is ideal for automotive, air purification, water filtration, and industrial filtration industries. The system is engineered for high-speed production, consistent glue application, and flexible parameter adjustment to accommodate various filter specifications.

Technical Specifications

Pre-slitting Paper Conveyor	Filter Paper Folder	Gluing Machine (Model 55-700)
Adjustable paper conveyor speed: 0.5 - 12 m/min Adjustable filter paper width: 32 - 800 mm Power supply voltage: 220V / 50Hz Motor power: 0.55 kW Machine weight: 350 kg Dimensions (L × W × H): 1500 × 1300 × 1100 mm	Maximum product width: 800 mm Adjustable folding height range: 6 - 55 mm Folding speed: 0 - 100 folds per minute Power supply voltage: 380V / 50Hz Motor power: 1.1 kW Preheating power: 4 kW Temperature control range: Ambient to 200°C Operating air pressure: 0.6 MPa Machine weight: 650 kg Dimensions (L × W × H): 1670 × 1720 × 1240 mm	Maximum product width: 700 mm Adjustable folding height range: 6 - 55 mm Production speed: 4 - 25 m/min Glue strip spacing: 25.4 mm Number of glue strips: 2 × 26, each controlled by electronic valve Glue-off control: Automatic intermittent glue-off function Power supply voltage: 380V / 50Hz Total power: 13 kW Operating air pressure: 0.6 MPa Machine weight: 500 kg Glue machine dimensions (L × W × H): 160 × 100 × 130 mm Main machine dimensions (L × W × H): 4000 × 130 × 160 mm

Working Principle

The production line starts by feeding and pre-slitting the PP filter material, followed by pleating (folding) to form a uniform wave structure. The gluing system, composed of dual 26-point spray heads, applies hot-melt adhesive strips with high accuracy. All major functions—speed, glue volume, and temperature—are controlled via a touchscreen PLC interface, ensuring synchronized operation of each component.

The pleating mechanism can move vertically and horizontally, enabling adjustment for various filter sizes and thicknesses. This flexible design allows seamless switching between different product specifications with minimal downtime.

Applications

PP filter cartridge manufacturing
Air filter and water filter production
Industrial and environmental filtration equipment
Automotive air purification systems

Packaging & Delivery

Selling Units: Single item

Manufacturer Profile

Bengbu Tongchen Automation Technology Equipment Co., Ltd. is located in Bengbu, China—an important transportation hub and industrial base. Our company specializes in the development, design, and production of filter manufacturing equipment, providing advanced, practical, and efficient solutions that meet both domestic trends and international standards.

Product Range

Paper folding equipment and rotating machines
Diesel engines and large air filter production equipment
Partitionless and partitioned filter production equipment
Pleating machines and glass fiber strip production lines

We prioritize product quality and service to enhance your brand's competitiveness in the global market. Tongchen Technology is committed to becoming your most reliable mechanical solution provider and long-term business partner.
