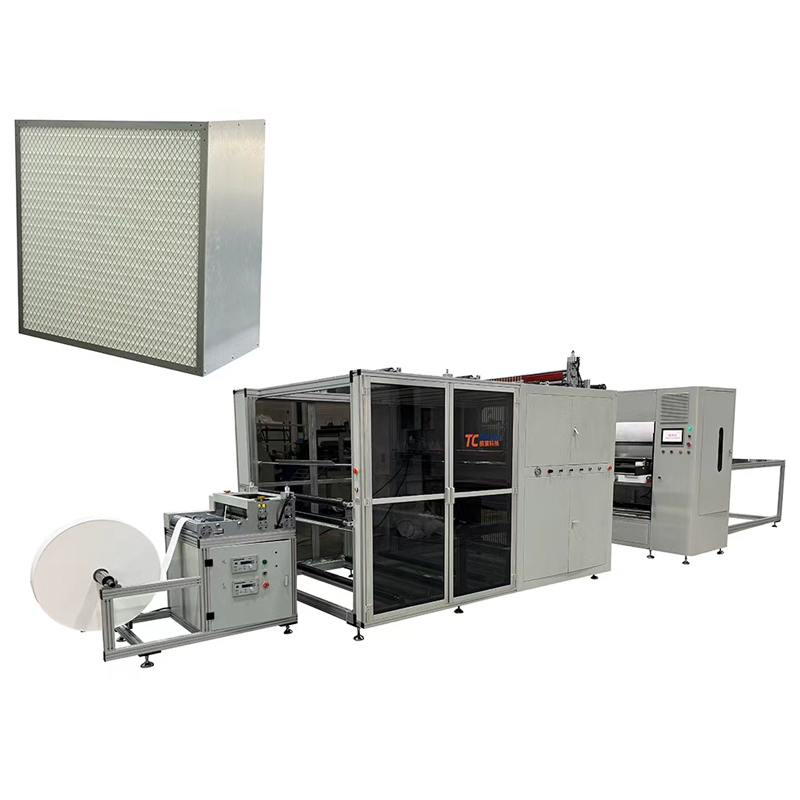

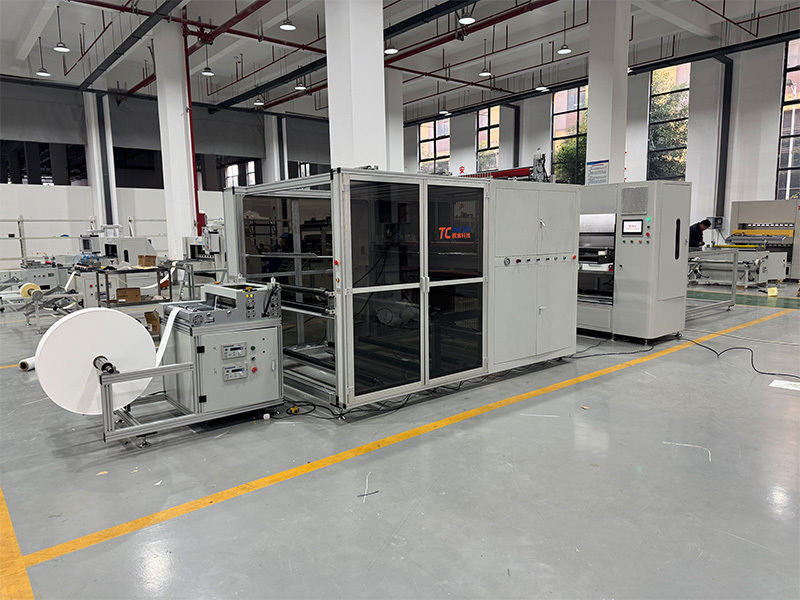

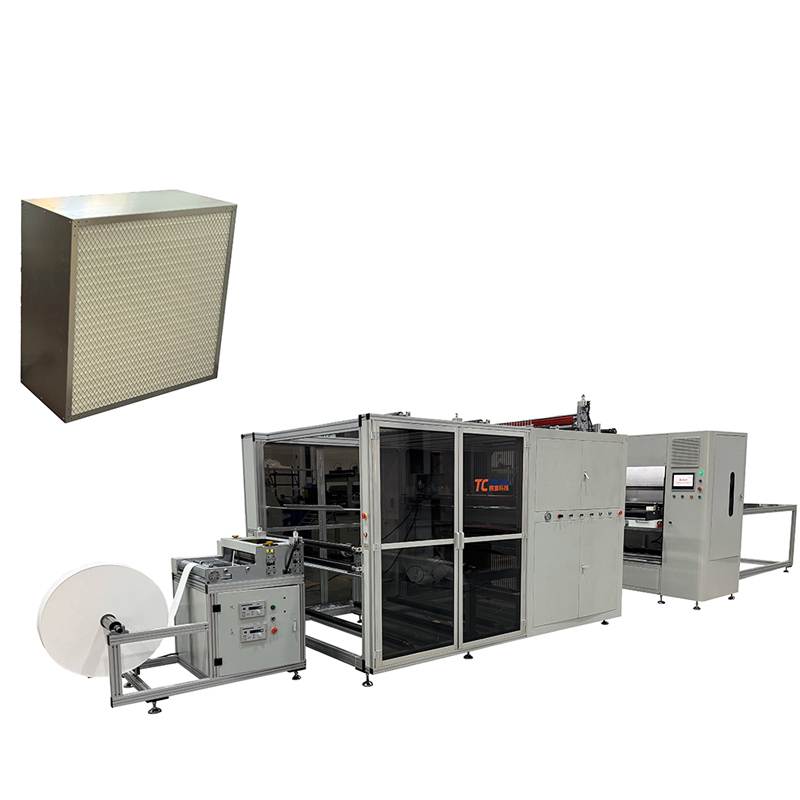

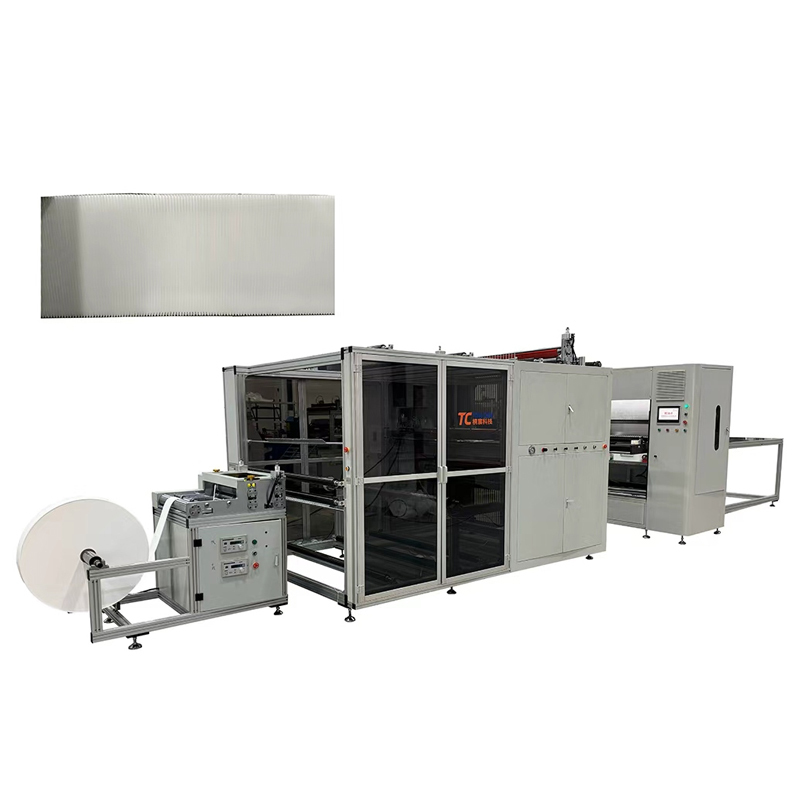

300mm Pleat Height High-tempurture Fiberglass Pleating Production Line

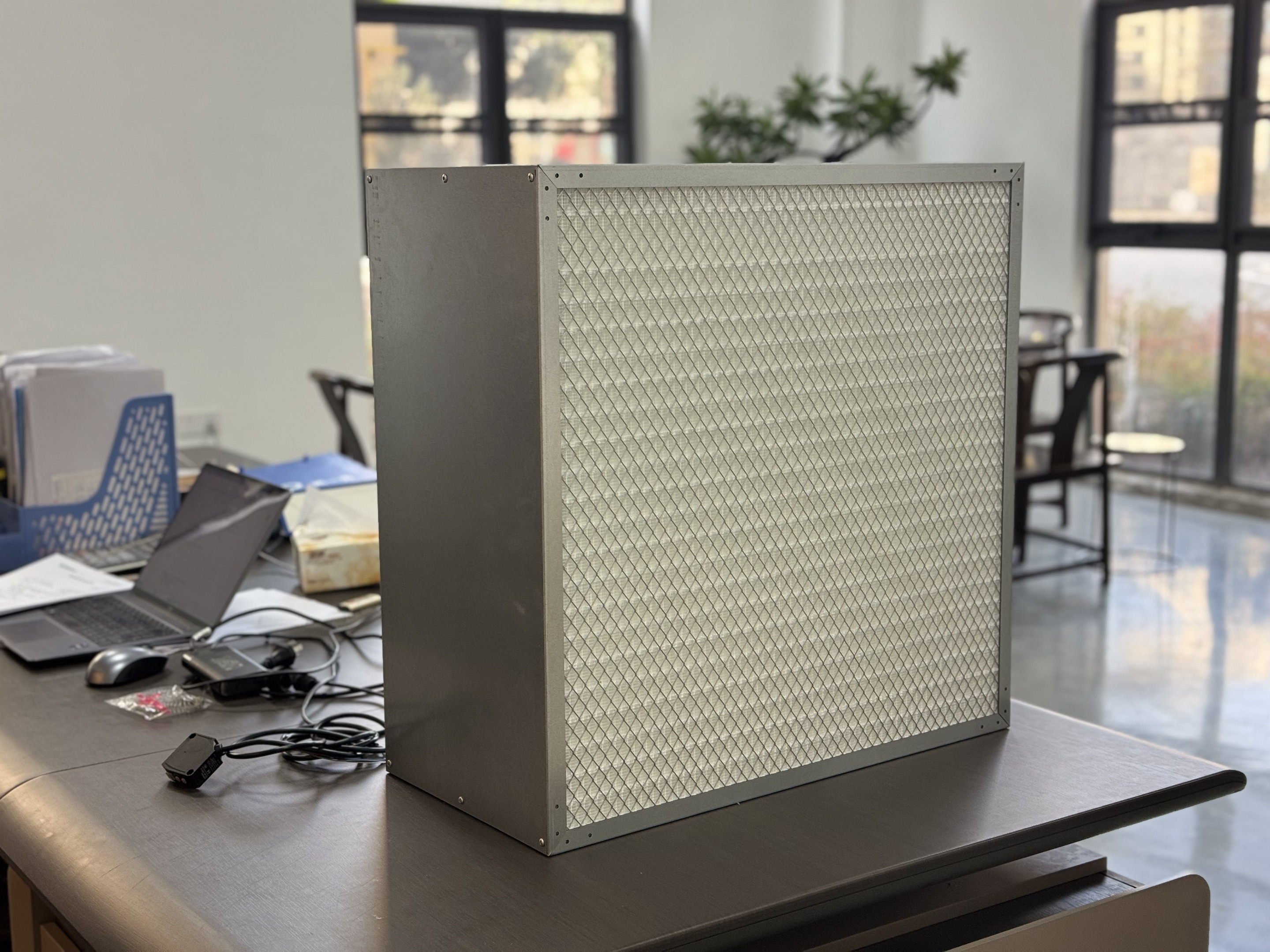

Our production line specializes in manufacturing high-temperature resistant glass fiber folded filter paper, designed for demanding industrial applications. The equipment integrates cutting-edge automation technology to ensure precision folding, uniform adhesive application, and high-speed production of filter cores used in HEPA/ULPA filters, automotive filtration, and thermal insulation systems.
Product Specifications

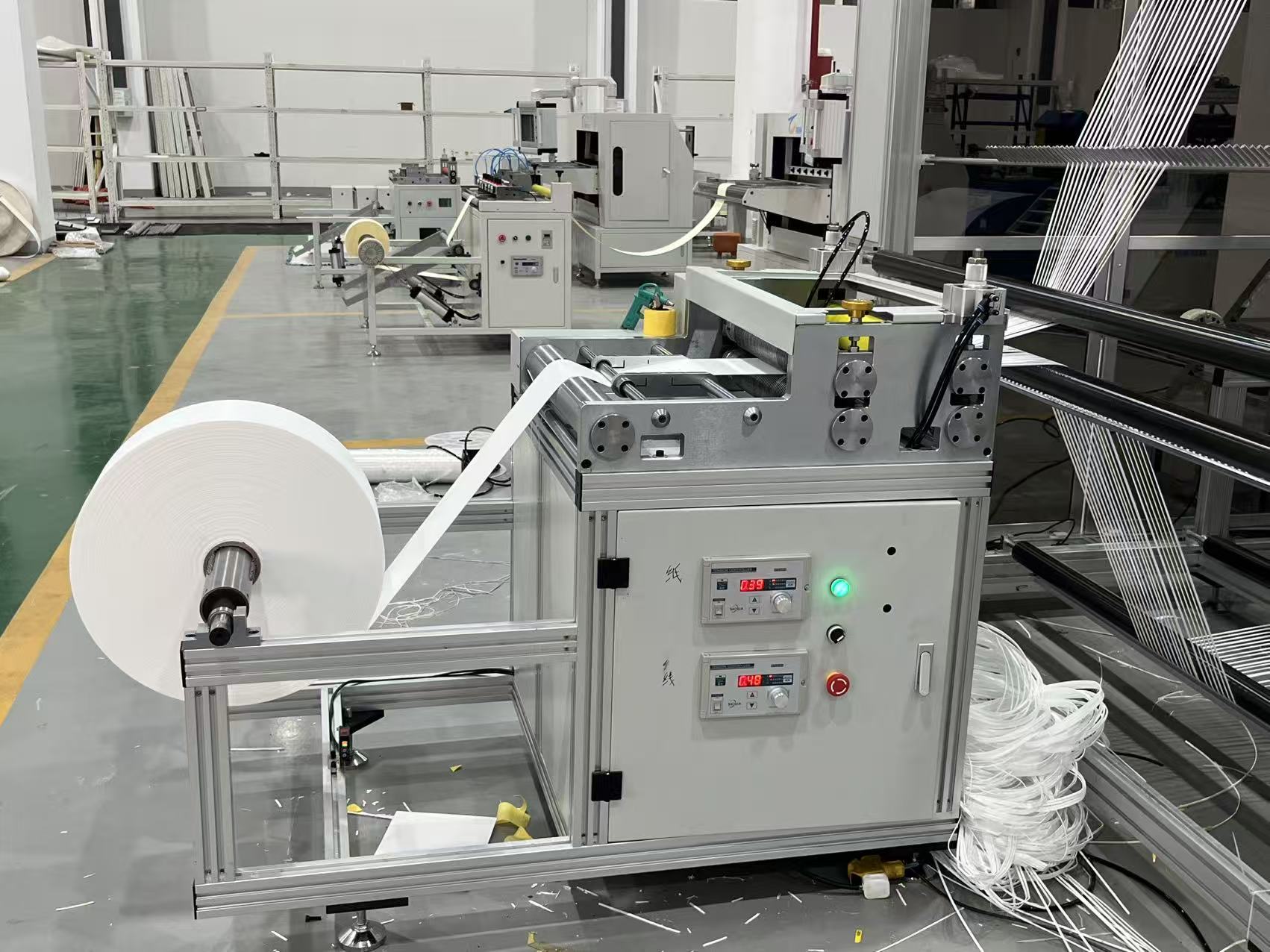

Pre-cutting Paper Feeding Machine
| Parameter |
Specification |
| Paper feeding speed |
0.5m/min - 10m/min adjustable |
| Adjustable width |
25 - 350mm |
| Filter paper thickness |
1.5mm
|
| Power supply voltage |
380V/50Hz |
| Motor power |
0.55kw
|
| Working air pressure |
0.6Mpa |
| Machine weight |
250kg
|
| Dimensions |
1280×1100×1200mm (L×W×H) |

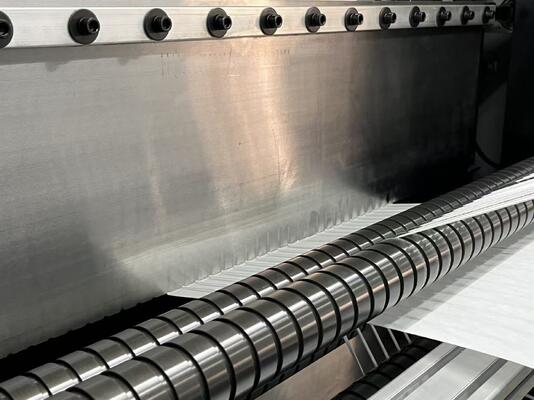

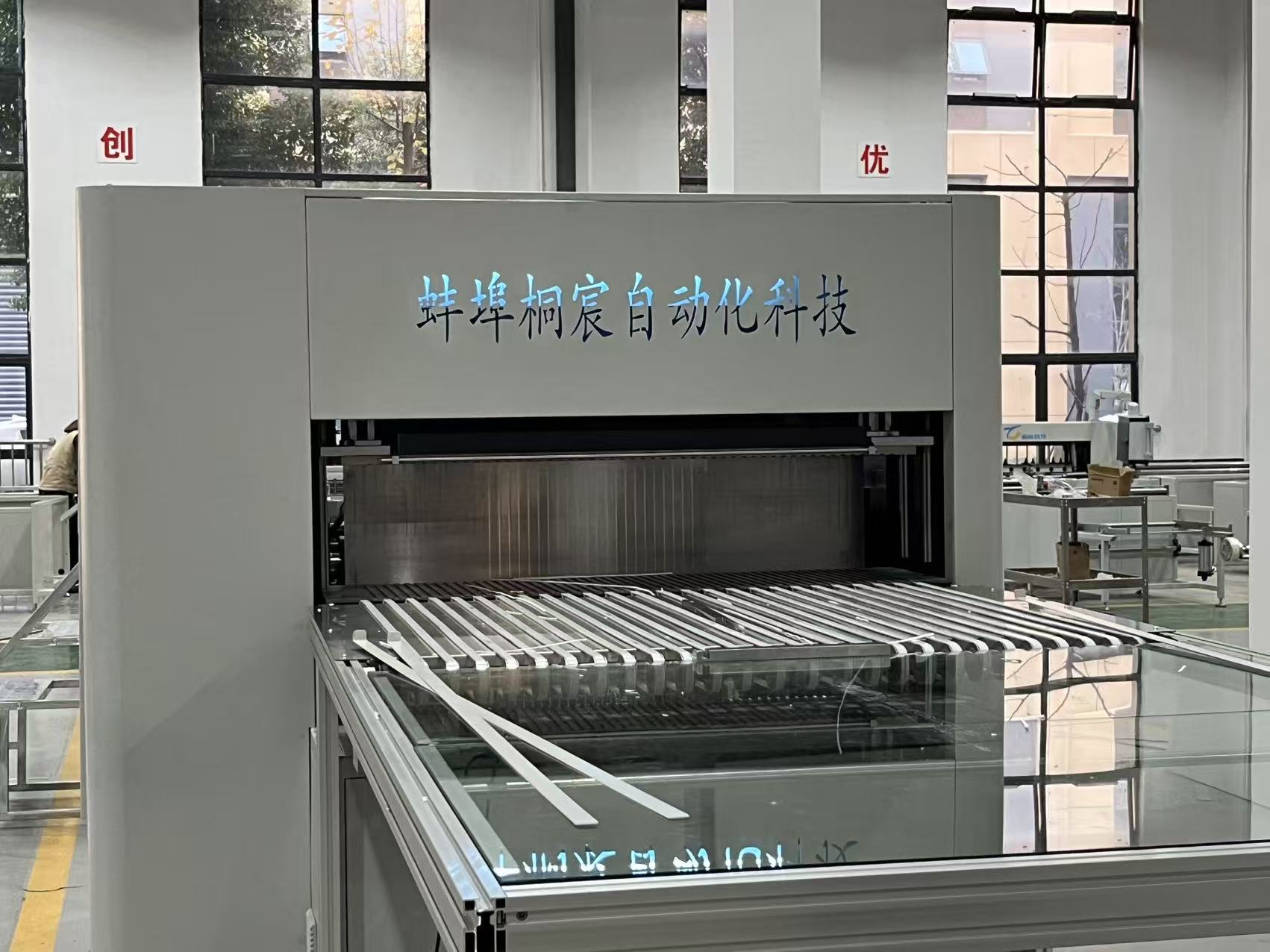

Folding Machine
| Parameter |
Specification |
| Maximum product width |
1000mm |
| Adjustable folding height |
20-300mm |
| Folding speed |
0 - 60 folds/minute (adjustable) |
| Glass fiber line distance |
32mm |
| Power supply voltage |
380V - 50Hz |
| Main motor power |
4×0.75kw |
| Ascending motor power |
0.4KW |
| Working air pressure |
0.6Mpa |
| Machine weight |
450kg |
| Dimensions |
1800×1500×2250mm (L×W×H)
|
Main Features
(1) Feeding function
(2) Powder brake, air expansion shaft, tension regulator, tension can be freely adjusted
(3) Feeding roller, conveying roller, both ends of the conveying roller have an adjustable cylinder
(4) Customized cutting knife
(5) Line cutting is customized according to the line width, automatic cutting of the upper and lower layers through special processing materials to control the stability of the lines
(6) Pre-cutting paper feeding machine is the latest improved cutting machine, the cutting lines adopt servo control system for synchronous movement with the folding machine
(7) Upper and lower lines and filter paper are automatically synchronous with folding
Product Advantages
1. Precision & Flexibility
Multi-Layer Compatibility: Handles up to 7 layers of materials (glass fiber, PP, metal, etc.) with automatic height adjustment.
Dual-Side Processing: Simultaneous cutting and folding reduce production time by 30% compared to traditional methods.
2. Durability & Efficiency
High-Temperature Resistance: Processes glass fiber paper stable up to 500°C, ideal for industrial kilns and automotive exhaust systems.
Energy-Saving Design: Servo motors and PLC reduce power consumption by 15% (total power: 16kW).
3. Smart Automation
Touchscreen Control: Real-time parameter adjustment (speed, fold height, tension) via HMI interface.
Quick Changeover: Modular rollers and pre-set recipes minimize downtime for multi-product batches.
Applications
- Automotive air conditioning filters
- Cabin air filters
- Industrial and HVAC filters
- Household air purifier filters
- Nonwoven and pleated filter frames
- Any filter requiring precise four-side edge strip removal
Ideal for filtration processing factories, air filter assembly lines, and precision finishing workshops.
Company Profile
Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD is a specialized firm that integrates research, development, manufacturing, marketing and after-sales service for filtration equipment manufacturing equipment. Our primary product offerings encompass a range of advanced machinery, including fully automated reciprocating paper folding production lines, fully automated PP intermittent glue injection and wave reception production lines, and fully automated paper frame gluing production lines. For more information or to schedule a demonstration, please contact us. We are committed to providing tailored solutions that meet the unique needs of our clients.
Production Packaging
Frequently Asked Questions
Can you give me a discount price?
Discounts depend on order volume. Larger quantities qualify for greater discounts.
How do you guarantee your quality?
Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.
How about your after-sales service?
We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
