Panel servo paper pleating production line

1
MOQ
$7000~14500
Price
Panel servo paper pleating production line
Features Gallery Product Description Request A Quote
Features
Specifications
Computerized: Yes
Guarantee Time: 1 Year
Touchscreen Configuration: 7-inch Touchscreen
Equipment Specifications: Maximum Folding Width 320mm
Hot Melt Glue Machine Capacity: 10L
Preheat Time: 30 Minutes With Timer Switch
Highlight:

panel servo paper pleating machine

,

air filter pleating production line

,

servo-driven filter panel pleater
Basic Infomation
Place of Origin: Anhui,China
Brand Name: TONGCHEN
Certification: ISO
Model Number: TC-5569
Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 15
Product Description
Panel Servo Paper Pleating Production Line
The Panel Servo Paper Pleating Production Line integrates automatic feeding, humidification, imprinting, servo gluing, folding, forming, and conveyor transport. It adopts an advanced spray system to replace traditional steam heating, ensuring stable humidity and excellent fold formation.
The dual-servo glue gun system supports multiple gluing methods including right angle, oblique angle, and double-side oblique angle. With a touch-controlled PLC system, the equipment provides easy operation, precise folding height, uniform corrugation spacing, and high-speed production ranging from 5-50 m/min.
This production line offers outstanding performance for mass production of panel-type filter paper with superior pleating quality.

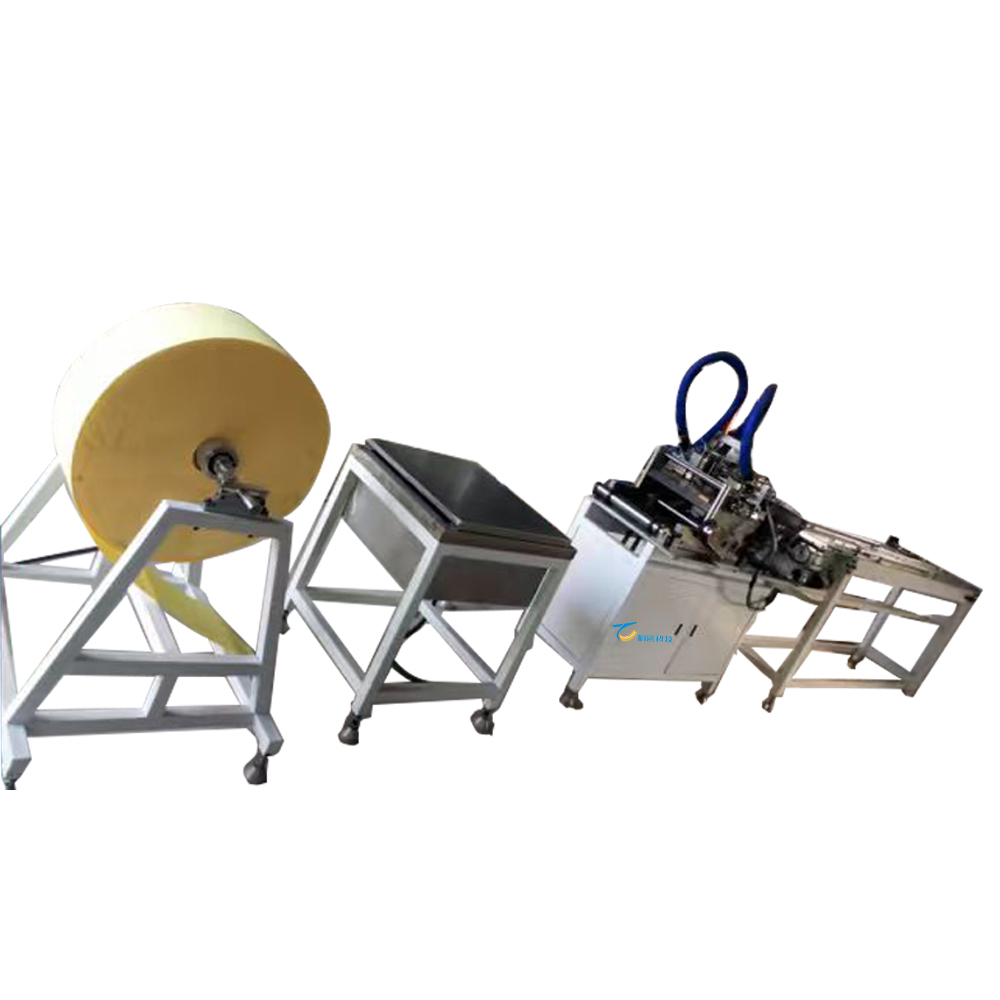

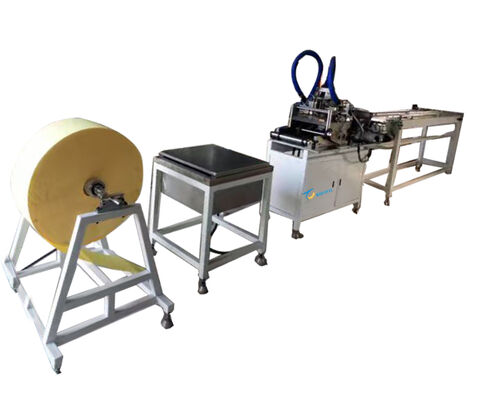

Panel servo paper pleating production line 0
Main Features
  • Utilizes advanced spray system replacing traditional steam heating
  • Paper folding height: 20-60mm (requires roller replacement)
  • Corrugation flatness standard: exceptionally smooth fold height
  • Corrugation spacing: uniform and consistent with imported roller machining technology
  • Two glue guns equipped with dual servo motors
  • PLC / touchscreen control supporting right angle, oblique angle, and double-side gluing
  • Guide rail adjustment system for easy operation
  • 30-minute preheating time with timer switch
  • Full touchscreen control system, among China's most advanced equipment
Technical Specifications
Paper Folding Height 20-60 mm
Maximum Filter Paper Width 90-320 mm
Production Speed 5-50 m/min
Conveyor Belt Speed 0-8 m/min
Hot Melt Glue Machine Capacity 10L
Machine Dimensions (L×W×H) 6200mm × 16000mm × 1400mm
Total Power Consumption 9 kW
Compressed Air Supply 1 m³/min
Main Motor Power 1.1 kW
Conveyor Motor Power 0.55 kW
Glue Injection Servo Motor Power 2×400 kW
Glue Machine Power 6.4 kW
Machine Weight 600 kg
Operating Air Pressure 0.6 MPa
Power Supply Voltage 380V / 50Hz
Applications
  • Automotive panel air filters
  • HVAC and household air purification filters
  • Industrial air filtration products
  • Pleated filter paper for environmental and dust-removal systems
  • Production of flat-panel, square, and rectangular filter media
Packaging & Delivery
Selling Units: Single item

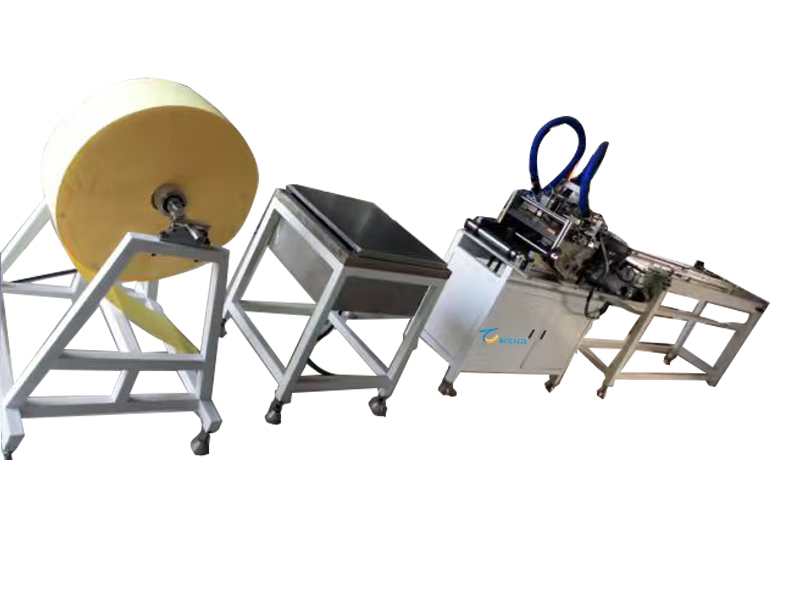

Panel servo paper pleating production line 1 Panel servo paper pleating production line 2
Manufacturer Profile
Bengbu Tongchen Automation Technology Equipment Co., Ltd. is located in Bengbu, China—an important transportation hub and industrial base. Our company specializes in the development, design, and production of filter manufacturing equipment, providing advanced, practical, and efficient solutions that meet both domestic trends and international standards.
Product Range
  • Paper folding equipment and rotating machines
  • Diesel engines and large air filter production equipment
  • Partitionless and partitioned filter production equipment
  • Pleating machines and glass fiber strip production lines
We prioritize product quality and service to enhance your brand's competitiveness in the global market. Tongchen Technology is committed to becoming your most reliable mechanical solution provider and long-term business partner.
Panel servo paper pleating production line 3 Panel servo paper pleating production line 4 Panel servo paper pleating production line 5
