Name: PP Pleated and Glue Production Line
Brand: Bengbu Tongchen Automation Technology Co., ltd
SKU: TC-5569
Price: 11,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Computerized: Yes

Guarantee Time: 1 Year

Electrical Components: Custom-made High-precision Sensors And Imported Relays

Mechanical Parts: Shafts Plated With Hard And Decorative Chromium; Others Blackened

Highlight:

PP pleated air filter production line

glue production line for air filters

pleated filter manufacturing line with warranty

Basic Infomation

Place of Origin: Anhui,China

Brand Name: TONGCHEN

Certification: ISO

Model Number: TC-5569

Payment & Shipping Terms

Packaging Details: Wooden Box

Delivery Time: 30

Payment Terms: T/T

Supply Ability: 15

Gallery

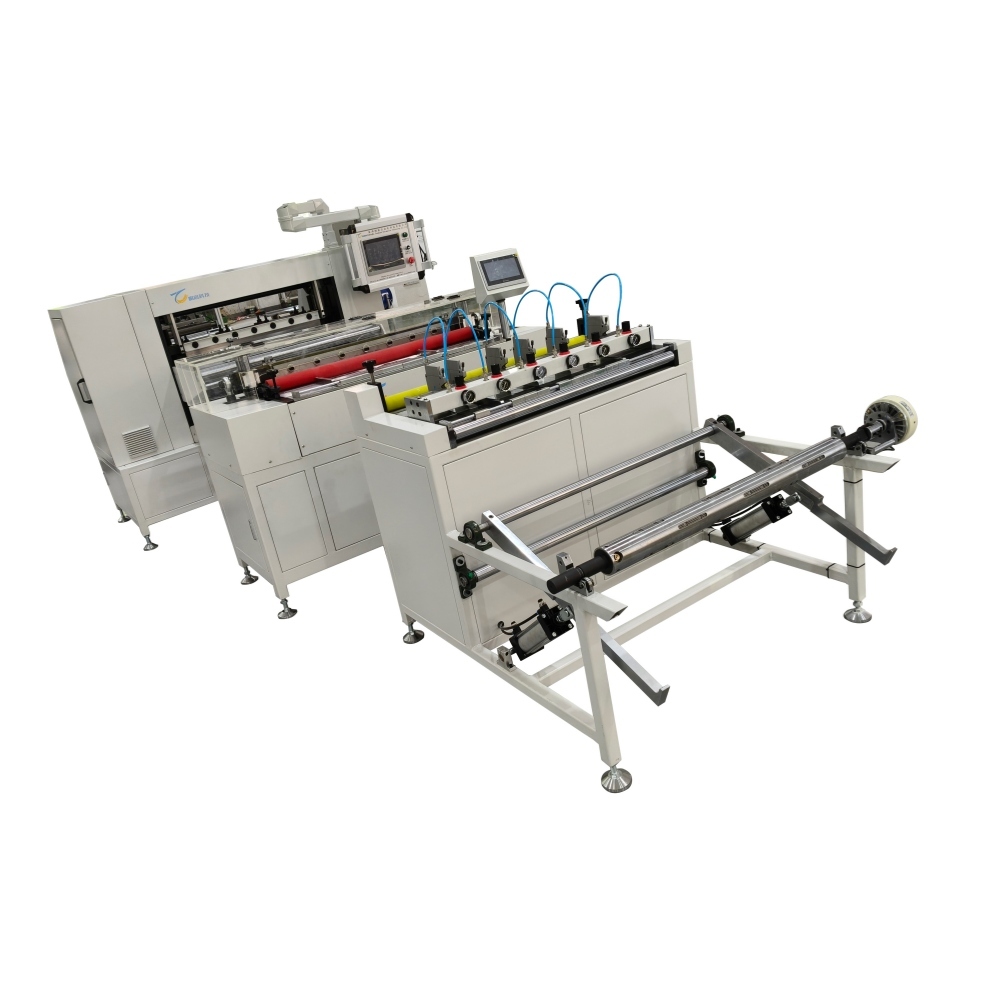

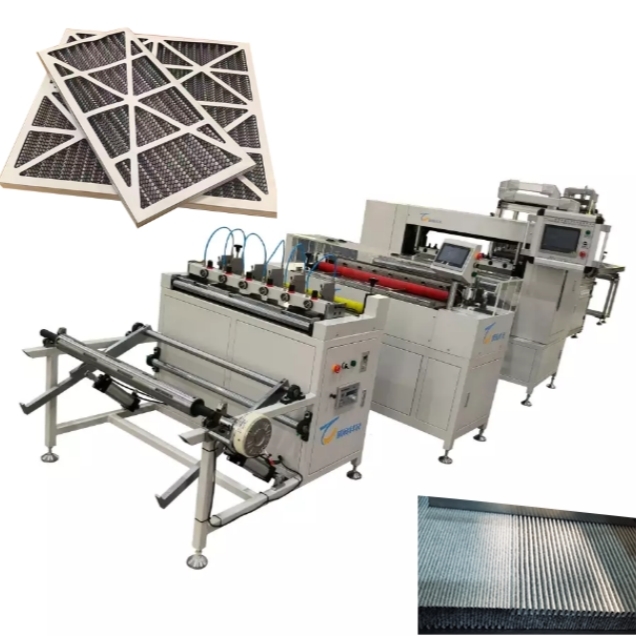

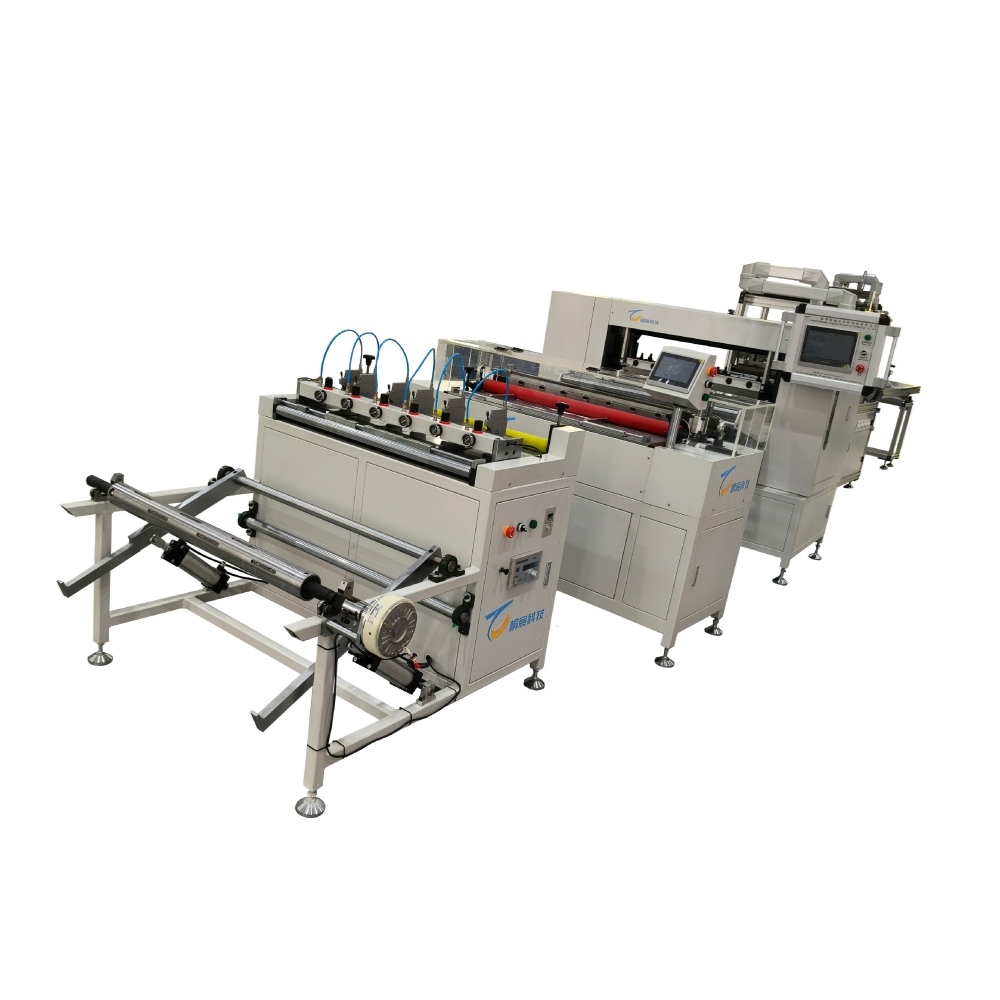

PP Pleated and Glue Production Line

Product Description

PP Pleated and Glue Production Line

The PP Pleated and Glue Production Line is an advanced, fully automated system designed for manufacturing pleated polypropylene (PP) filter materials. This integrated solution combines filter paper feeding, pre-slitting, pleating, and gluing processes into one continuous workflow, delivering high precision, stable operation, and efficient production output.

This production line is engineered for automotive, air purification, water filtration, and industrial filtration industries. It features high-speed production capabilities, consistent glue application, and flexible parameter adjustments to accommodate various filter specifications.

Main Features

Integrated Automation - Combines feeding, pleating, and gluing for continuous and efficient production
Computer Touchscreen Control - Intelligent interface for setting and monitoring speed, temperature, and glue parameters
Precise Glue Control System - 50kg hot-melt glue unit with dual 26-point spray heads for even, accurate glue application
Adjustable Folding Mechanism - Flexible pleating height and width to adapt to different filter materials
High-Quality Components - Equipped with Hui Chuan motors, PLCs, and sensors for reliable and precise performance
Energy Efficient and Durable - Built with robust materials and advanced control systems to ensure long lifespan and low maintenance

Technical Specifications

Pre-slitting Paper Conveyor	Filter Paper Folder	Gluing Machine (Model 55-700)
Adjustable paper conveyor speed: 0.5 - 12 m/min	Maximum product width: 800 mm	Maximum product width: 700 mm
Adjustable filter paper width: 32 - 800 mm	Adjustable folding height range: 6 - 55 mm	Adjustable folding height range: 6 - 55 mm
Power supply voltage: 220V / 50Hz	Folding speed: 0 - 100 folds per minute	Production speed: 4 - 25 m/min
Motor power: 0.55 kW	Power supply voltage: 380V / 50Hz	Glue strip spacing: 25.4 mm
Machine weight: 350 kg	Motor power: 1.1 kW	Number of glue strips: 2 × 26, each controlled by electronic valve
Dimensions: 1500 × 1300 × 1100 mm	Preheating power: 4 kW	Glue-off control: Automatic intermittent glue-off function
	Temperature control range: Ambient to 200°C	Power supply voltage: 380V / 50Hz
	Operating air pressure: 0.6 MPa	Total power: 13 kW
	Machine weight: 650 kg	Operating air pressure: 0.6 MPa
	Dimensions: 1670 × 1720 × 1240 mm	Machine weight: 500 kg
		Glue machine dimensions: 160 × 100 × 130 mm
		Main machine dimensions: 4000 × 130 × 160 mm

Applications

PP filter cartridge manufacturing
Air filter and water filter production
Industrial and environmental filtration equipment
Automotive air purification systems

Packaging & Delivery

Selling Units: Single item

Manufacturer Profile

Bengbu Tongchen Automation Technology Equipment Co., Ltd. is located in Bengbu, China—an important transportation hub and industrial base. Our company specializes in the development, design, and production of filter manufacturing equipment, providing advanced, practical, and efficient solutions that meet both domestic trends and international standards.

Product Range

Paper folding equipment and rotating machines
Diesel engines and large air filter production equipment
Partitionless and partitioned filter production equipment
Pleating machines and glass fiber strip production lines

We prioritize product quality and service to enhance your brand's competitiveness in the global market. Tongchen Technology is committed to becoming your most reliable mechanical solution provider and long-term business partner.
