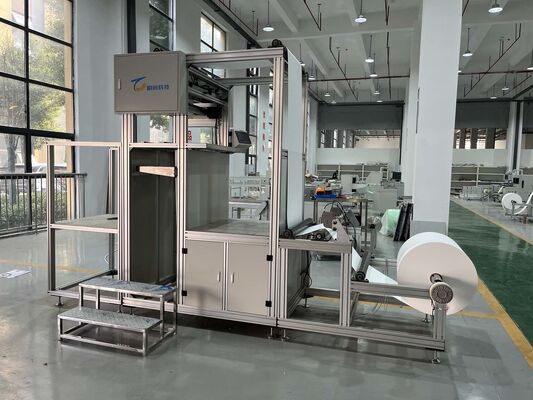

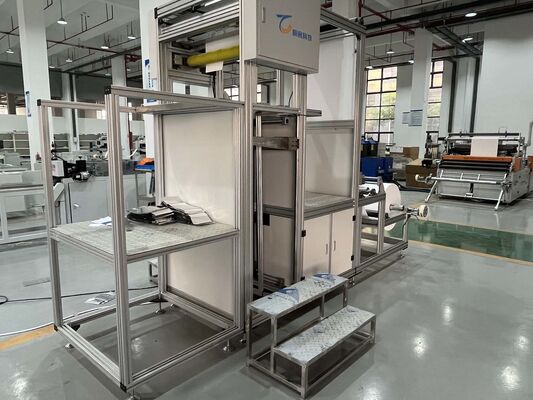

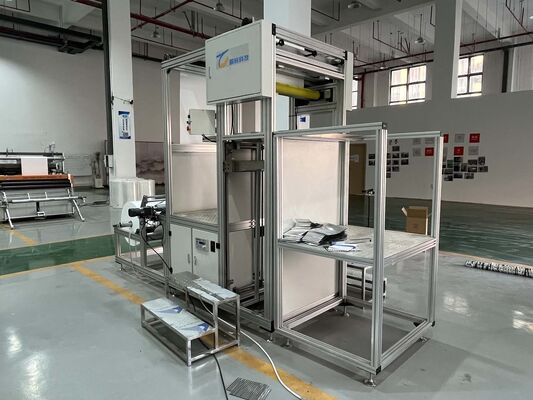

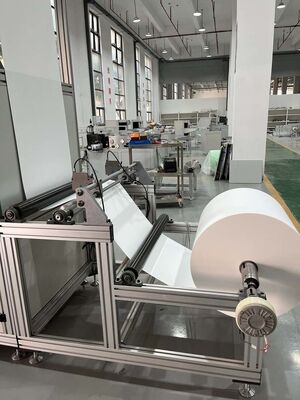

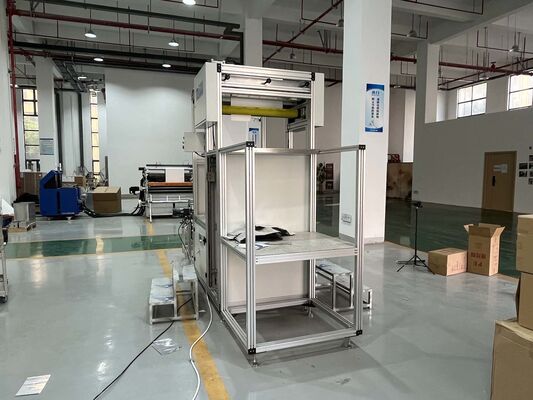

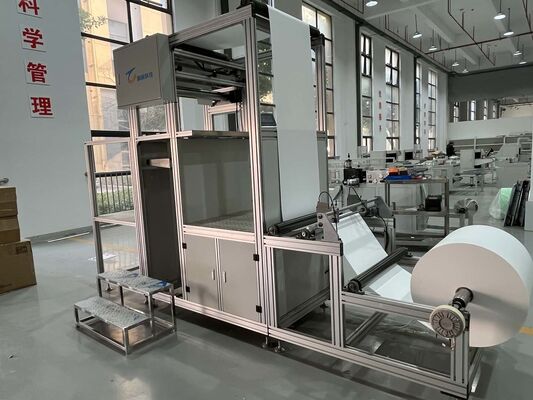

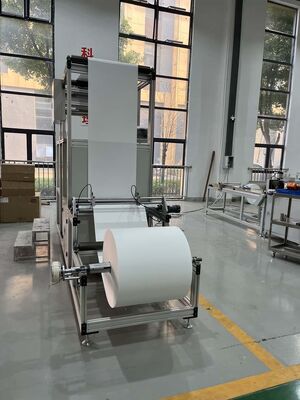

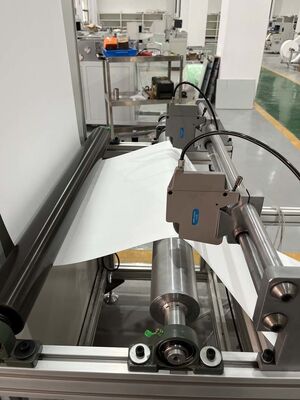

High Quality Hepa Filter Paper Folding and Pleating Partition Machine

1
MOQ
9000-12000
Price
High Quality Hepa Filter Paper Folding and Pleating Partition Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Power Source: Electric
Machinery Test Report: Provided
Guarantee Time: 1 Year
Dimension: 1250 × 1100 × 1500 Mm (L*W*H)
Computerized: Yes
Product Origin: Bengbu Anhui China
Highlight:

HEPA filter paper folding machine

,

pleating partition machine for air filters

,

air filter production line equipment
Basic Infomation
Place of Origin: Anhui Bengbu
Brand Name: Bengbu Tongchen
Model Number: TCFH-700
Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15-45 Days
Payment Terms: T/T
Supply Ability: Unlimited Supply
Product Description

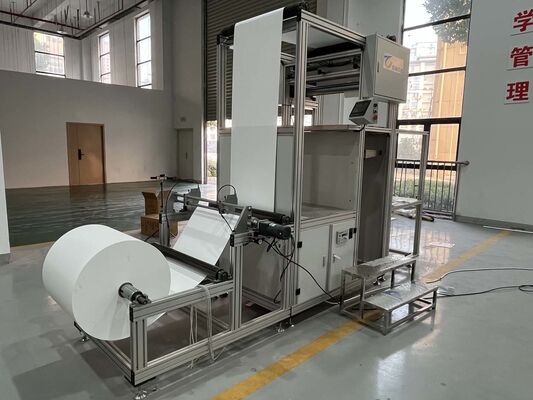

High Quality HEPA Filter Paper Folding and Pleating Partition Machine
The Partitioned Glass Fiber Folding Paper Production Line is a high-precision, automated machine designed for folding and forming partitioned glass fiber filter materials. It provides stable performance, accurate pleating control, and reliable operation, making it ideal for manufacturing HEPA, ULPA, automotive, and industrial air filter elements with partition separators.
This equipment integrates tension control, automatic cutting, embossing, and folding in one continuous process. The folding height and pleat spacing are digitally controlled, ensuring uniform pleats and consistent quality for glass fiber materials.
Product Specifications
Item Specification
Production Capacity 1-10 m/min
Folding Height 5 - 300 mm
Folding Spacing 3 - 30 mm
Filter Paper Width ≤ 700 mm
Motor Power 0.75 kW
Power Supply 220 V / 50 Hz
Working Air Pressure 0.6 MPa
Machine Weight 500 kg
Overall Dimensions (L × W × H) 3560 × 1285 × 2460 mm
Main Features
  • Computer-Controlled Folding System: Folding height and width can be freely set through the digital control interface for precise adjustment.
  • Automatic Speed Regulation: Servo motor with PLC system automatically adjusts the speed to suit different material types and production requirements.
  • Stable Folding Accuracy: Ensures uniform spacing and flat pleats for partitioned glass fiber media.
  • User-Friendly Operation: 7-inch touchscreen for quick parameter setup and process monitoring.
  • Durable Construction: Built with a thickened aluminum alloy frame, tension control system, and precision mechanical components.
  • Efficient Workflow: Integrates feeding, cutting, embossing, manual corrugation placement, and forming into one streamlined process.
High Quality Hepa Filter Paper Folding and Pleating Partition Machine 0
Product Advantages
  • Wide folding range: pleat height from 5mm to 300mm
  • Servo and PLC integrated control for high precision
  • Consistent pleat spacing and reliable glass fiber forming
  • Compact structure, stable performance, and easy operation
  • Durable build with high-quality components for long service life
Applications
  • Automotive air conditioning filters
  • Cabin air filters
  • Industrial and HVAC filters
  • Household air purifier filters
  • Nonwoven and pleated filter frames
  • Any filter requiring precise four-side edge strip removal
Ideal for filtration processing factories, air filter assembly lines, and precision finishing workshops.
Company Profile
High Quality Hepa Filter Paper Folding and Pleating Partition Machine 1
Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD is a specialized firm that integrates research, development, manufacturing, marketing and after-sales service for filtration equipment manufacturing equipment. Our primary product offerings encompass a range of advanced machinery, including fully automated reciprocating paper folding production lines, fully automated PP intermittent glue injection and wave reception production lines, and fully automated paper frame gluing production lines. For more information or to schedule a demonstration, please contact us. We are committed to providing tailored solutions that meet the unique needs of our clients.
Production Packaging
High Quality Hepa Filter Paper Folding and Pleating Partition Machine 2 High Quality Hepa Filter Paper Folding and Pleating Partition Machine 3
Frequently Asked Questions
Can you give me a discount price?
Discounts depend on order volume. Larger quantities qualify for greater discounts.
How do you guarantee your quality?
Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.
How about your after-sales service?
We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
