Name: Fully Automatic Continuous Edge-Gluing Machine
Brand: Bengbu Tongchen Automation Technology Co., ltd
SKU: TCAD-3A
Price: 5000 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Power Source: Electric

Machinery Test Report: Provided

Guarantee Time: 1 Year

Origin: AH,China

Computerized: Yes

Basic Infomation

Place of Origin: Anhui ,China

Brand Name: Bengbu Tongchen

Model Number: TCAD-3A

Payment & Shipping Terms

Packaging Details: Wooden Box

Delivery Time: 15-45 Days

Payment Terms: T/T

Supply Ability: Unlimited Supply

Gallery

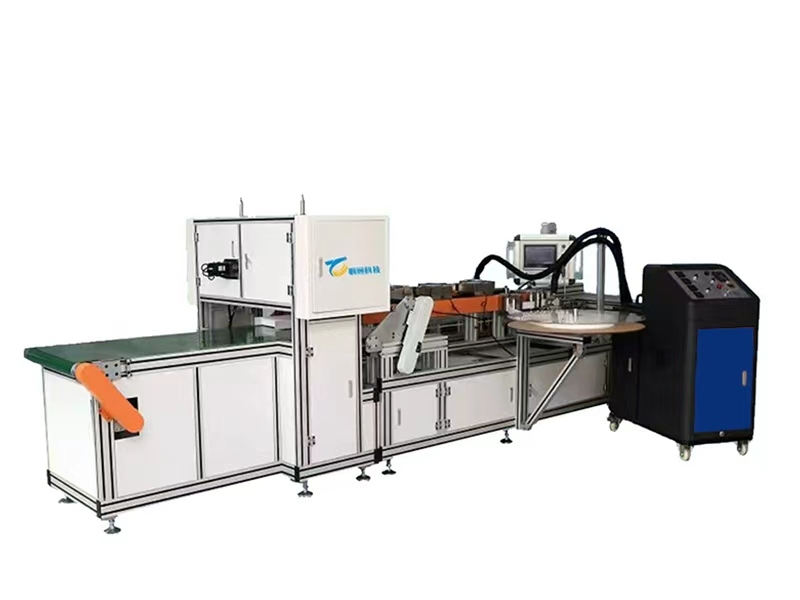

Fully Automatic Continuous Edge-Gluing Machine

Product Description

Fully Automatic Continuous Edge-Gluing Machine

The Fully Automatic Continuous Edge-Gluing Machine is a high-performance automated edge sealing system engineered for air filters, industrial panels, and multi-layer materials requiring consistent edge banding. Featuring a complete servo system, synchronous conveyor belt technology, and a 30L hot melt glue unit, the equipment achieves precise glue application with minimal manual involvement.With intelligent cutting, automatic cooling, and uniform glue-coating control, this production line significantly enhances productivity while ensuring energy efficiency and stable performance.

Technical Specifications

Item	Specification
Max Folding Width	100–500 mm
Production Speed	1–5 m/min
Servo Motor Power	0.75 kW × 3
Additional Servo Motor	0.4 kW × 1
Glue-Coating Width	13–65 mm (adjustable)
Edge Strip Width	12–70 mm
Hot Melt Glue Tank Capacity	30 L
Power Supply	380V / 50Hz
Total Power	15 kW
Dimensions	6000 × 2000 × 1800 mm
Glue Preheating Time	30 minutes
Cooling Method	Automatic cooling

Configuration List

Component	Specification
Servo Motors & Drives	INOVANCE (4 sets)
High-Precision Reducer	NUSTA
Control Interface	10-inch INOVANCE touchscreen
PLC System	INOVANCE five-axis programmable controller
Mechanical Structure	Reinforced aluminum/iron, chrome-plated shafts, black oxide finishing
Pneumatic Components	Domestic cylinders, solenoid valves, pressure regulators
Bearings	Harbin Bearings
Glue Application System	30L hot melt glue machine + 2 scraping units

Fully Automatic Continuous Edge-Gluing Machine 0

Product Features

Dual-side automatic edge gluing with synchronous belt transport
30L high-capacity hot melt glue machine for long continuous operation
Servo-driven automatic edge strip cutting for precise length control
Adjustable glue-coating width (13–65 mm) for various filter sizes
Automatic cooling system for stable glue solidification
High-speed output up to 5 m/min
10-inch touchscreen control with intuitive parameter settings
Full INOVANCE servo system ensuring consistent accuracy
Reinforced structural design with chrome-plated shafts and black-oxide treatment
Energy-efficient operation with uniform adhesive thickness

Main Advantages

Fully automated process reduces labor costs
High bonding consistency due to precise servo control
Fast and stable production with 15 kW power configuration
Long-term durability using high-grade aluminum/iron structural profiles
Easy setup & operation through the PLC-controlled touchscreen
Clean and uniform adhesive application with adjustable coating width
Low maintenance thanks to accessible mechanical and electrical layouts
Ideal for mass production, improving speed and accuracy simultaneously

Applications

This machine is ideal for industries requiring precise continuous edge gluing, including:

Air filter manufacturing (primary, medium, high-efficiency filters)
Automotive filter edge sealing
Industrial panel edge banding
Household appliance filter production
HEPA and HVAC filter production lines
Composite material bonding
Packaging and insulation materials
Edge sealing for multilayer paper and nonwoven materials

Perfect for factories specializing in filtration, environmental equipment, automotive components, and automated assembly lines.

Company Profile

Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD is a specialized firm that integrates research, development, manufacturing, marketing and after-sales service for filtration equipment manufacturing equipment. Our primary product offerings encompass a range of advanced machinery, including but not limited to fully automated reciprocating paper folding production lines, fully automated PP intermittent glue injection and wave reception production lines, fully automated paper frame gluing production lines. For more information or to schedule a demonstration, please contact us. We are committed to providing tailored solutions that meet the unique needs of our clients.

Product Packaging

Frequently Asked Questions

Can you give me a discount price?

Discounts depend on order volume. Larger quantities qualify for greater discounts.

How do you guarantee your quality?

Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.

How about your after-sales service?

We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
