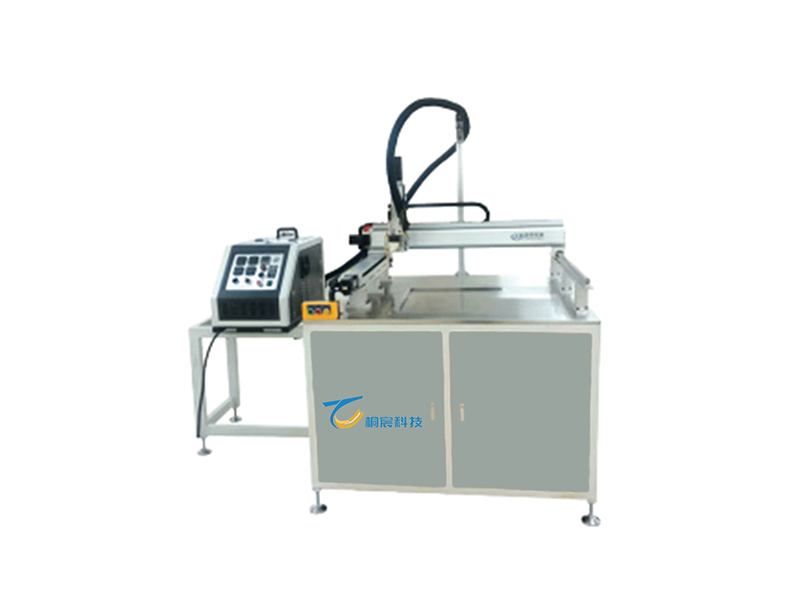

High-Precision Three-Axis Automatic Dispensing Machine

1
MOQ
5000
Price
High-Precision Three-Axis Automatic Dispensing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Power Source: Electric
Machinery Test Report: Provided
Guarantee Time: 1 Year
Origin: AH,China
Computerized: Yes
Highlight:

three-axis automatic dispensing machine

,

high-precision dispensing machine

,

air filter production line machine
Basic Infomation
Place of Origin: Anhui ,China
Brand Name: Bengbu Tongchen
Model Number: TCAD-3A
Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15-45 Days
Payment Terms: T/T
Supply Ability: Unlimited Supply
Product Description
High-Precision Three-Axis Automatic Dispensing Machine
Advanced automated dispensing system designed for precision adhesive application in industrial manufacturing environments.
Technical Specifications
Item Specification
Glue Dispenser Capacity 10 kg
Glue Hose 2.5 m
Glue Nozzle 1 piece
Max Travel X: 1000 mm, Y: 600 mm, Z: 150 mm
Lead X: 16 mm, Y: 16 mm, Z: 10 mm
Repeatability 0.05 mm
Max Speed 800 mm/s (XYZ axes)
Max Load 5 kg
Safety Components Limit photoelectric switches, coupling, drag chain
Operating System Chinese system
Mechanical Components Shafts: hard-chrome plating; Frame: reinforced baked enamel; Others: oxidized blackening
Instrumentation Installed rationally for easy disassembly
High-Precision Three-Axis Automatic Dispensing Machine 0
Product Features
  • Three-axis motion with 1000 * 600 * 150 mm working range
  • High repeatability of 0.05 mm, suitable for precision glue application
  • High speed up to 800 mm/s for improved productivity
  • Supports diverse dispensing paths: points, lines, curves, circles
  • 10 kg glue dispensing capability with 2.5 m glue hose
  • Durable electroplated hard-chrome shafts for long service life
  • Reinforced baked-enamel frame for enhanced stability
  • Equipped with photoelectric limit switches, coupling, and drag chain
  • User-friendly Chinese operating system
  • Easy maintenance with accessible instrument layout
Main Advantages
  • Stable and precise dispensing due to high repeatability
  • Strong mechanical rigidity ensures vibration-free high-speed operation
  • Efficient production with fast XYZ movement
  • Long-lasting components due to chrome-plated shafts and anti-rust treatment
  • Simple operation suitable for new and experienced operators
  • Flexible customization for glue type, nozzle, and fixture
  • Low maintenance thanks to modular design and accessible parts
Applications
The Three-Axis Dispensing Machine is widely used in:
  • Electronics manufacturing (PCBs, components, mobile devices)
  • Air filter & HEPA filter sealing and bonding
  • Automotive components gluing
  • Plastics and hardware adhesive processes
  • LED and lighting module potting & sealing
  • Small appliance sealing lines
  • Precision bonding in automation production lines
  • Packaging and product assembly
Suitable for industries such as electronics, filtration, hardware, automotive, household appliances, and automation manufacturing.
Company Profile
High-Precision Three-Axis Automatic Dispensing Machine 1
Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD is a specialized firm that integrates research, development, manufacturing, marketing and after-sales service for filtration equipment manufacturing equipment. Our primary product offerings encompass a range of advanced machinery, including but not limited to fully automated reciprocating paper folding production lines, fully automated PP intermittent glue injection and wave reception production lines, fully automated paper frame gluing production lines. For more information or to schedule a demonstration, please contact us. We are committed to providing tailored solutions that meet the unique needs of our clients.
Product Packaging
High-Precision Three-Axis Automatic Dispensing Machine 2 High-Precision Three-Axis Automatic Dispensing Machine 3
Frequently Asked Questions
Can you give me a discount price?
Discounts depend on order volume. Larger quantities qualify for greater discounts.
How do you guarantee your quality?
Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.
How about your after-sales service?
We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
