Full-Auto Cabin Air Filter Side-Gluing Machine

1
MOQ
3000-5000
Price
Full-Auto Cabin Air Filter Side-Gluing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Power Source: Electric
Machinery Test Report: Provided
Guarantee Time: 1 Year
Dimension: 6000*2000*1800(L*W*H)
Computerized: Yes
Product Origin: Bengbu Anhui China
Highlight:

full-auto cabin air filter machine

,

side-gluing air filter machine

,

cabin air filter production line
Basic Infomation
Place of Origin: Anhui Bengbu
Brand Name: Bengbu Tongchen
Model Number: TCFH-700
Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15-45 Days
Payment Terms: T/T
Supply Ability: Unlimited Supply
Product Description
Full-Auto Cabin Air Filter Side-Gluing Machine
The Full-Auto Cabin Air Filter Side-Gluing Machine is a state-of-the-art solution designed for high-efficiency and precise side-edge bonding of cabin air filter elements. This servo-driven system automates the critical processes of adhesive application and filter cutting, ensuring uniform glue thickness and consistent product length. By utilizing advanced spiral wheel spacing control, it eliminates the need for traditional molds, significantly reducing material waste and labor costs. Experience superior production quality and energy efficiency for your air filter manufacturing line.
Product Parameters
Item Specification
Max. Pleat Width 150−300mm
Filter Pleat Height 20−45mm
Production Speed 4−5pleats/s
Total Servo Motors 4 sets (3×0.75kW+1×0.75kW)
Edge Strip Adhesive Width 10−50 (Adjustable)mm
Hot Melt Adhesive Capacity 30L
Edge Strip Width 20−60mm
Power Supply 380V/50Hz
Total Power 15KW
Overall Dimensions (L×W×H) 6000×2000×1800mm
Glue Machine Preheat Time 30minutes
Glue Line Cooling Method Automatic Cooling
Control System Brand INOVANCE (Huichuan)
Reducer Brand NUSTA
Main Features

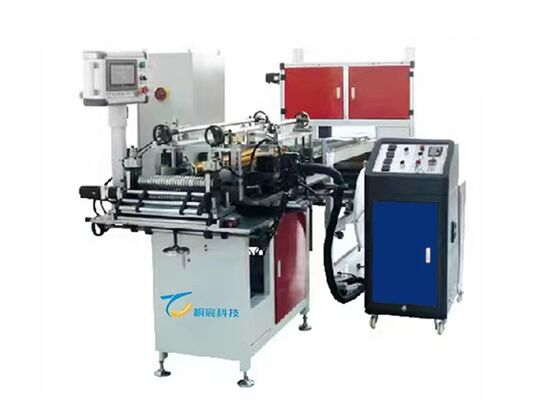

Full-Auto Cabin Air Filter Side-Gluing Machine 0
  • Fully Automatic and Precise Gluing: The equipment performs automatic edge coating on both sides of the product. The innovative spiral wheel control manages pleat spacing, replacing material-wasting molds and minimizing manual labor.
  • High Efficiency & Energy Saving: Features a servo-driven automatic cutting system. Operators simply set the desired product length on the 7-inch touchscreen, and the PLC automatically executes precise, clean cuts.
  • Superior Control System: Equipped with four sets of INOVANCE (Huichuan) fully digital servo motors, drives, and a 5-axis PLC control unit, ensuring stable, high-speed, and accurate operation.
  • Uniform Adhesive Application: Utilizes a robust 30L hot melt adhesive tank and a dual scraping system for consistent and adjustable glue width (10-50mm).
  • Durable and Heavy-Duty Construction: Mechanical components are built with heavy-duty aluminum/iron profiles, hard chrome-plated shafts, and decorative black oxide finished parts for longevity and reliability.
Applications
This machine is specifically designed for the mass production and quality finishing of:
  • Automotive Cabin Air Filter Elements
  • Air Conditioning (AC) Filter Elements
  • Other pleated media requiring precise side-edge bonding/taping
Company Profile
Full-Auto Cabin Air Filter Side-Gluing Machine 1
Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD is a specialized firm that integrates research, development, manufacturing, marketing and after-sales service for filtration equipment manufacturing equipment. Our primary product offerings encompass a range of advanced machinery, including but not limited to fully automated reciprocating paper folding production lines, fully automated PP intermittent glue injection and wave reception production lines, fully automated paper frame gluing production lines. For more information or to schedule a demonstration, please contact us. We are committed to providing tailored solutions that meet the unique needs of our clients.
Production Packaging
Full-Auto Cabin Air Filter Side-Gluing Machine 2 Full-Auto Cabin Air Filter Side-Gluing Machine 3
FAQ
Can you give me a discount price?
Discounts depend on order volume. Larger quantities qualify for greater discounts.
How do you guarantee your quality?
Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.
How about your after-sales service?
We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
