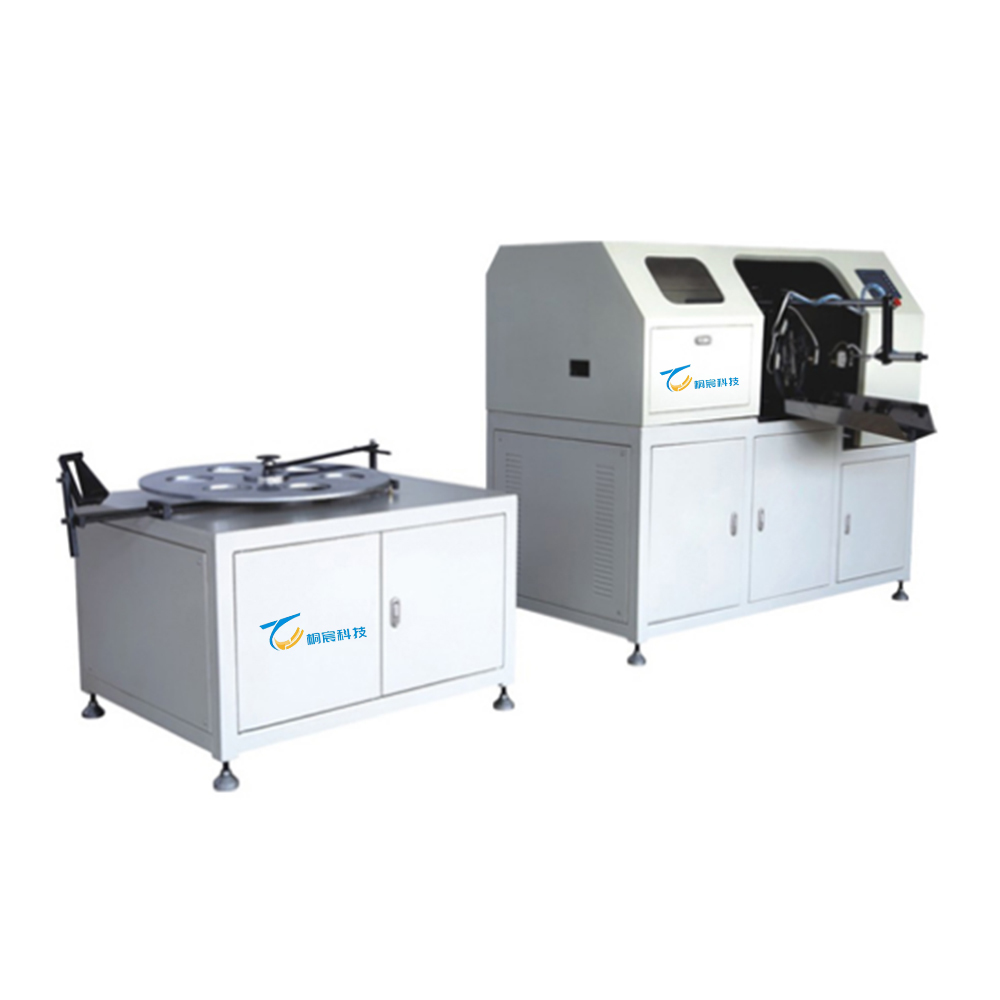

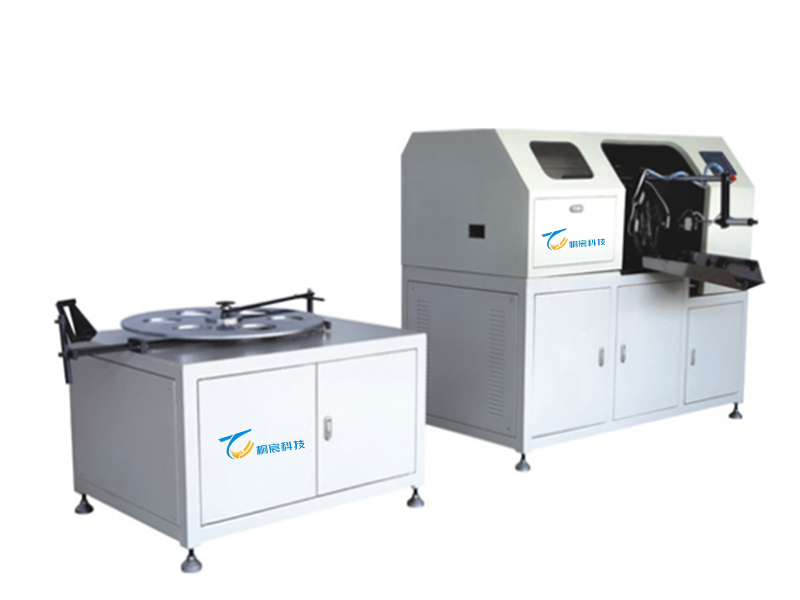

TCJY-75 Full-auto Spiral Center Tube Making Machine

1
MOQ
5000
Price
TCJY-75 Full-auto Spiral Center Tube Making Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Power Source: Electric
Machinery Test Report: Provided
Guarantee Time: 1 Year
Dimension: 1600×800×1500mm (L×W×H)
Computerized: Yes
Product Origin: Bengbu Anhui China
Highlight:

full-auto spiral tube making machine

,

air filter production line equipment

,

center tube machine with warranty
Basic Infomation
Place of Origin: Anhui Bengbu
Brand Name: Bengbu Tongchen
Model Number: TCJY-75
Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15-45 Days
Payment Terms: T/T
Supply Ability: Unlimited Supply
Product Description
TCJY-75 Full-auto Spiral Center Tube Making Machine
Product Description
The TCJY-75 is a fully automatic spiral center tube manufacturing system designed for high-volume production. With a capacity of 20-30 pcs/min, adjustable diameters from Φ30-Φ75mm, and freely selectable tube length, this machine provides strong adaptability to different filter manufacturing needs.
Its hydraulic pressure drive offers powerful and stable performance, while computer control ensures precise processing, economical material use, and steady quality.
Product Parameters
Item Specification
Product capability 20-30 pcs/min
Diameter of the center tube Φ30-Φ75mm
Length of center tube Freely
Steel plate thickness 0.25-0.32mm
Motor power 3kW
Power supply 380V/50HZ
Working air pressure 0.6MPa
M/C weight 800KG
Size of main machine 1600×800×1500mm (L×W×H)
Size of paper de-coiler 1200×800×800mm (L×W×H)
Production Features
TCJY-75 Full-auto Spiral Center Tube Making Machine 0
  • The machine can easily change the diameter of screw tube in a short time
  • Cut the needed length according to customer specifications
  • Can adjust the clutch according to different thickness of the steel strip
  • The computer control machine saves production costs and working procedures with its high efficiency, steady quality and economical materials
  • Adopts hydraulic pressure drive, which has strong power and good stability
Production Applications
The machine is technically used in manufacturing the center tubes of the auto oil and fuel filters. Furthermore, the perforated/round hole spiral tube can be made as well.
TCJY-75 Full-auto Spiral Center Tube Making Machine 1
Company Profile
TCJY-75 Full-auto Spiral Center Tube Making Machine 2
Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD is a specialized firm that integrates research, development, manufacturing, marketing and after-sales service for filtration equipment manufacturing equipment. Our primary product offerings encompass a range of advanced machinery, including but not limited to fully automated reciprocating paper folding production lines, fully automated PP intermittent glue injection and wave reception production lines, fully automated paper frame gluing production lines. For more information or to schedule a demonstration, please contact us. We are committed to providing tailored solutions that meet the unique needs of our clients.
Production Packaging
TCJY-75 Full-auto Spiral Center Tube Making Machine 3 TCJY-75 Full-auto Spiral Center Tube Making Machine 4
FAQ
Can you give me a discount price?
Discounts depend on order volume. Larger quantities qualify for greater discounts.
How do you guarantee your quality?
Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.
How about your after-sales service?
We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
