TCPG-350 Panel Servo Paper Pleating Production Line

1
MOQ
7000
Price
TCPG-350 Panel Servo Paper Pleating Production Line
Features Gallery Product Description Request A Quote
Features
Specifications
Power Source: Electric
Machinery Test Report: Provided
Guarantee Time: 1 Year
Dimension: AH,China
Computerized: Yes
Highlight:

Paper Pleating Production Line

,

Servo Pleating Production Line

,

Panel Pleating Production Line
Basic Infomation
Place of Origin: Anhui ,China
Brand Name: Bengbu Tongchen
Model Number: TCPG-350
Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15-45 Days
Payment Terms: T/T
Supply Ability: Unlimited Supply
Product Description

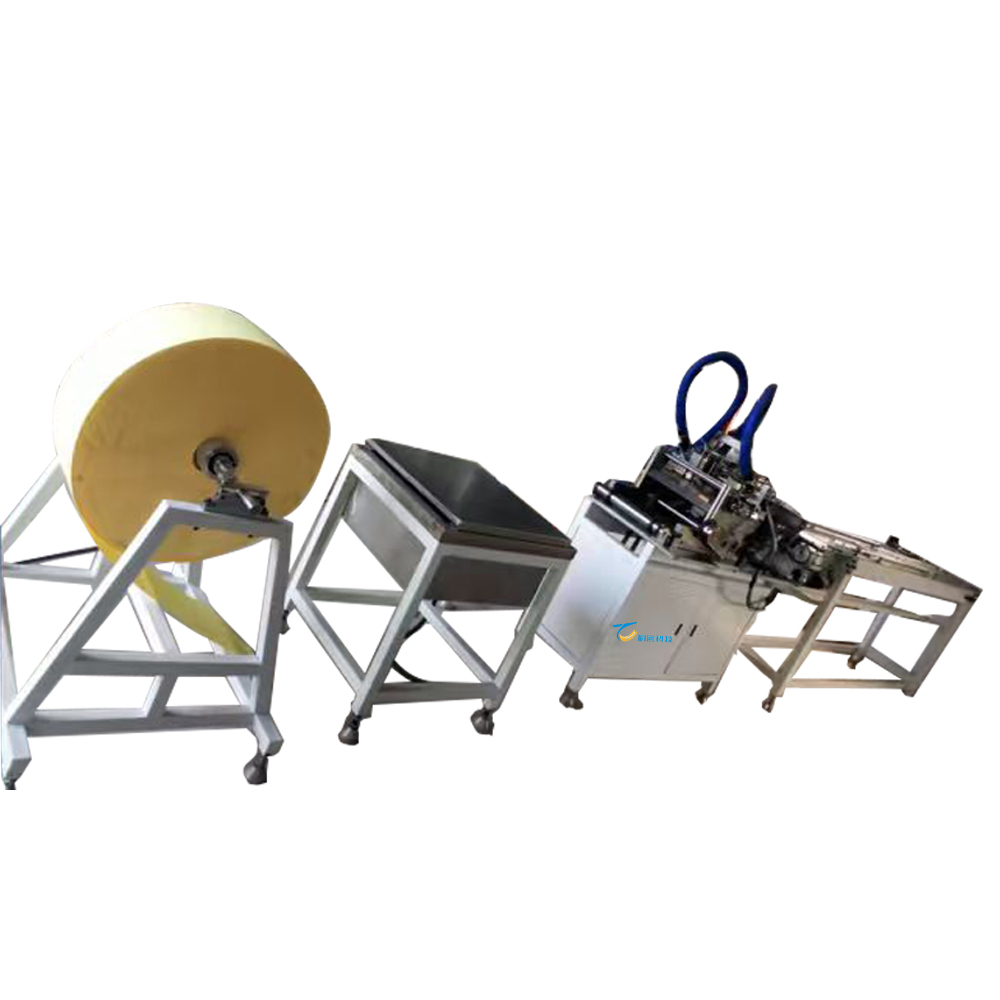

TCPG-350 Panel Servo Paper Pleating Production Line

TCPG-350 Panel Servo Paper Pleating Production Line 0

Product Parameters
Item Specification
Paper Folding Height 20–60 mm
Maximum Filter Paper Width 90–320 mm
Production Speed 5–50 m/min
Conveyor Belt Speed

0–8 m/min
Hot Melt Glue Machine Capacity 10L
Machine Dimensions (L×W×H) 6200mm × 16000mm × 1400mm
Total Power Consumption 9 kW
Compressed Air Supply 1 m³/min
Main Motor Power 1.1 kW
Conveyor Motor Power 0.55 kW
Glue Injection Servo Motor Power 2×400 kW
Glue Machine Power 6.4 kW
Machine Weight 600 kg
Operating Air Pressure 0.6 MPa
Power Supply Voltage 380V / 50Hz
Product Features
  • Utilizes the most advanced spray system replacing traditional steam heating
  • Paper folding height: 20–60mm (requires roller replacement)
  • Corrugation flatness standard: exceptionally smooth fold height
  • Corrugation spacing: uniform and consistent spacing with imported roller machining technology
  • Two glue guns equipped with dual servo motors
  • PLC / touchscreen control supporting right angle, oblique angle, and double-side gluing
  • Guide rail adjustment system for easy operation
  • 30-minute preheating time with timer switch
  • Full touchscreen control system, among China’s most advanced equipment
Configuration List
  • Motor Configuration: Fully digital servo motors (Brand: Delta, Taiwan); three-phase motors (Brand: Huanxin, Taiwan).
  • Touchscreen Configuration: 7-inch touchscreen, Brand: Taiwan Weintek.
  • PLC Programmable Controller: Four-axis control unit, Brand: Taiwan Delta.
  • Frequency Inverter: Domestic brand Kerun.
  • Electrical Components: Custom high-precision proximity switches, imported proximity switches, relays, and small electrical parts.
  • Mechanical Components: Shafts with electroplated hard chrome; other components treated with standard blackening.
  • Glue Machine System: One 10KG glue machine, two independent glue hoses, and two glue guns.
  • Instrument Standard Parts: Instruments arranged logically and easy to disassemble.
Product Applications
  • Automotive panel air filters
  • HVAC and household air purification filters
  • Industrial air filtration products
  • Pleated filter paper for environmental and dust-removal systems
  • Production of flat-panel, square, and rectangular filter media

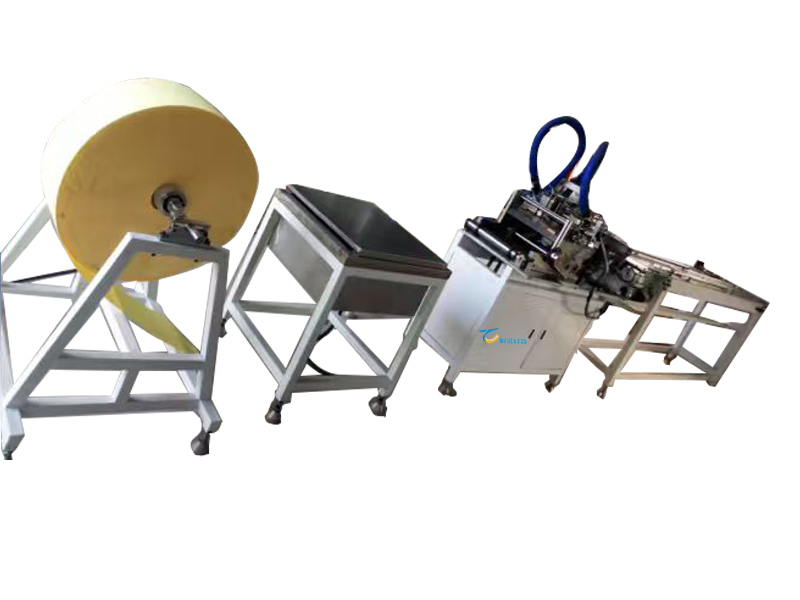

Details Images

TCPG-350 Panel Servo Paper Pleating Production Line 1

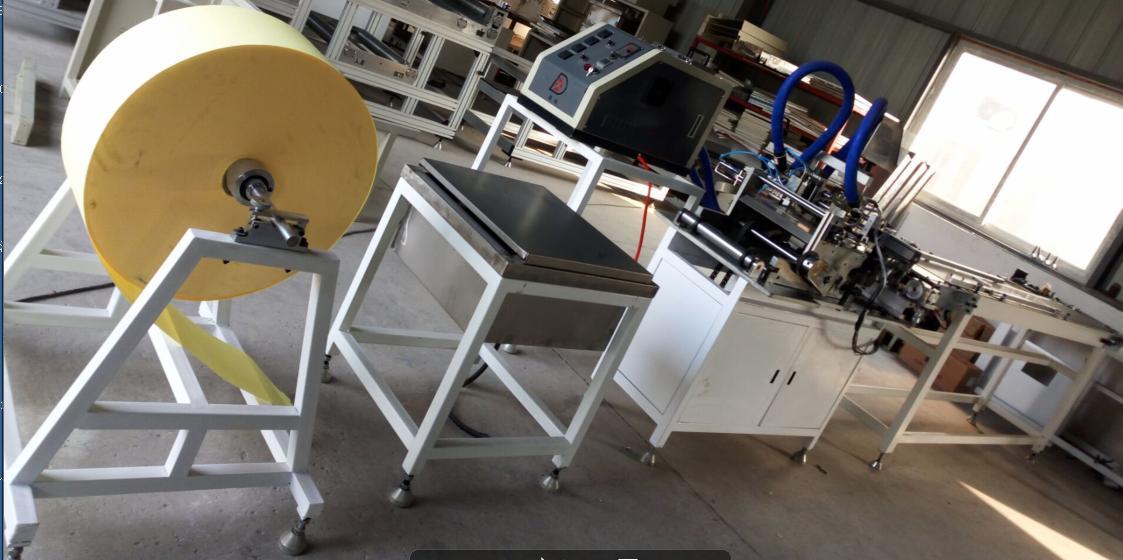

Company Profile
TCPG-350 Panel Servo Paper Pleating Production Line 2

Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD is a specialized firm that integrates research, development, manufacturing, marketing and after-sales service for filtration equipment manufacturing equipment. Our primary product offerings encompass a range of advanced machinery, including but not limited to fully automated reciprocating paper folding production lines, fully automated PP intermittent glue injection and wave reception production lines, fully automated paper frame gluing production lines. For more information or to schedule a demonstration, please contact us. We are committed to providing tailored solutions that meet the unique needs of our clients.

Product Packaging
TCPG-350 Panel Servo Paper Pleating Production Line 3 TCPG-350 Panel Servo Paper Pleating Production Line 4
FAQ
Can you give me a discount price?

Discounts depend on order volume. Larger quantities qualify for greater discounts.

How do you guarantee your quality?

Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.

How about your after-sales service?

We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
