TCPU-20F Full-auto Casting Machine on Seal Packing in Filter Element

1
MOQ
5000
Price
TCPU-20F Full-auto Casting Machine on Seal Packing in Filter Element
Features Gallery Product Description Request A Quote
Features
Specifications
Power Source: Electric
Machinery Test Report: Provided
Guarantee Time: 1 Year
Dimension: AH,China
Computerized: Yes
Highlight:

panel air filter production line

,

pleating production line for air filters

,

TCPG-350 air filter manufacturing line
Basic Infomation
Place of Origin: Anhui Bengbu
Brand Name: Bengbu Tongchen
Model Number: TCPU-20F
Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15-45 Days
Payment Terms: T/T
Supply Ability: Unlimited Supply
Product Description

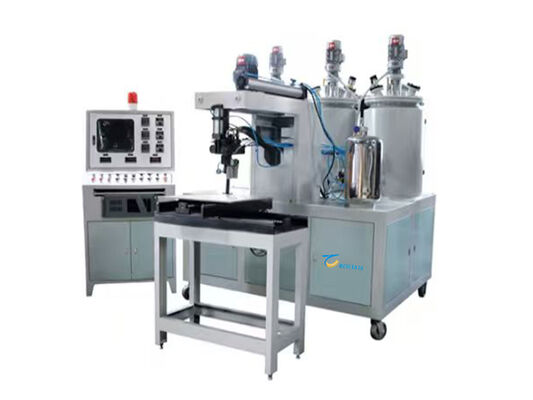

TCPU-20F Full-auto Casting Machine on Seal Packing in Filter Element
TCPU-20F Full-auto Casting Machine on Seal Packing in Filter Element 0
Product Parameters
Item Specification
Total Discharge Rate 10-40 g/s
Mixing Ratio A:B = 1-2:1 (adjustable)
Automatic post-pouring head retraction distance 450mm
Max pouring size (square cores) 400×300mm (L×W)
Max pouring diameter (circular cores) 350mm
Movement speed 2-10 m/min
Total power consumption 8kW
Power supply voltage 380V/50Hz
Machine weight 1000kg
Machine dimensions 1500×2000×2100mm (L×W×H)
Product Features
  • Digital instrument display with computerized operation
  • Stable and precise metering with automatic temperature control
  • Innovative tank structure with non-polar mixing adjustment
  • Unique head design with precision reflow fine-tuning
  • Equipped with X-Y axis rotary workbench, capable of casting square, round, and irregular-shaped air filters
Configuration List
  • Tank: A three-layer stainless steel sealed tank with stirring and automatically constant temperature
  • Pump: Low-speed, high-precision imported metering pump and precise transmission and display devices
  • Head: Automatic three-position switching (pouring, reflux, cleaning); pneumatic displacement with programmable automatic cleaning after pouring
  • Workbench: Automatically controlled universal workbench for circular, square, or special-shaped filter core pads
  • Control System: Temperature, pressure, and casting volume automatically regulated
Product Applications
  • Automotive air filters, including engine and cabin filters
  • Industrial air filters and dust collector filter elements
  • HVAC and environmental protection filters
  • Round, square, and irregular-shaped filter cores requiring PU gasket or sealing
Details Images

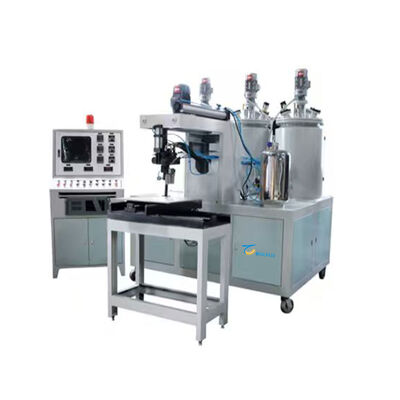

TCPU-20F Full-auto Casting Machine on Seal Packing in Filter Element 1
Company Profile
TCPU-20F Full-auto Casting Machine on Seal Packing in Filter Element 2

Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD is a specialized firm that integrates research, development, manufacturing, marketing and after-sales service for filtration equipment manufacturing equipment. Our primary product offerings encompass a range of advanced machinery, including but not limited to fully automated reciprocating paper folding production lines, fully automated PP intermittent glue injection and wave reception production lines, fully automated paper frame gluing production lines. For more information or to schedule a demonstration, please contact us. We are committed to providing tailored solutions that meet the unique needs of our clients.

Product Packaging
TCPU-20F Full-auto Casting Machine on Seal Packing in Filter Element 3 TCPU-20F Full-auto Casting Machine on Seal Packing in Filter Element 4
FAQ
Can you give me a discount price?

Discounts depend on order volume. Larger quantities qualify for greater discounts.

How do you guarantee your quality?

Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.

How about your after-sales service?

We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
