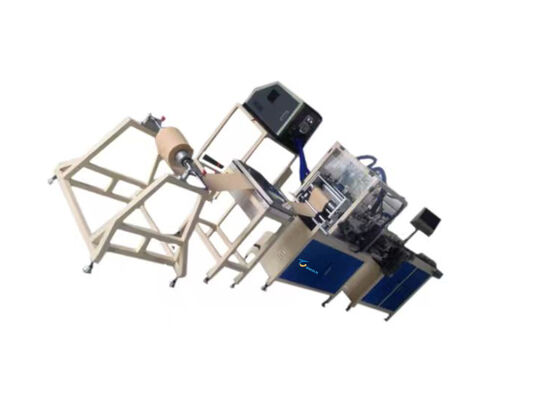

TCPG-350 Panel Air Filter Paper Pleating Production Line

1
MOQ
7000
Price
TCPG-350 Panel Air Filter Paper Pleating Production Line
Features Gallery Product Description Request A Quote
Features
Specifications
Power Source: Electric
Machinery Test Report: Provided
Guarantee Time: 1 Year
Dimension: AH,China
Computerized: Yes
Highlight:

Paper Pleating Production Line

,

Panel Air Filter Pleating Production Line

,

Panel Air Filter Pleating Line
Basic Infomation
Place of Origin: Anhui ,China
Brand Name: Bengbu Tongchen
Model Number: TCPG-350
Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15-45 Days
Payment Terms: T/T
Supply Ability: Unlimited Supply
Product Description
TCPG-350 Panel Air Filter Paper Pleating Production Line

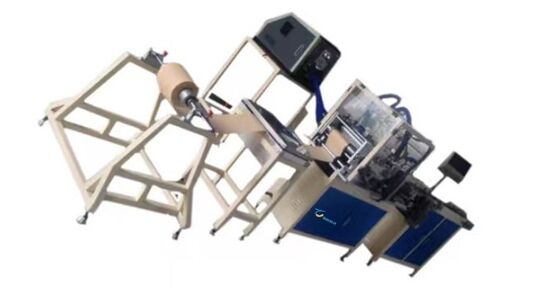

TCPG-350 Panel Air Filter Paper Pleating Production Line 0

Product Parameters
Item Specification
Width 90–320mm
Pleating Height 20–58mm
Production Speed 5–25m/min (adjustable)
Temperature Range 0–300°C
Heater Power 8.5kW
Transmission Power of Pleating Machine 0.75kW
Conveyor Belt Transmission Power 0.25kW
Conveyor Belt Speed

0–5m/min (adjustable)
Working Air Pressure 0.6MPa
Power Supply Voltage 380V / 50Hz
Machine Weight 1100kg
Machine Size (L×W×H) 7500 × 950 × 1750mm
Product Features
  • Computer-Controlled Transmission System
    Both the work speed of the machine and the transmission speed of the conveyor belt are controlled by computer, and can be easily adjusted.
  • High-Precision Roller Forming
    Both impression and bubble formation are finished on the identical pairs of rollers with high precision.
  • Automatic Heating & Process-Based Temperature Control
    The temperature can be predetermined in accordance with the requirement of the technological process.
    When the pleating machine runs, the heater will start to work automatically.
  • Paper Protection Spray Device
    It adopts the spray device, which is advantageous to prevent the paper from breaking when it is marked by rollers.
  • Fast Melting & Frequency-Controlled Glue Dispensing
    Melt quickly, and the glue dispensing quantity can be easily controlled by frequency converter.
  • Pressure Control Unit for Safety
    Set pressure control unit in glue feeding circuit to ensure circuit safety.
  • Independent Temperature-Controlled Glue Hose & Spray Nozzle
    Both the glue hose and spray nozzle adopt independent temperature control for easy operation.
    They also support application on inclined surfaces.
Configuration List

Paper holder

Heater

Water steam device

Pleating machine

Hot-melt glue machine

Belt conveyor

Automatic counting system

Product  Applications
  • Car panel air filters
  • Square automotive air filter elements
  • Flat panel filter media used in passenger vehicles
  • Cabin air filter pre-pleating (depending on material)
  • HVAC panel filter media processing (optional)
  • This equipment is suitable for large-scale, stable, and precise filter material processing in automotive filtration factories.
Details Images

TCPG-350 Panel Air Filter Paper Pleating Production Line 1

Company Profile
TCPG-350 Panel Air Filter Paper Pleating Production Line 2

Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD is a specialized firm that integrates research, development, manufacturing, marketing and after-sales service for filtration equipment manufacturing equipment. Our primary product offerings encompass a range of advanced machinery, including but not limited to fully automated reciprocating paper folding production lines, fully automated PP intermittent glue injection and wave reception production lines, fully automated paper frame gluing production lines. For more information or to schedule a demonstration, please contact us. We are committed to providing tailored solutions that meet the unique needs of our clients.

Product Packaging
TCPG-350 Panel Air Filter Paper Pleating Production Line 3 TCPG-350 Panel Air Filter Paper Pleating Production Line 4
FAQ
Can you give me a discount price?

Discounts depend on order volume. Larger quantities qualify for greater discounts.

How do you guarantee your quality?

Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.

How about your after-sales service?

We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
