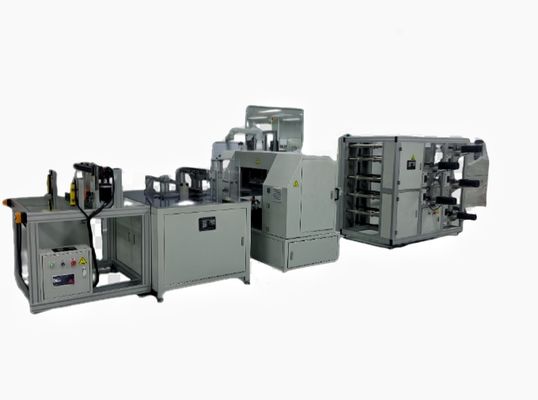

220V Filter Paper Folding Machine Automatic Servo Filter Production Line 5 Layer Feeding Rack

Key Advantages: Servo-Driven Precision at Its Best

1. Multi-Layer Precision Technology

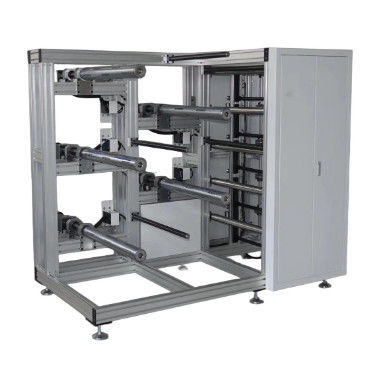

• 5-Layer Synchronized Feeding: Handles 1-5 layers of materials (filter paper/film/composites) with 450mm max roll diameter, boosting efficiency by 400% vs. single-layer systems.
• INOVANCE Servo System: 5 sets of full-digital servo motors + Taiwanese high-precision reducers enable ±0.2mm positioning accuracy and 0.1° folding angle adjustment for medical/electronics-grade precision.

2. Intelligent Temperature & Speed Control

• Precision Heating: Dual heating plates (6 heating zones) with 0-260°C temperature range (±2°C accuracy) for quick bonding of heat-sensitive materials (PP/PET).
• Electronic Cam Control:  5-axis PLC + 10" HMI allows stepless speed adjustment (0-200 folds/min) and fold height (6-70mm), supporting 20+ folding modes.

3. Industrial-Grade Durability

• Heavy-Duty Structure: Reinforced steel-aluminum frame with powder coating; chrome-plated shafts (HV1000+ hardness) for 100,000+ hours of wear resistance.
• Modular Design: 3 adjustable vertical cutting blades + quick-release horizontal cutter, the maintenance time is less than 30 minutes.

Applications

• Medical: Mask filter folding, catheter tubing, surgical dressing lamination
• Electronics: Lithium battery separator folding, FPC shaping, sensor gasket processing
• Automotive: Air filter precision folding, soundproofing material lamination
• Packaging: Food-grade bag hemming, industrial dust cover forming

Global Services

• Certifications: CE-compliant; FDA/ISO 13485 customization available
• Support: English manuals, remote PLC debugging, 24/7 technical support
