Name: Filter Special Aluminum Foil Paper Origami Corrugated Production Machine
Brand: Bengbu Tongchen Automation Technology Co., ltd
SKU: TC-5710
Price: 6,500.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Production Speed (Max): 0 - 30 Sheets/min

Corrugation Height: 3 Mm - 6 Mm (customizable)

Computerized: Yes

Guarantee Time: 1 Year

Highlight:

aluminum foil filter pleating machine

origami corrugated filter machine

HEPA filter production equipment

Basic Infomation

Place of Origin: Anhui,China

Brand Name: TONGCHEN

Certification: ISO

Model Number: TC-5710

Payment & Shipping Terms

Packaging Details: Wooden box

Delivery Time: 30

Payment Terms: T/T

Supply Ability: 15

Gallery

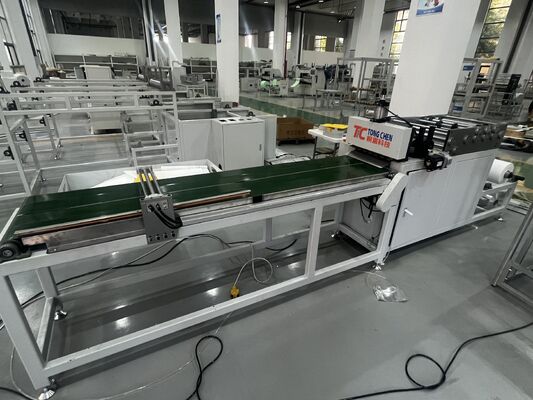

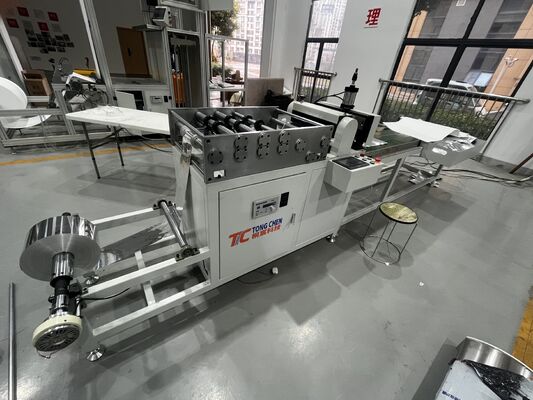

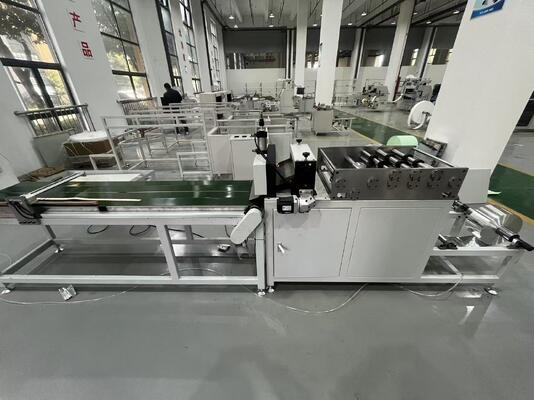

Filter Special Aluminum Foil Paper Origami Corrugated Production Machine

Product Description

Filter Special Aluminum Foil Paper Origami Corrugated Production Machine

The 350mm Corrugating Machine is a state-of-the-art industrial solution designed for precision separation of aluminum foil and paper composite materials. Featuring a durable painted frame for enhanced precision and aesthetic appeal, this equipment offers an ergonomic layout that facilitates easy roll replacement, adjustment, and operation. The complete process—from roll feeding and tension control to flanging, corrugation, sizing, cutting, and automatic discharge—is fully optimized for maximum efficiency, superior quality output, and minimal operator fatigue.

Process Workflow

Rolled aluminum foil (paper) → Coiling → Tension unwinding → Tension feeding → Flanging → Corrugation pressing (heat setting) → Automatic sizing cutting → Automatic discharge

Technical Specifications

Material Compatibility	Aluminum foil (semi-hard, flat) or paper
Maximum Roll Diameter	700 mm
Maximum Material Width	320 mm
Material Thickness	0.04 ± 0.005 mm
Corrugated Edge Width After Pressing	3 mm - 10 mm
Corrugation Height	3 mm - 6 mm (customizable)
Sizing Length	Freely adjustable
Production Speed (Maximum)	0 - 30 sheets/min
Power Supply	380V, 50Hz
Compressed Air Requirement	0.6 m³/min
Machine Dimensions (L × W × H)	3800 × 950 × 1395 mm
Motor Configuration	Three-phase motor
Mechanical Parts Treatment	Shafts: electroplated hard chrome; Others: decorative nitro-iron and black treatment
Pneumatic Components Brand	Jiahe brand, Harbin bearings
Instrument Installation	Reasonable layout, easy to remove

Industrial Applications

Production of aluminum foil corrugated separators
Manufacturing of paper-based separators
Industrial packaging materials
Electronics and battery separator sheets
Custom corrugated sheets for industrial applications

Key Advantages

High production efficiency (up to 30 sheets/min)
Fully customizable corrugation height (3-6mm) and sheet length
Stable production due to tension-controlled feeding
Ergonomic design improves operator comfort and safety
Easy maintenance with accessible and replaceable components
Suitable for both aluminum foil and paper materials
Painted frame ensures durability and precision alignment

Packaging & Delivery

Selling Units: Single item

Manufacturer Profile

Bengbu Tongchen Automation Technology Equipment Co., Ltd. is strategically located in Bengbu, China—an important transportation hub and industrial base. Our company specializes in the development, design, and production of advanced filter manufacturing equipment, providing practical and efficient solutions that meet both domestic industry trends and international quality standards.

Product Range

Paper folding equipment and rotating machines
Diesel engines and large air filter production equipment
Partitionless and partitioned filter production equipment
Pleating machines and glass fiber strip production lines
