Home /Products/HEPA Filter Pleating Machine/700 Fully automatic PP intermittent gluing production Line (the third generation)

700 Fully automatic PP intermittent gluing production Line (the third generation)

1
MOQ
$7000~10000
Price
700 Fully automatic PP intermittent gluing production Line (the third generation)
Features Gallery Product Description Request A Quote
Features
Specifications
Computerized: Yes
Guarantee Time: 1 Year
Material Width: ≤820 Mm
Folding Height: 8-100 Mm
Highlight:

fully automatic PP gluing production line

,

third generation intermittent gluing machine

,

HEPA filter pleating production equipment
Basic Infomation
Place of Origin: Anhui,China
Brand Name: TONGCHEN
Certification: ISO
Model Number: TC-5719
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 15
Product Description
700 Fully Automatic PP Intermittent Gluing Production Line (Third Generation)
Complete automated production system for air filter manufacturing with integrated gearbox and motor. Includes 1-year comprehensive warranty.
Product Overview
The High Efficiency Automatic Folding and Gluing Line is a fully integrated automated production system specifically designed for air filter manufacturing. This advanced equipment combines essential processes including filter paper feeding, precision pleating, automatic gluing, and fixed-length trimming. It replaces fragmented semi-manual operations, streamlining production of various air filters including household HVAC filters and industrial dust-removal filters.
Technical Specifications
SpecificationDetails
Warranty1 Year
ConditionNew
Weight800 kg
Place of OriginAnHui, China
Brand NameTONGCHEN
Glue ProcessStop glue precision and clean
Working Voltage380V/50/60 HZ
Air Pressure0.6 Mpa
Machine Power10 KW
Material Width≤820 mm
Distance Between Glue Lines25.4 mm
Folding Height8-100 mm
Number of Glue Lines2*26 pcs
Production Speed4-27 m/min
Hot Melt Machine Capacity50 L

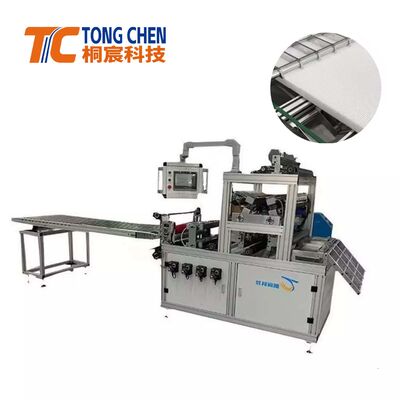

700 Fully automatic PP intermittent gluing production Line (the third generation) 0
Main Features
  • High-Speed Production - Production speed adjustable between 2-15 m/min for optimized output
  • Adjustable Folding Height - Folding height from 12 to 100 mm, controlled via touch screen
  • Precision Corrugation - Uniform corrugation spacing ensures high flatness and consistent product quality
  • Advanced Gluing System - 50L hot-melt glue machine with dual 26-point independent glue guns, each nozzle individually controlled
  • Flexible Glue Application - Supports continuous, single-sided, double-sided, surface-cutting, offset, and fold-count-controlled glue injection
  • Synchronized Conveying - Servo-controlled conveyor belt ensures consistent spacing between filter materials
  • Durable Mechanical Structure - Thickened aluminum profiles, chromium-plated shafts, and robust aluminum alloy frame provide long-term stability
  • Intelligent Touchscreen Control - 10-inch touch screen for adjusting folding speed, glue volume, and process parameters

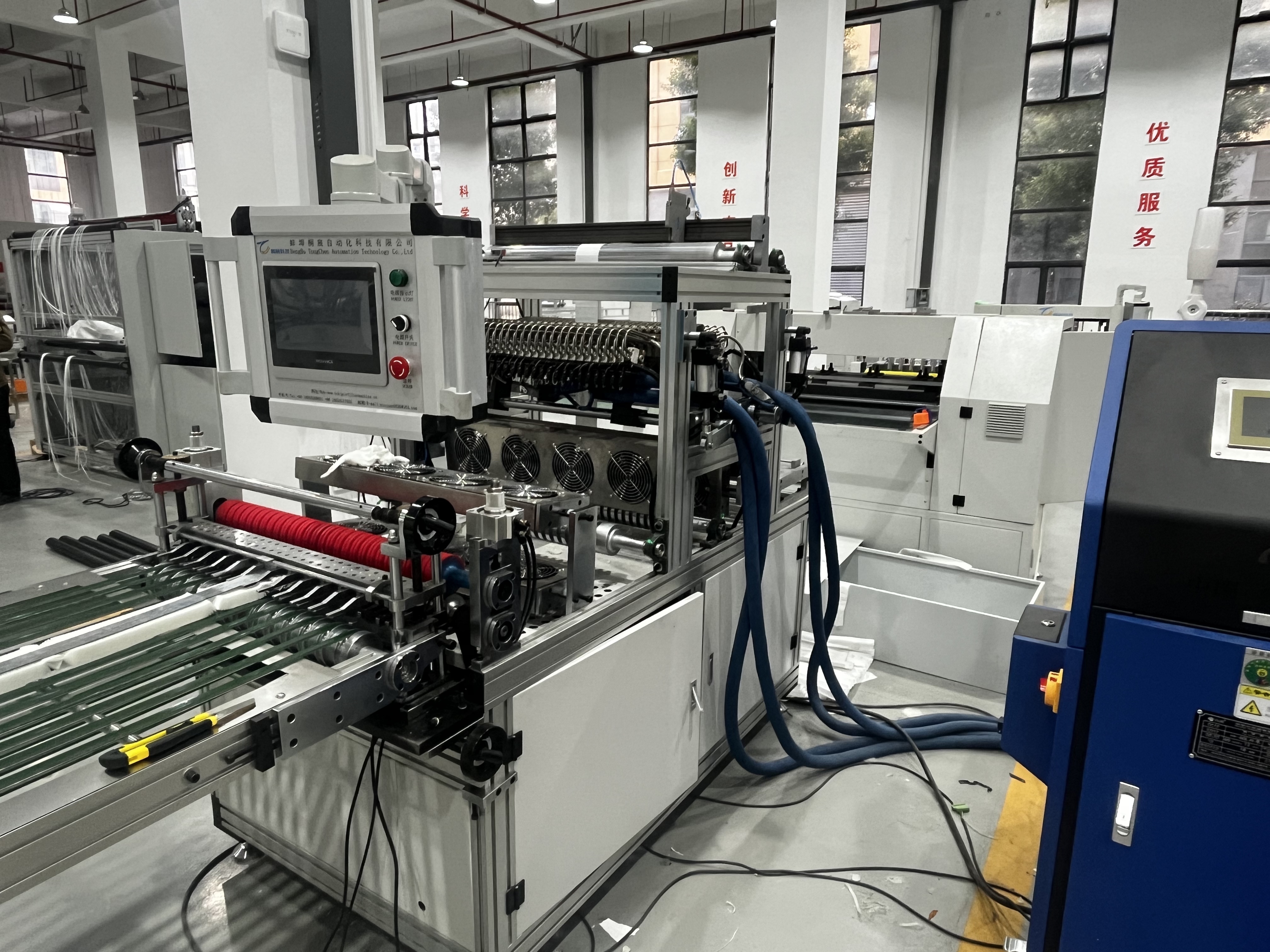

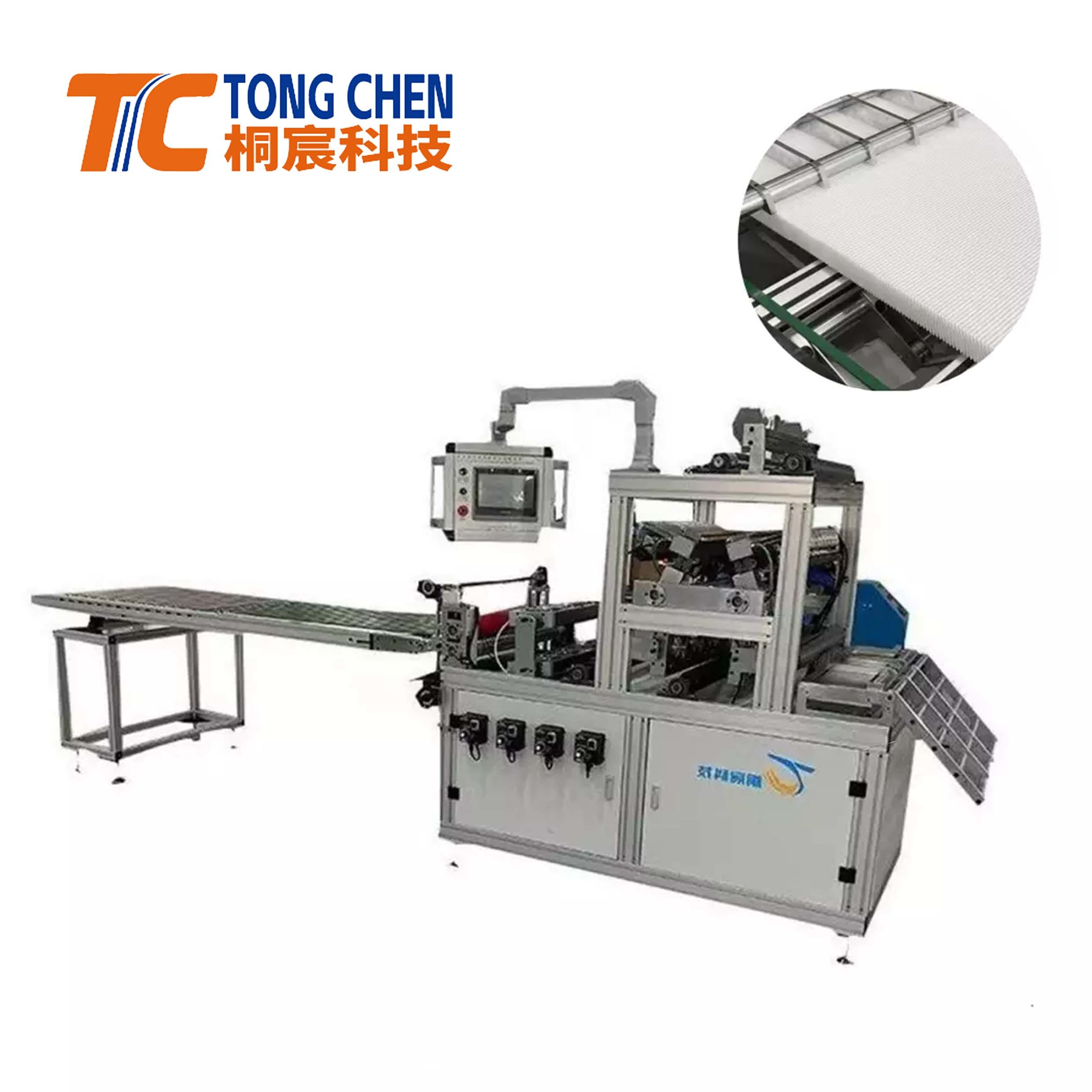

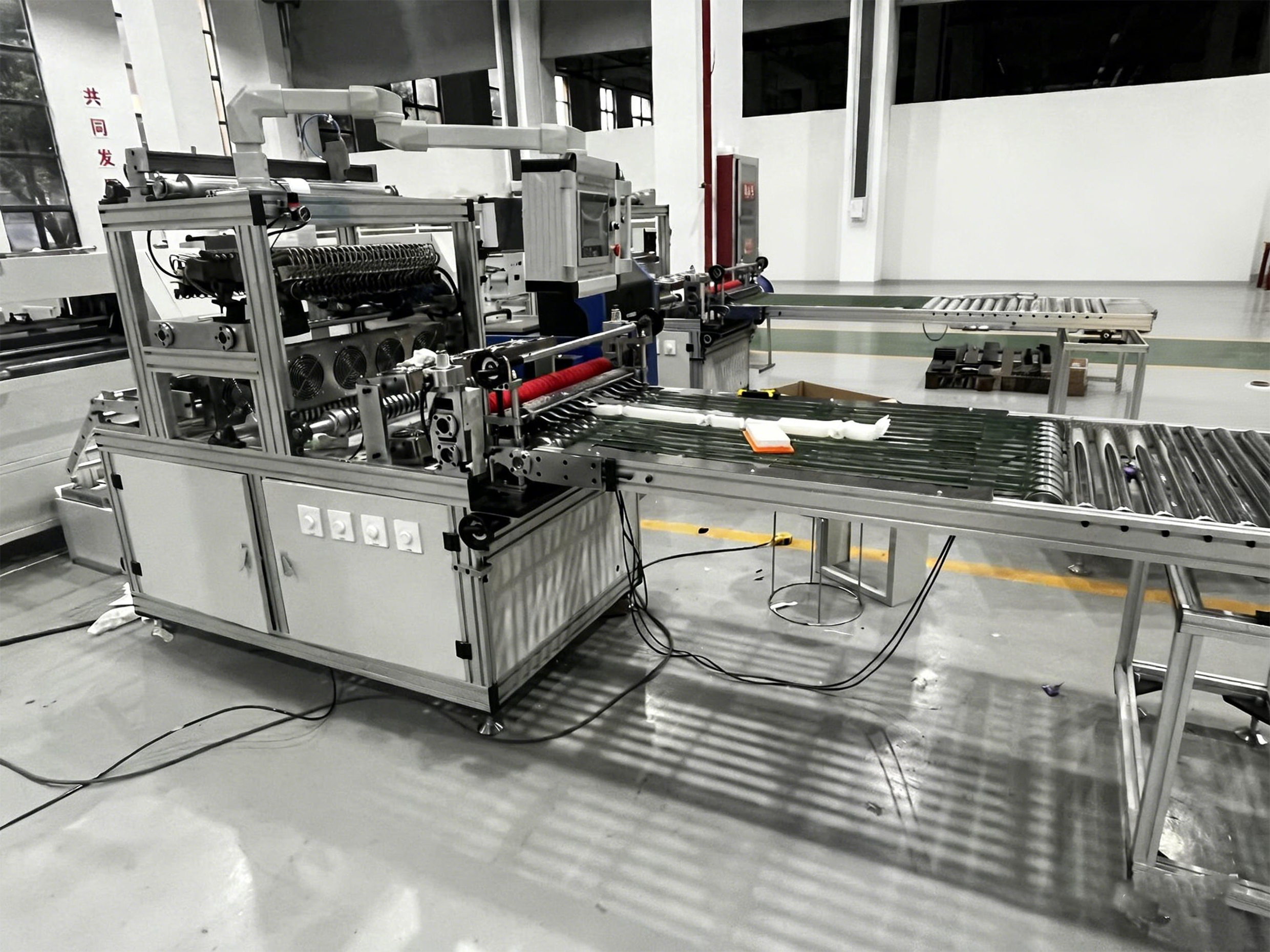

700 Fully automatic PP intermittent gluing production Line (the third generation) 1 700 Fully automatic PP intermittent gluing production Line (the third generation) 2 700 Fully automatic PP intermittent gluing production Line (the third generation) 3
Product Advantages
  • Large pleat height range for flexible filter designs
  • High-precision servo synchronization for consistent folding
  • Dual foamed-grade hot-melt glue systems for stable bonding
  • Smart control interface for easy operation and quick setup
  • Robust and reliable mechanical structure for continuous production
Manufacturer Profile
Bengbu Tongchen Automation Technology Co., Ltd. is a professional manufacturer specializing in filter production and automation equipment. We offer customized filtration production solutions backed by years of experience and advanced engineering technology.
Located in Bengbu, China—an important transportation hub and industrial base—our company provides advanced, practical, and efficient solutions that meet both domestic trends and international standards.
Company Advantages
  • Delivering innovative, efficient, and cost-effective equipment
  • Providing professional technical support and after-sales service
  • Ensuring high-quality materials and precision workmanship
  • Helping clients enhance production efficiency and product quality
Product Range
  • Paper folding equipment and rotating machines
  • Diesel engines and large air filter production equipment
  • Partitionless and partitioned filter production equipment
  • Pleating machines and glass fiber strip production lines

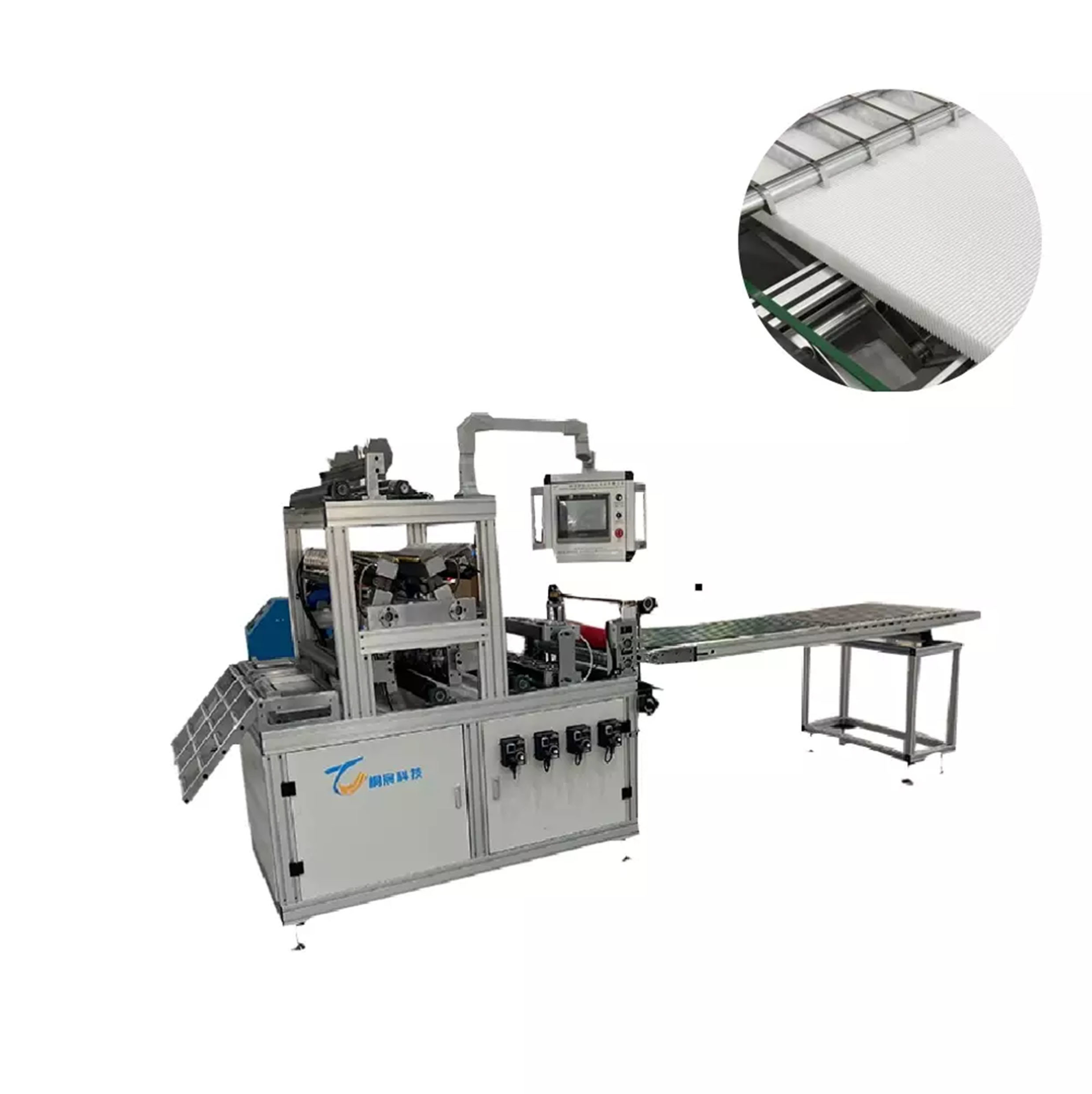

700 Fully automatic PP intermittent gluing production Line (the third generation) 4 700 Fully automatic PP intermittent gluing production Line (the third generation) 5 700 Fully automatic PP intermittent gluing production Line (the third generation) 6 700 Fully automatic PP intermittent gluing production Line (the third generation) 7
