Features

Specifications

Computerized: Yes

Guarantee Time: 1 Year

Paper Conveying Speed: 0.5 M/min - 25 M/min (adjustable)

Adjustable Width Of Filter Paper: 25 - 850mm

Maximum Product Width: 850 Mm

Folding Speed: 0 - 280 Folds/min (stepless Adjustable)

Highlight:

PP Pleated And Glue Production Line

Fully Automatic Air Filter Making Machine

PP Air Filter Making Machine

Basic Infomation

Place of Origin: Anhui,China

Brand Name: TONGCHEN

Certification: ISO

Model Number: TC-5710

Payment & Shipping Terms

Packaging Details: Wooden box

Delivery Time: 30

Payment Terms: T/T

Supply Ability: 15

Gallery

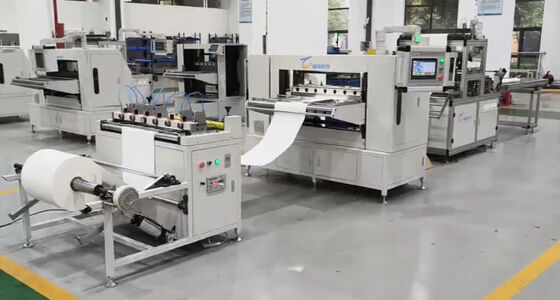

Fully Automatic PP Pleated And Glue Production Line For Air Filter Making

Product Description

Fully Automatic PP Pleated and Glue Production Line for air Filter Making

Name: Fully Automatic PP Pleated And Glue Production Line For Air Filter Making
Brand: Bengbu Tongchen Automation Technology Co., ltd
SKU: TC-5710
Price: 20,500.00 USD
Availability: InStock

This advanced production line is engineered for automotive, air purification, water filtration, and industrial filtration industries. It delivers high-speed production, consistent glue application, and flexible parameter adjustment to accommodate various filter specifications.

Technical Specifications

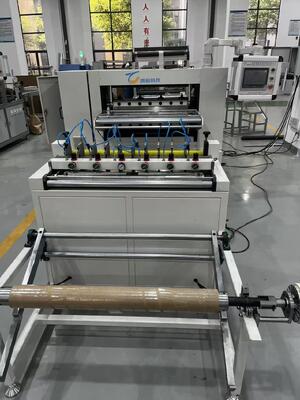

Pre-cutting Paper Conveying Machine

Parameter	Specification
Paper Conveying Speed	0.5 m/min - 25 m/min (adjustable)
Adjustable Width of Filter Paper	25 - 850mm
Power Supply Voltage	220V / 50Hz
Motor Power	0.55 kW
Working Air Pressure	0.6 Mpa
Machine Weight	250 kg
Dimensions (L × W × H)	1280 × 1100 × 1200 mm

Folding Machine

Parameter	Specification
Maximum Product Width	850 mm
Adjustable Folding Height	5-100 mm (depending on material)
Folding Speed	0 - 280 folds/min (stepless adjustable)
Power Supply Voltage	380V / 50Hz
Main Motor Power	1.5 kW
Lifting Motor Power	0.4 kW
Preheating Power	6 kW
Working Air Pressure	0.6 Mpa
Machine Weight	450 KG
Dimensions (L × W × H)	1800 × 1900 × 1650 mm

Gluing Machine

Parameter	Specification
Maximum product width	700 mm
Adjustable folding height range	6 - 55 mm
Production speed	4 - 25 m/min
Glue strip spacing	25.4 mm
Number of glue strips	2 × 26, each controlled by electronic valve
Glue-off control	Automatic intermittent glue-off function
Power supply voltage	380V / 50Hz
Total power	13 kW
Operating air pressure	0.6 MPa
Machine weight	500 kg
Glue machine dimensions (L × W × H)	160 × 100 × 130 mm
Main machine dimensions (L × W × H)	4000 × 130 × 160 mm

Main Features

Fully Automatic Operation: Integrates paper feeding, pre-cutting, counting, and folding for seamless workflow
High Precision Folding: Knife-type mechanism ensures neat and consistent pleats
Adjustable Speed and Height: Flexible configuration for different materials and filter specifications
Energy-Efficient Heating System: Fast preheating with precise temperature control
User-Friendly Control Panel: Simple operation with digital adjustments and safety design
Stable Performance: High-quality components ensure long-term durability and minimal maintenance

Applications

Automotive Air Filters

Cabin Filters

Industrial Dust Filters

Air Purification Filters

HEPA Filter Production Lines

Package

Manufacturer Profile

Bengbu Tongchen Automation Technology Co., Ltd.

We are a professional manufacturer specializing in filter production and automation equipment. We offer customized filtration production solutions backed by years of experience and advanced engineering technology.

Located in Bengbu, China—an important transportation hub and industrial base—our company provides advanced, practical, and efficient solutions that meet both domestic trends and international standards.

Company Advantages

Delivering innovative, efficient, and cost-effective equipment
Providing professional technical support and after-sales service
Ensuring high-quality materials and precision workmanship
Helping clients enhance production efficiency and product quality

Product Range

Paper folding equipment and rotating machines
Diesel engines and large air filter production equipment
Partitionless and partitioned filter production equipment
Pleating machines and glass fiber strip production lines
