Auto Filter Pleater Filter Paper Pleating Machine With High-Speed Knife-Tape System

1
MOQ
$45000~55000
Price
Auto Filter Pleater Filter Paper Pleating Machine With High-Speed Knife-Tape System
Features Gallery Product Description Request A Quote
Features
Specifications
Computerized: Yes
Guarantee Time: 1 Year
Pleating Speed: 0-140pleats/min
Adjustable Pleating Height: 8-65mm
Max Width: 800mm
After Warranty Service: 1 Year
Highlight:

Auto filter paper pleating machine

,

High-Speed filter paper pleating machine

,

Auto paper pleating machine
Basic Infomation
Place of Origin: Anhui,China
Brand Name: TONGCHEN
Certification: ISO
Model Number: TC-5569
Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 15
Product Description

Auto Filter Pleater with High-Speed Knife-Tape System

The Fully Automatic Servo Knife Folding Paper Production Line is a high-efficiency pleating system designed for precise and uniform folding of filter paper, wire mesh, and non-woven fabric. It utilizes an upper and lower knife alternation folding method, enabling adjustable folding heights and stable operation. Custom specifications are available to meet specific customer requirements.

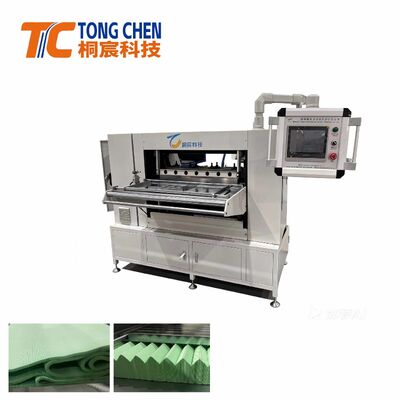

Auto Filter Pleater Filter Paper Pleating Machine With High-Speed Knife-Tape System 0
Technical Specifications
Pre-cutting Paper Conveying Machine
Paper Conveying Speed 0.5 m/min - 25 m/min (adjustable)
Adjustable Width of Filter Paper 25 - 850mm
Power Supply Voltage 220V / 50Hz
Motor Power 0.55 kW
Working Air Pressure 0.6 Mpa
Machine Weight 250 kg
Dimensions (L × W × H) 1280 × 1100 × 1200 mm
Folding Machine
Maximum Product Width 850 mm
Adjustable Folding Height 5-100 mm (depending on material)
Folding Speed 0 - 280 folds/min (stepless adjustable)
Power Supply Voltage 380V / 50Hz
Main Motor Power 1.5 kW
Lifting Motor Power 0.4 kW
Preheating Power 6 kW
Working Air Pressure 0.6 Mpa
Machine Weight 450 KG
Dimensions (L × W × H) 1800 × 1900 × 1650 mm

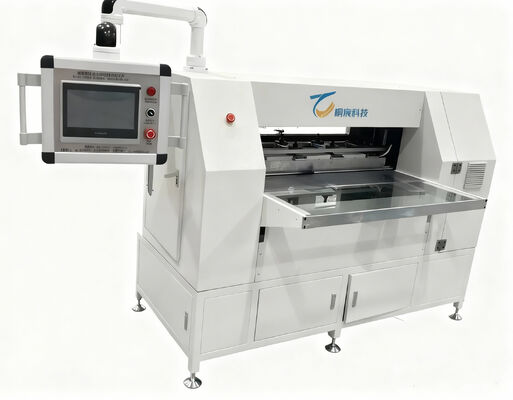

Auto Filter Pleater Filter Paper Pleating Machine With High-Speed Knife-Tape System 1
Key Features & Advantages
  • Fully Automatic Operation: Integrates paper feeding, pre-cutting, counting, and folding for smooth workflow
  • High Precision Folding: Knife-type mechanism ensures neat and consistent pleats
  • Adjustable Speed and Height: Flexible for different materials and filter specifications
  • Energy-Efficient Heating System: Fast preheating with precise temperature control
  • User-Friendly Control Panel: Simple operation with digital adjustments and safety design
  • Stable Performance: High-quality components ensure long-term durability and low maintenance

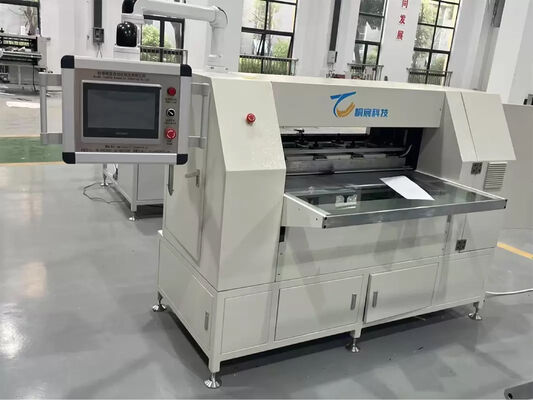

Auto Filter Pleater Filter Paper Pleating Machine With High-Speed Knife-Tape System 2
Applications
  • Automotive Air Filters
  • Cabin Filters
  • Industrial Dust Filters
  • Air Purification Filters
  • HEPA Filter Production Lines
Auto Filter Pleater Filter Paper Pleating Machine With High-Speed Knife-Tape System 3 Auto Filter Pleater Filter Paper Pleating Machine With High-Speed Knife-Tape System 4
Production Line Views
Auto Filter Pleater Filter Paper Pleating Machine With High-Speed Knife-Tape System 5

Manufacturer Profile
Bengbu Tongchen Automation Technology Equipment Co., Ltd. is strategically located in Bengbu, China—a major transportation hub and industrial center. Our company specializes in the research, development, design, and manufacturing of advanced filter production equipment, delivering practical and efficient solutions that meet both domestic market demands and international standards.
Product Range
  • Paper folding equipment and rotating machines
  • Diesel engines and large air filter production equipment
  • Partitionless and partitioned filter production equipment
  • Pleating machines and glass fiber strip production lines
We prioritize product quality and comprehensive service to enhance your brand's competitive edge in global markets. Tongchen Technology is committed to becoming your most reliable mechanical solutions provider and long-term business partner.
Auto Filter Pleater Filter Paper Pleating Machine With High-Speed Knife-Tape System 6 Auto Filter Pleater Filter Paper Pleating Machine With High-Speed Knife-Tape System 7 Auto Filter Pleater Filter Paper Pleating Machine With High-Speed Knife-Tape System 8
Tag:

Paper Pleating Production Line

Filter Production Equipment

Filter Paper Folding Machine
