Precision Fully Automatic Blade Pleating and Gluing Equipment Production Line

1
MOQ
$16000~25000
Price
Precision Fully Automatic Blade Pleating and Gluing Equipment Production Line
Features Gallery Product Description Request A Quote
Features
Specifications
Computerized: Yes
Guarantee Time: 1 Year
Paper Conveying Speed: 0.5 M/min - 25 M/min (adjustable)
Adjustable Width Of Filter Paper: 25 - 850mm
Maximum Product Width: 850 Mm
Folding Speed: 0 - 280 Folds/min (stepless Adjustable)
Highlight:

fully automatic HEPA filter pleating machine

,

precision blade pleating equipment

,

HEPA filter gluing production line
Basic Infomation
Place of Origin: Anhui,China
Brand Name: TONGCHEN
Certification: ISO
Model Number: TC-5710
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 15
Product Description

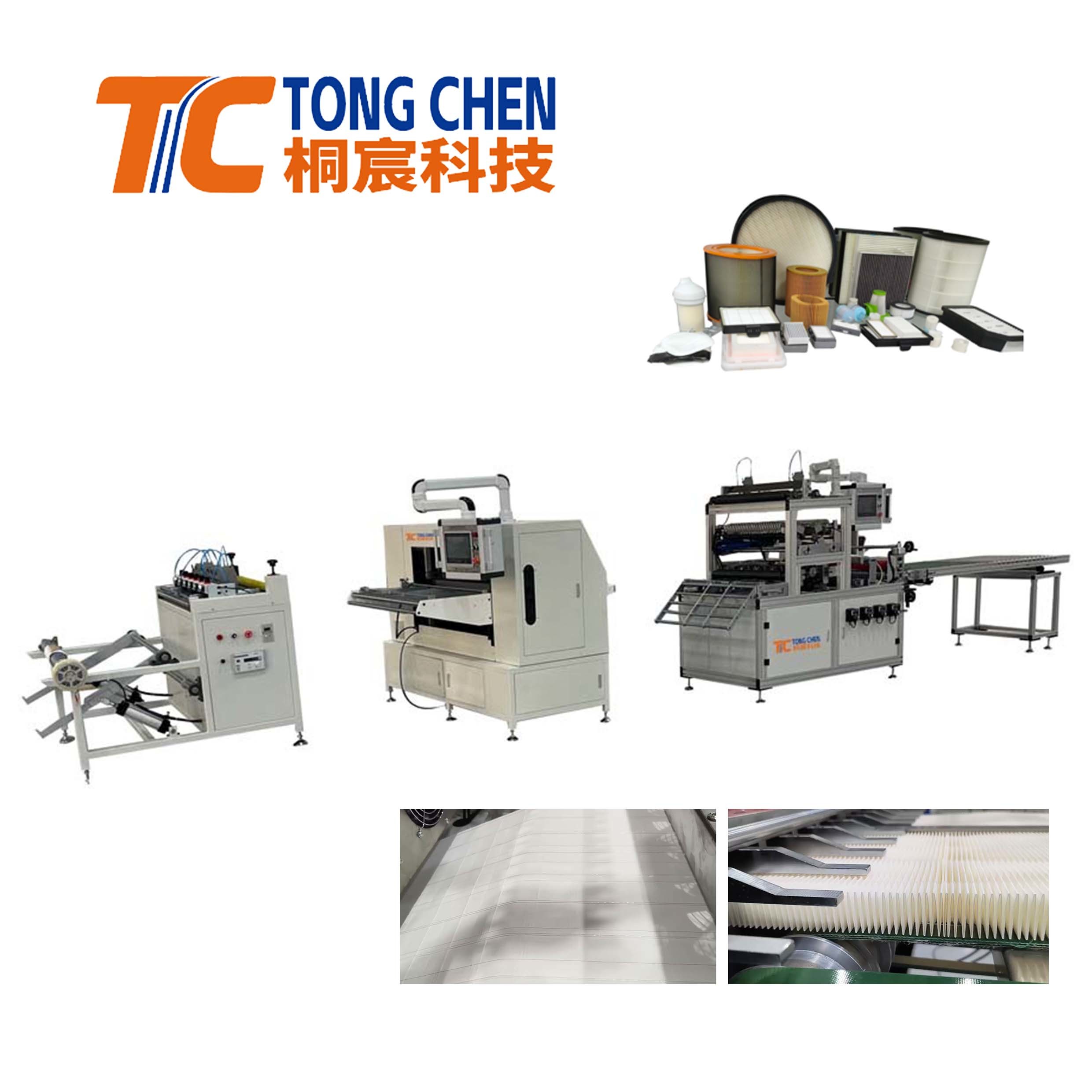

Precision Fully Automatic Blade Pleating and Gluing Equipment Production Line
This advanced production line is engineered for automotive, air purification, water filtration, and industrial filtration industries. It delivers high-speed production, consistent glue application, and flexible parameter adjustment to accommodate various filter specifications.
Precision Fully Automatic Blade Pleating and Gluing Equipment Production Line 0
Technical Specifications

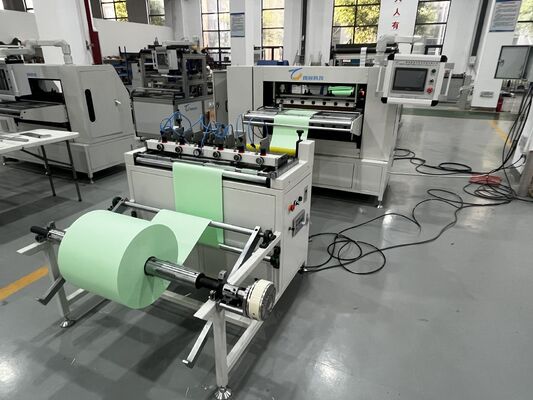

Pre-cutting Paper Conveying Machine
Parameter Specification
Paper Conveying Speed 0.5 m/min - 25 m/min (adjustable)
Adjustable Width of Filter Paper 25 - 850mm
Power Supply Voltage 220V / 50Hz
Motor Power 0.55 kW
Working Air Pressure 0.6 Mpa
Machine Weight 250 kg
Dimensions (L × W × H) 1280 × 1100 × 1200 mm

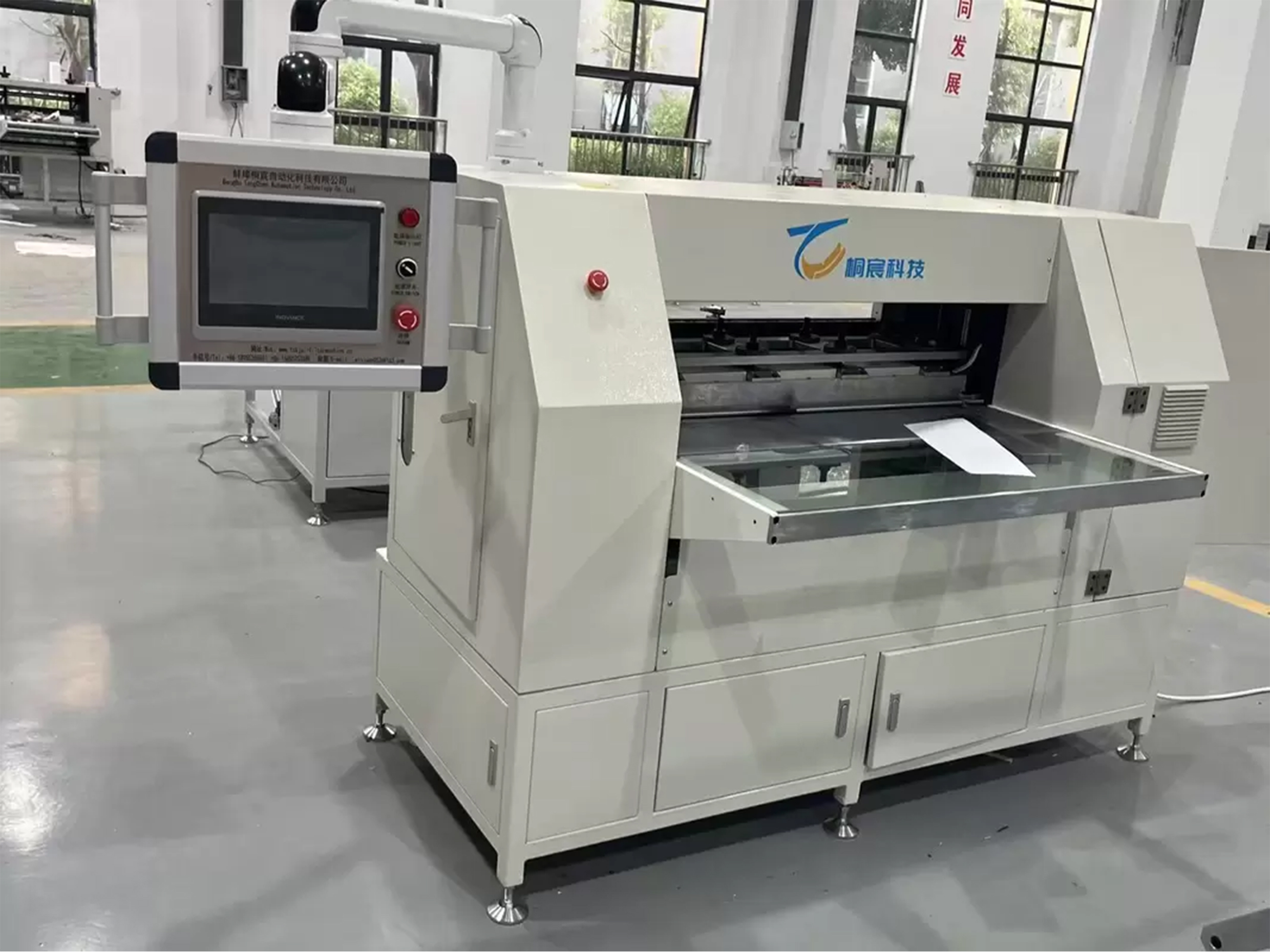

Folding Machine
Parameter Specification
Maximum Product Width 850 mm
Adjustable Folding Height 5-100 mm (depending on material)
Folding Speed 0 - 280 folds/min (stepless adjustable)
Power Supply Voltage 380V / 50Hz
Main Motor Power 1.5 kW
Lifting Motor Power 0.4 kW
Preheating Power 6 kW
Working Air Pressure 0.6 Mpa
Machine Weight 450 KG
Dimensions (L × W × H) 1800 × 1900 × 1650 mm
Gluing Machine
Parameter Specification
Maximum product width 700 mm
Adjustable folding height range 6 - 55 mm
Production speed 4 - 25 m/min
Glue strip spacing 25.4 mm
Number of glue strips 2 × 26, each controlled by electronic valve
Glue-off control Automatic intermittent glue-off function
Power supply voltage 380V / 50Hz
Total power 13 kW
Operating air pressure 0.6 MPa
Machine weight 500 kg
Glue machine dimensions (L × W × H) 160 × 100 × 130 mm
Main machine dimensions (L × W × H) 4000 × 130 × 160 mm
Precision Fully Automatic Blade Pleating and Gluing Equipment Production Line 1
Main Features

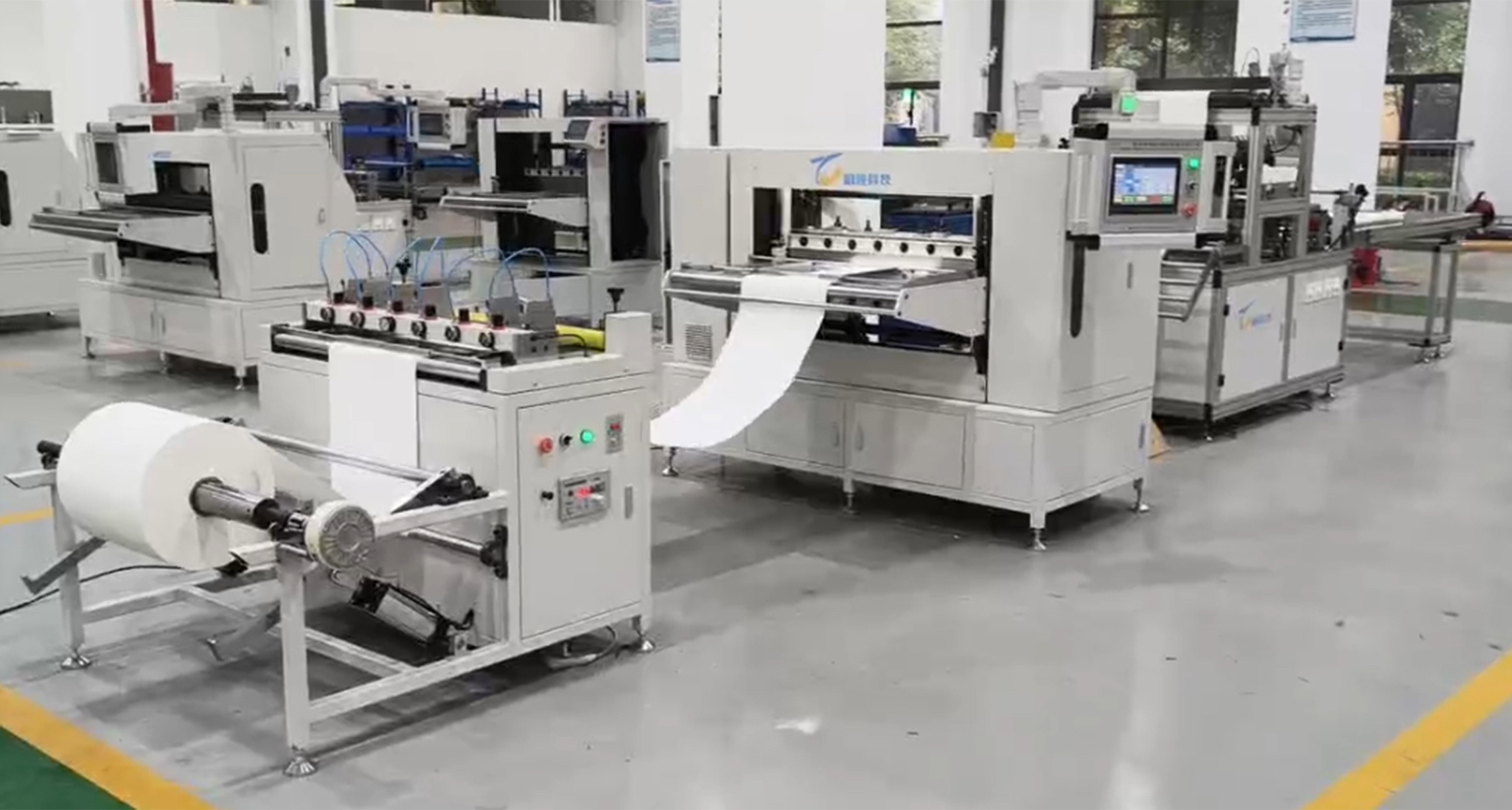

  • Fully Automatic Operation: Integrates paper feeding, pre-cutting, counting, and folding for seamless workflow
  • High Precision Folding: Knife-type mechanism ensures neat and consistent pleats
  • Adjustable Speed and Height: Flexible configuration for different materials and filter specifications
  • Energy-Efficient Heating System: Fast preheating with precise temperature control
  • User-Friendly Control Panel: Simple operation with digital adjustments and safety design
  • Stable Performance: High-quality components ensure long-term durability and minimal maintenance
Precision Fully Automatic Blade Pleating and Gluing Equipment Production Line 2
Applications
Automotive Air Filters
Cabin Filters
Industrial Dust Filters
Air Purification Filters
HEPA Filter Production Lines
Package
Precision Fully Automatic Blade Pleating and Gluing Equipment Production Line 3
Manufacturer Profile
Bengbu Tongchen Automation Technology Co., Ltd.
We are a professional manufacturer specializing in filter production and automation equipment. We offer customized filtration production solutions backed by years of experience and advanced engineering technology.
Located in Bengbu, China—an important transportation hub and industrial base—our company provides advanced, practical, and efficient solutions that meet both domestic trends and international standards.
Company Advantages
  • Delivering innovative, efficient, and cost-effective equipment
  • Providing professional technical support and after-sales service
  • Ensuring high-quality materials and precision workmanship
  • Helping clients enhance production efficiency and product quality
Product Range
  • Paper folding equipment and rotating machines
  • Diesel engines and large air filter production equipment
  • Partitionless and partitioned filter production equipment
  • Pleating machines and glass fiber strip production lines

Precision Fully Automatic Blade Pleating and Gluing Equipment Production Line 4

Precision Fully Automatic Blade Pleating and Gluing Equipment Production Line 5
