High Speed 300mm Servo Pleater Automatic Textile Folding Machine for Industrial Filtration Production

1
MOQ
$25000~28000
Price
High Speed 300mm Servo Pleater Automatic Textile Folding Machine for Industrial Filtration Production
Features Gallery Product Description Request A Quote
Features
Specifications
Computerized: Yes
Guarantee Time: 1 Year
Adjustable Width Of Filter Paper: 25 – 1050 Mm
Paper Conveying Speed: 0.5 M/min – 25 M/min (adjustable)
Maximum Product Width: Width 850 Mm
Adjustable Folding Height: 20-300 Mm (depending On Material)
Highlight:

300mm servo pleater machine

,

automatic textile folding machine

,

HEPA filter pleating equipment
Basic Infomation
Place of Origin: Anhui,China
Brand Name: TONGCHEN
Certification: ISO
Model Number: TC-5755
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 15
Product Description
High Speed 300mm Servo Pleater Automatic Textile Folding Machine
High-speed textile folding system designed for precision filter production with fully automated operation for industrial filtration applications.
Product Overview

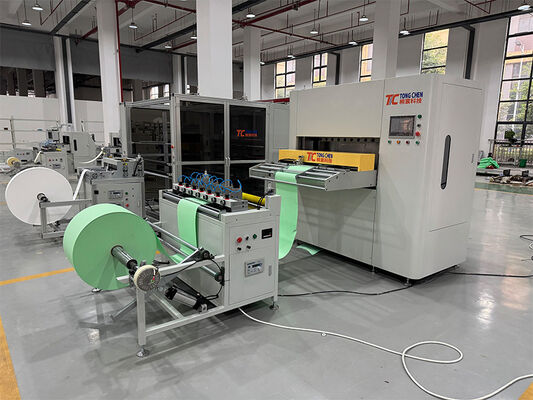

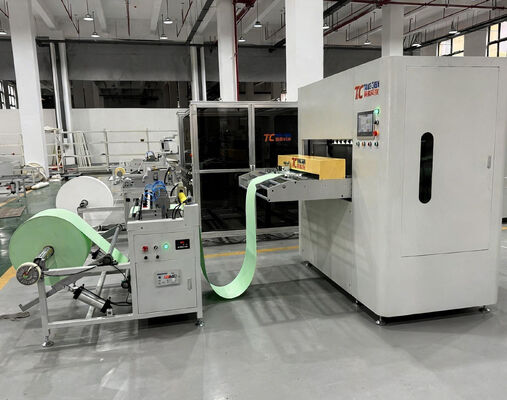

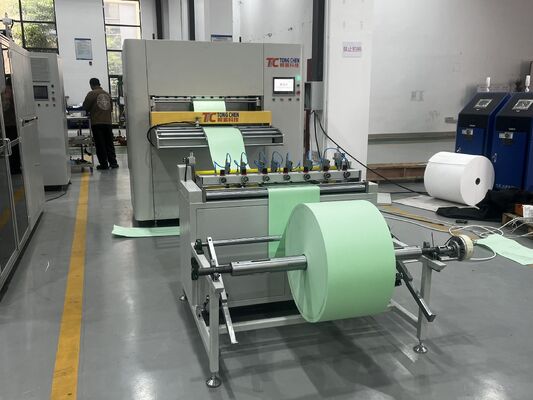

The seventh-generation fully automatic pleating production line integrates automatic feeding, pre-cutting, counting, and folding into one continuous process. This advanced system delivers high-speed, precise, and efficient pleating for various filter materials with adjustable speed and folding height, intelligent temperature control, and user-friendly digital interface.
Technical Specifications
Pre-cutting Paper Conveying Machine
ItemSpecification
Paper Conveying Speed0.5 m/min - 25 m/min (adjustable)
Adjustable Width of Filter Paper25 - 1050 mm
Power Supply Voltage220V / 50Hz
Motor Power0.55 kW
Working Air Pressure0.6 Mpa
Machine Weight250 kg
Dimensions (L × W × H)1280 × 1100 × 1200 mm
Folding Machine
ItemSpecification
Maximum Product Width850 mm
Adjustable Folding Height20-300 mm (depending on material)
Folding Speed0 - 280 folds/min (stepless adjustable)
Power Supply Voltage380V / 50Hz
Main Motor Power1.5 kW
Lifting Motor Power0.4 kW
Preheating Power6 kW
Temperature Control RangeNormal temperature - 260°C
Working Air Pressure0.6 Mpa
Machine Weight450 kg
Dimensions (L × W × H)1800 × 1900 × 1650 mm
High Speed 300mm Servo Pleater Automatic Textile Folding Machine for Industrial Filtration Production 0
Key Features & Advantages
  • Fully Automatic Operation: Integrates paper feeding, pre-cutting, counting, and folding for seamless workflow
  • High Precision Folding: Knife-type mechanism ensures neat and consistent pleats
  • Adjustable Speed and Height: Flexible for different materials and filter specifications
  • Energy-Efficient Heating System: Fast preheating with precise temperature control
  • User-Friendly Control Panel: Simple operation with digital adjustments and safety design
  • Stable Performance: High-quality components ensure long-term durability and low maintenance
Applications
  • Automotive Air Filters
  • Cabin Filters
  • Industrial Dust Filters
  • Air Purification Filters
  • HEPA Filter Production Lines
Packaging & Delivery
Selling Units: Single item
High Speed 300mm Servo Pleater Automatic Textile Folding Machine for Industrial Filtration Production 1
Manufacturer Profile
Bengbu Tongchen Automation Technology Equipment Co., Ltd. is located in Bengbu, China—an important transportation hub and industrial base. Our company specializes in the development, design, and production of filter manufacturing equipment, providing advanced, practical, and efficient solutions that meet both domestic trends and international standards.
Product Range
  • Paper folding equipment and rotating machines
  • Diesel engines and large air filter production equipment
  • Partitionless and partitioned filter production equipment
  • Pleating machines and glass fiber strip production lines
High Speed 300mm Servo Pleater Automatic Textile Folding Machine for Industrial Filtration Production 2 High Speed 300mm Servo Pleater Automatic Textile Folding Machine for Industrial Filtration Production 3 High Speed 300mm Servo Pleater Automatic Textile Folding Machine for Industrial Filtration Production 4
