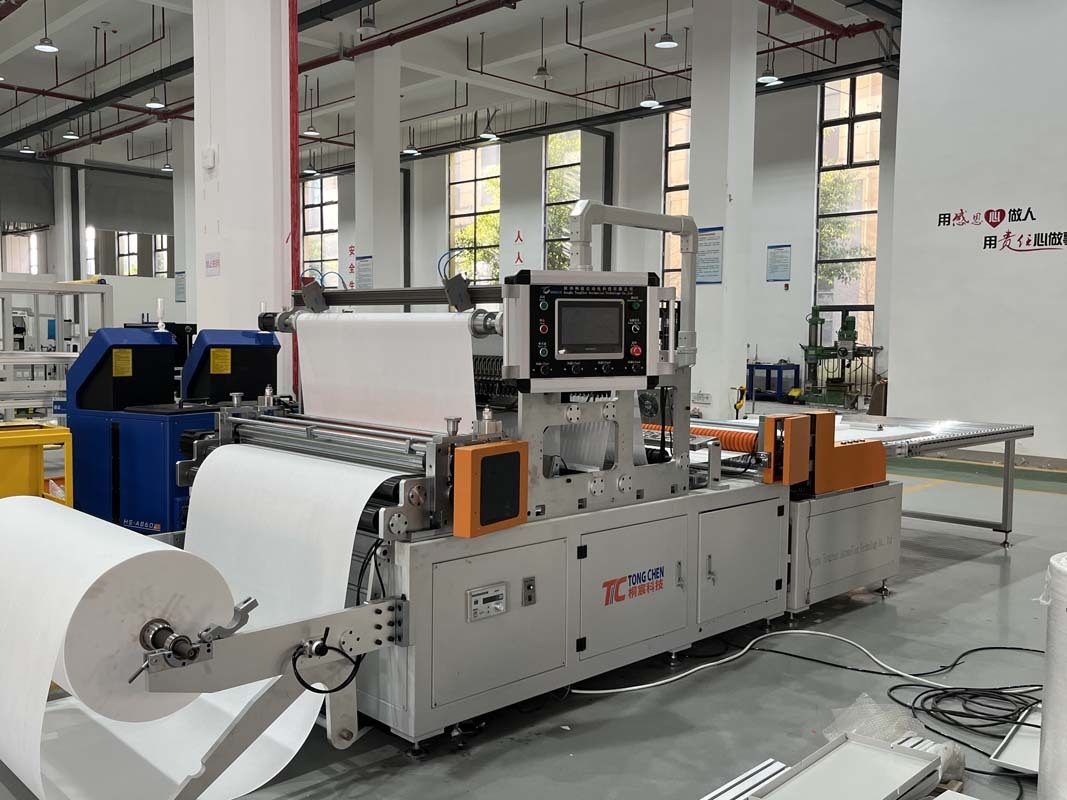

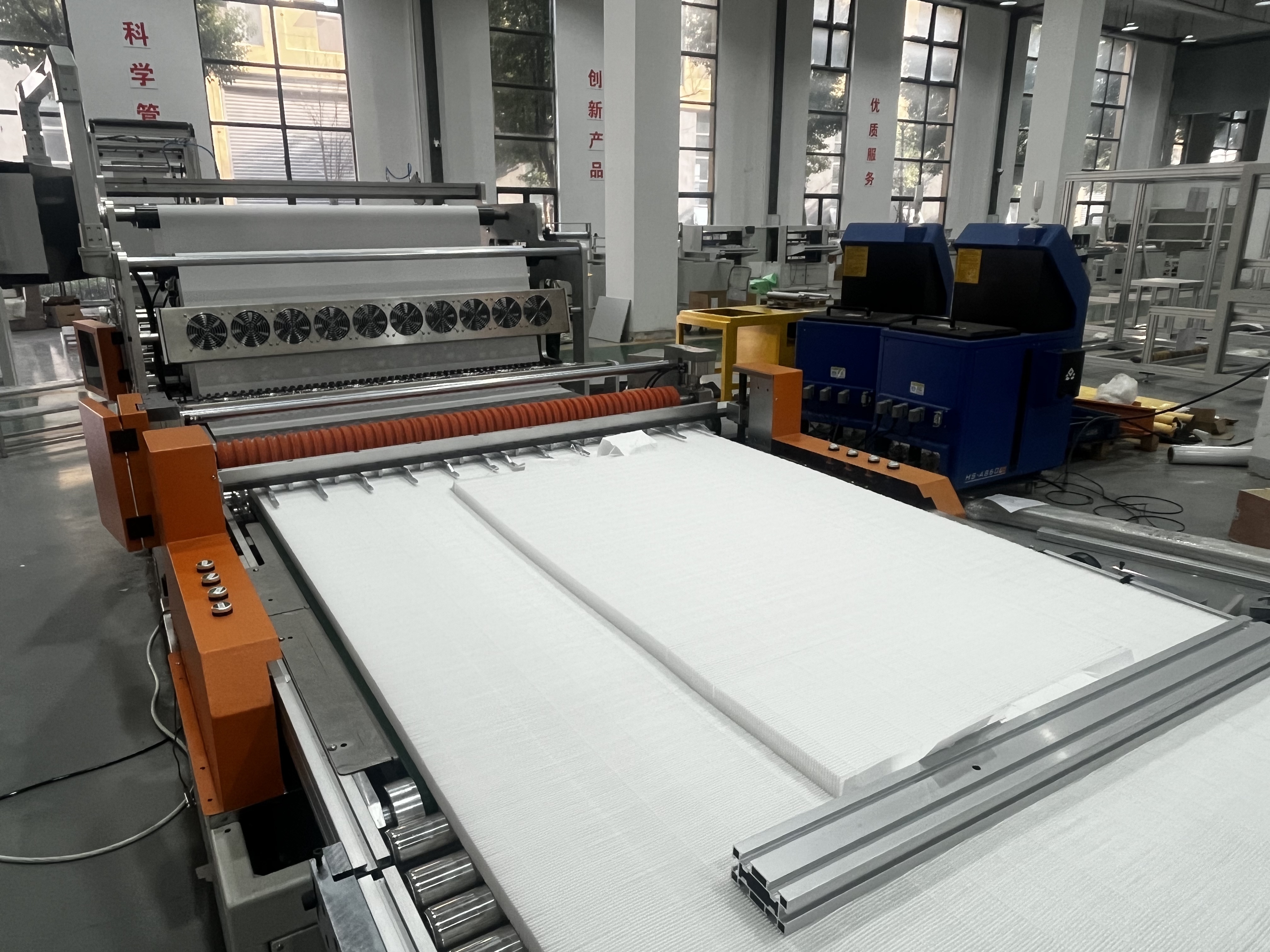

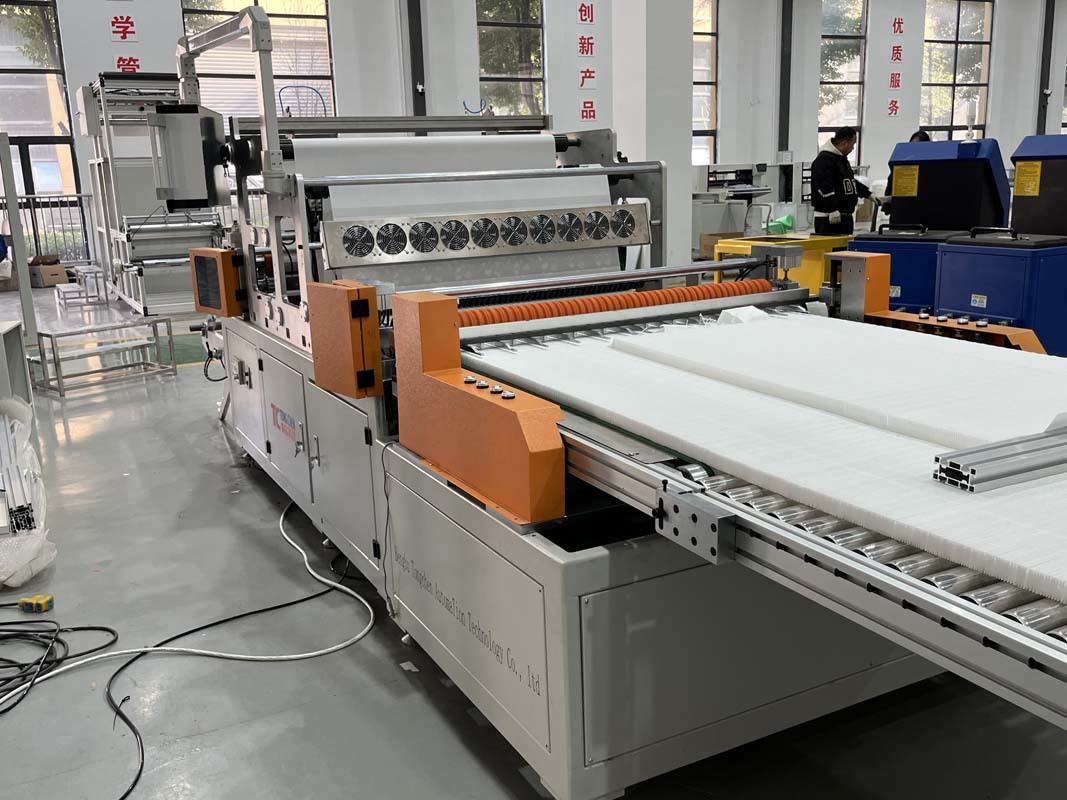

300mm Pleat Height Mini HEPA Pleating And Gluing Production Line

1
MOQ
$32000~37000
Price
300mm Pleat Height Mini HEPA Pleating And Gluing Production Line
Features Gallery Product Description Request A Quote
Features
Specifications
Folding Height Range: 20-300 Mm (set Via Display Screen)
Max Folding Width: 1300 Mm
Computerized: Yes
Guarantee Time: 1 Year
Highlight:

300mm HEPA filter pleating machine

,

mini HEPA pleating production line

,

HEPA filter gluing machine with warranty
Basic Infomation
Place of Origin: Anhui,China
Brand Name: TONGCHEN
Certification: ISO
Model Number: TC-5719
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 15
Product Description
300mm Pleat Height Mini HEPA Pleating And Gluing Production Line
This fully automatic system is engineered for continuous folding and gluing of HEPA and mini-pleat filter materials. It supports a maximum folding width of 1300mm and a pleat height range of 20-300mm, providing stable operation, uniform spacing, and high production efficiency. This machine is ideal for manufacturing high-efficiency air filters, automotive filters, and other precision pleated filtration products.
Technical Specifications
Max Folding Width 1300 mm
Folding Height Range 20-300 mm (set via display screen)
Corrugation Flatness Standard Folding height is flat; spacing uniform and consistent
Production Speed 2-15 m/min
Power Controller 1 set
Servo Motors 1.3 kW × 2 sets; 4 kW × 1 set
Servo Motors (Auxiliary) 0.75 kW × 3 sets
High-Precision Reducers 6 sets
Hot-Melt Glue Machine Capacity 50 L × 2 (Foamed-grade gluing machines)
Glue Gun Two sets of 50-point independent glue components with separate solenoid valve control
Glue Line Spacing 25.4 mm

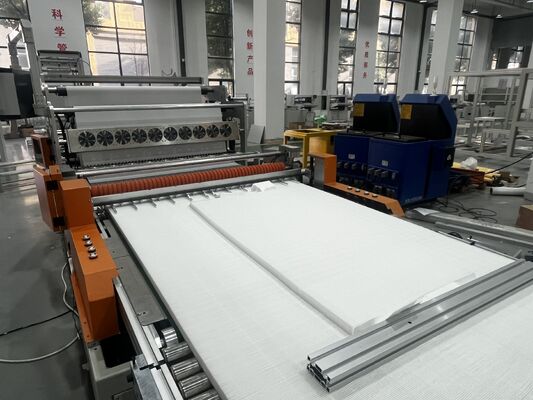

300mm Pleat Height Mini HEPA Pleating And Gluing Production Line 0
Main Features
  • Wide Folding Capacity: Maximum folding width up to 1300 mm, suitable for large filter materials
  • Adjustable Pleat Height: 20-300 mm, freely set through the control display
  • Stable Corrugation Quality: Ensures uniform spacing and flat pleats
  • Speed Flexibility: Production speed adjustable from 2-15 m/min
  • Multi-Servo Drive System: 6 high-precision reducers and multiple servo motors ensure smooth motion and accuracy
  • Dual Foamed-Grade Glue System: Two 50L glue machines provide stable and efficient glue application
  • Independent Glue Control: Each glue point controlled separately by solenoid valves
  • Precise Glue Line Spacing: 25.4mm spacing ensures even bonding and neat pleats
  • Easy Digital Adjustment: Folding height, speed, and glue volume adjustable via touchscreen interface
  • Durable Mechanical Design: Rigid aluminum frame and precision components ensure long service life
300mm Pleat Height Mini HEPA Pleating And Gluing Production Line 1
Product Advantages
  • Large pleat height range for flexible filter designs
  • High-precision servo synchronization for consistent folding
  • Dual foamed-grade hot-melt glue systems for stable bonding
  • Smart control interface for easy operation and quick setup
  • Robust and reliable mechanical structure for continuous production
Packaging & Delivery
Selling Units: Single item
300mm Pleat Height Mini HEPA Pleating And Gluing Production Line 2
Manufacturer Profile
Bengbu Tongchen Automation Technology Equipment Co., Ltd. is located in Bengbu, China—an important transportation hub and industrial base. Our company specializes in the development, design, and production of filter manufacturing equipment, providing advanced, practical, and efficient solutions that meet both domestic trends and international standards.
Product Range
  • Paper folding equipment and rotating machines
  • Diesel engines and large air filter production equipment
  • Partitionless and partitioned filter production equipment
  • Pleating machines and glass fiber strip production lines

300mm Pleat Height Mini HEPA Pleating And Gluing Production Line 3

300mm Pleat Height Mini HEPA Pleating And Gluing Production Line 4

300mm Pleat Height Mini HEPA Pleating And Gluing Production Line 5
