Full-automatic Filter Paper Folding Machine Filter Pleating Production Line With Wavy Origami

1
MOQ
$18000~25000
Price
Full-automatic Filter Paper Folding Machine Filter Pleating Production Line With Wavy Origami
Features Gallery Product Description Request A Quote
Features
Specifications
Computerized: Yes
Guarantee Time: 1 Year
Folding Speed: 0 - 280 Folds/min (stepless Adjustable)
Adjustable Folding Height: 5-100 Mm (depending On Material)
Highlight:

full-automatic filter paper folding machine

,

HEPA filter pleating production line

,

wavy origami filter pleating machine
Basic Infomation
Place of Origin: Anhui,China
Brand Name: TONGCHEN
Certification: ISO
Model Number: TC-5719
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 15
Product Description

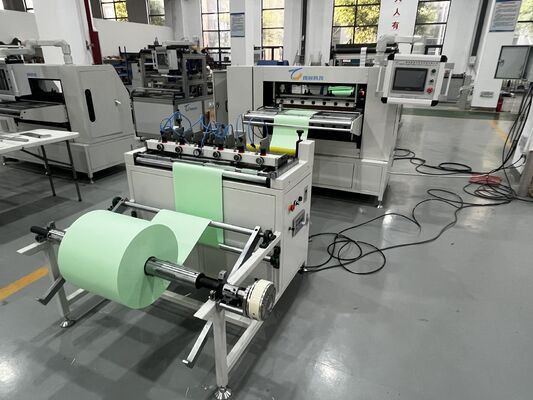

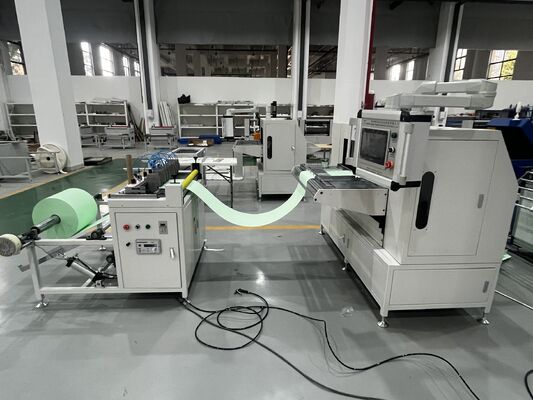

Full-automatic Filter Paper Folding Machine & Filter Pleating Production Line With Wavy Origami
The Full-automatic Filter Paper Folding Machine & Filter Pleating Production Line With Wavy Origami is a high-efficiency folding system designed for precise and uniform pleating of filter paper, wire mesh, and non-woven fabric. It adopts an upper and lower knife alternation folding method, enabling adjustable folding heights and stable operation.
Technical Specifications
Pre-cutting Paper Conveying Machine
Paper Conveying Speed 0.5 m/min - 25 m/min (adjustable)
Adjustable Width of Filter Paper 25 - 850mm
Power Supply Voltage 220V / 50Hz
Motor Power 0.55 kW
Working Air Pressure 0.6 Mpa
Machine Weight 250 kg
Dimensions (L × W × H) 1280 × 1100 × 1200 mm
Folding Machine
Maximum Product Width 850 mm
Adjustable Folding Height 5-100 mm (depending on material)
Folding Speed 0 - 280 folds/min (stepless adjustable)
Power Supply Voltage 380V / 50Hz
Main Motor Power 1.5 kW
Lifting Motor Power 0.4 kW
Preheating Power 6 kW
Working Air Pressure 0.6 Mpa
Machine Weight 450 KG
Dimensions (L × W × H) 1800 × 1900 × 1650 mm
Full-automatic Filter Paper Folding Machine Filter Pleating Production Line With Wavy Origami 0
Key Features & Advantages
Fully Automatic Operation: Integrates paper feeding, pre-cutting, counting, and folding for a smooth workflow

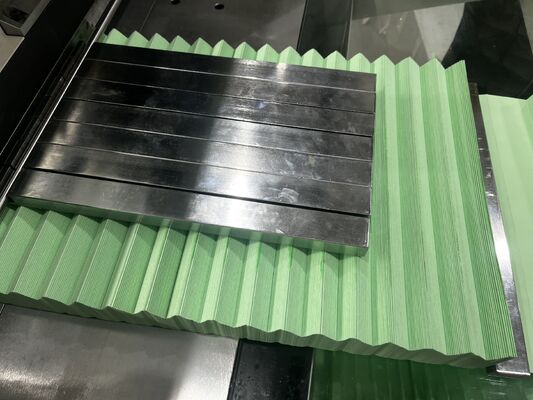

High Precision Folding: Knife-type mechanism ensures neat and consistent pleats
Adjustable Speed and Height: Flexible for different materials and filter specifications
Energy-Efficient Heating System: Fast preheating with precise temperature control
User-Friendly Control Panel: Simple operation with digital adjustments and safety design
Stable Performance: High-quality components ensure long-term durability and low maintenance
Full-automatic Filter Paper Folding Machine Filter Pleating Production Line With Wavy Origami 1
Applications
Automotive Air Filters
Cabin Filters
Industrial Dust Filters
Air Purification Filters
HEPA Filter Production Lines
Full-automatic Filter Paper Folding Machine Filter Pleating Production Line With Wavy Origami 2
Packaging & Delivery
Selling Units: Single item
Full-automatic Filter Paper Folding Machine Filter Pleating Production Line With Wavy Origami 3 Full-automatic Filter Paper Folding Machine Filter Pleating Production Line With Wavy Origami 4
Manufacturer Profile
Bengbu Tongchen Automation Technology Equipment Co., Ltd. is located in Bengbu, China—an important transportation hub and industrial base. Our company specializes in the development, design, and production of filter manufacturing equipment, providing advanced, practical, and efficient solutions that meet both domestic trends and international standards.
Product Range
Paper folding equipment and rotating machines
Diesel engines and large air filter production equipment
Partitionless and partitioned filter production equipment
Pleating machines and glass fiber strip production lines
Full-automatic Filter Paper Folding Machine Filter Pleating Production Line With Wavy Origami 5 Full-automatic Filter Paper Folding Machine Filter Pleating Production Line With Wavy Origami 6 Full-automatic Filter Paper Folding Machine Filter Pleating Production Line With Wavy Origami 7
