Paper Frame Filter Setting And Gluing Machine

1
MOQ
$8000~12500
Price
Paper Frame Filter Setting And Gluing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Processing Efficiency: ≤15 Seconds/piece
Wall Panel Fixing Size: 300mm
Adaptive Paper Frame Thickness: 0.5–2mm
Production Speed: 20 Sec/set (1 Set = Bottom Lid + Upper Lid)
Guarantee Time: 1 Year
Computerized: Yes
Highlight:

paper frame filter gluing machine

,

HEPA filter pleating machine with frame

,

filter setting machine for paper frames
Basic Infomation
Place of Origin: Anhui,China
Brand Name: TONGCHEN
Certification: ISO
Model Number: TC-5719
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 15
Product Description
Paper Frame Filter Setting And Gluing Machine
Paper Frame Filter Setting Machine
This precision equipment ensures tight adhesion and correct positioning of all edges, producing a semi-dry adhesive surface to prevent joints from separating. The machine guarantees fully bonded filter products with adjustable sizing capabilities and adaptive paper frame compatibility for high-efficiency filter production.
Paper Frame Filter Gluing Machine
Automating the adhesive application process for paper frame filters, this machine combines precision feeding with adjustable glue rollers to ensure consistent coverage across various sizes and thicknesses. It significantly reduces manual labor while improving production speed and adhesive uniformity, making it essential for modern filter manufacturing operations.
Technical Specifications

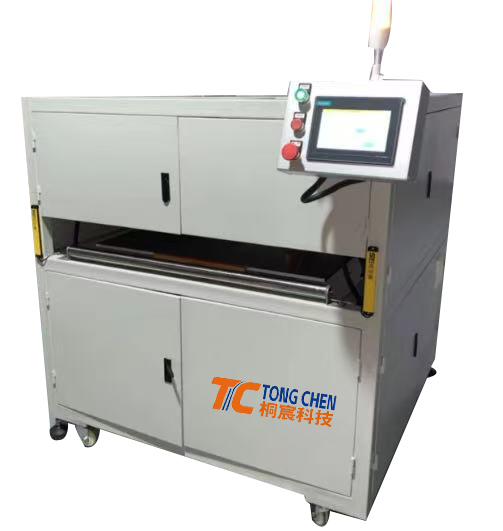

Paper Frame Filter Setting Machine
Parameter Specification
Size 300-600mm (Non-standard: 340-680mm, +100mm in length & width)
Adjustable Position Width & Height via servo motor
Feeding Bench 600×500mm, motor and pushing plate
Discharging Method Clamp location controlled by motor; lifting/conveying by cylinder (left & right sets)
Power Voltage 220VAC
Motor Power 4.5kW
Air Pressure 0.4-0.6MPa
Heat Temperature 20-90°C ±3°C
Processing Efficiency ≤15 seconds/piece
Adaptive Paper Frame Upper-lower type, laminated/standard materials
Wall Panel Fixing Size 300mm
Paper Frame Filter Setting And Gluing Machine 0

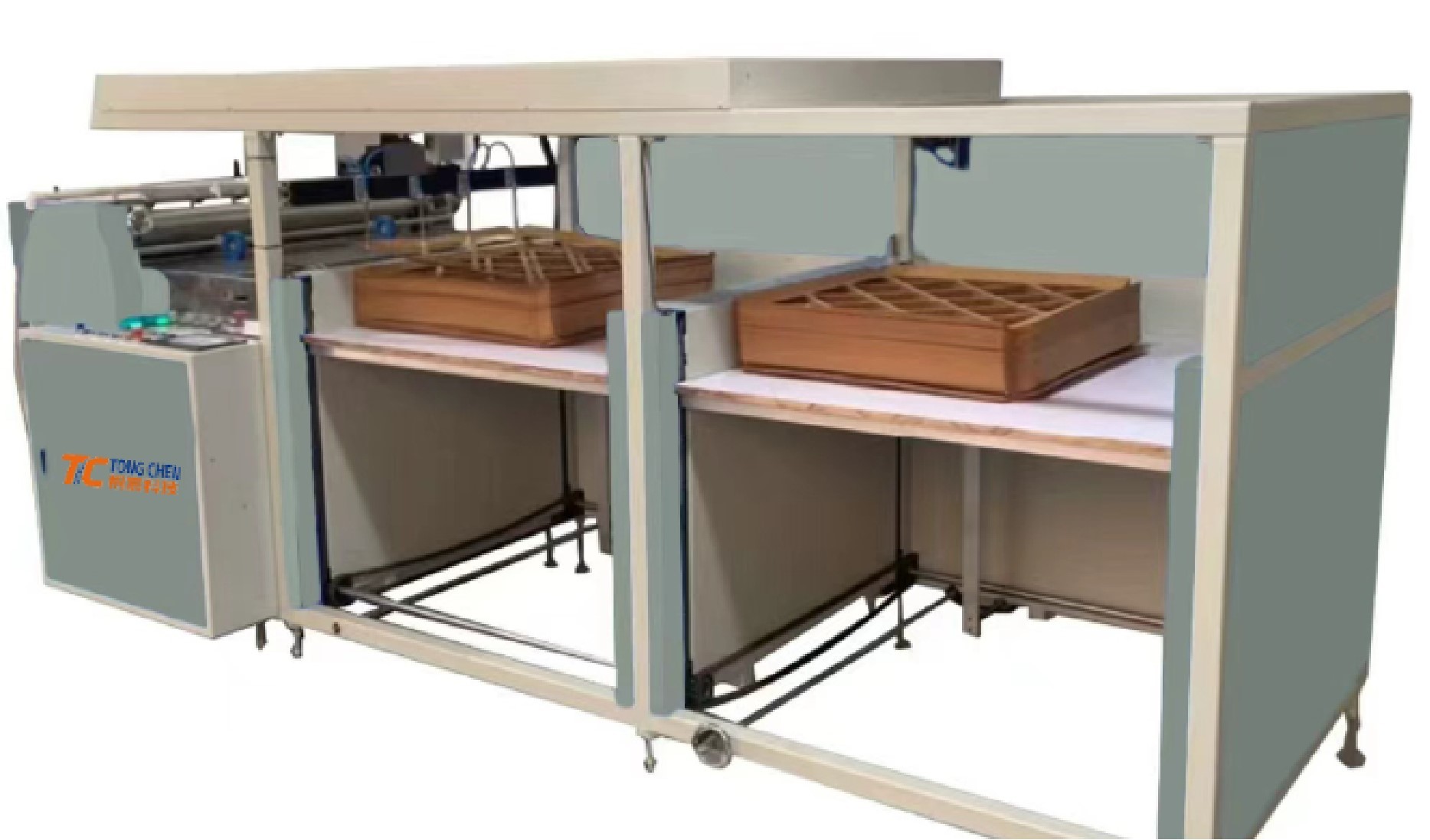

Paper Frame Filter Gluing Machine
Parameter Specification
Adaptive Paper Frame Size 280×280-900×900mm
Adaptive Paper Frame Thickness 0.5-2mm
Production Speed 20 sec/set (1 set = bottom lid + upper lid)
Glue Type White emulsion
Glue Application Circulating glue pump
Glue Cleaning Manual cleaning
Equipment Dimension 3400×1730×1500mm (L×W×H, without conveyor)
Conveyor Dimension 2500×1240×950mm (L×W×H)
Feeding Bench Dimension 1000×1000mm, loading 500 sets of 1.2mm paper frames
Material Metal iron frame, baked finish
Power Supply 3ɸ380VAC + N
Air Pressure 0.6-0.7MPa
Paper Frame Filter Setting And Gluing Machine 1
Applications
  • Panel-type primary paper frame filter production
  • Air conditioning and HVAC filter manufacturing
  • Industrial filtration system production
  • Laboratories and cleanroom filter assembly
Packaging & Delivery
Selling Units: Single item
Paper Frame Filter Setting And Gluing Machine 2 Paper Frame Filter Setting And Gluing Machine 3
Manufacturer Profile
Bengbu Tongchen Automation Technology Equipment Co., Ltd. is located in Bengbu, China—an important transportation hub and industrial base. Our company specializes in the development, design, and production of filter manufacturing equipment, providing advanced, practical, and efficient solutions that meet both domestic trends and international standards.
Product Range
• Paper folding equipment and rotating machines
• Diesel engines and large air filter production equipment
• Partitionless and partitioned filter production equipment
• Pleating machines and glass fiber strip production lines
Paper Frame Filter Setting And Gluing Machine 4 Paper Frame Filter Setting And Gluing Machine 5 Paper Frame Filter Setting And Gluing Machine 6
