Computerized Pocket Filter Making Machine Air Filter Bags Making Machine High Efficiency

1
MOQ
$55000~60000
Price
Computerized Pocket Filter Making Machine Air Filter Bags Making Machine High Efficiency
Features Gallery Product Description Request A Quote
Features
Specifications
Computerized: Yes
Production Capacity: Rewinding ≤22 M/min; Sheet ≤30 Pcs/min (depending On Size & Material)
Guarantee Time: 1 Year
Max Bag Size: Width: 750mm; Length: 3600mm (single Output) / 1800mm (dual Output)
Highlight:

Computerized HEPA filter pleating machine

,

pocket filter making machine high efficiency

,

air filter bags machine industrial use
Basic Infomation
Place of Origin: Anhui,China
Brand Name: TONGCHEN
Certification: ISO
Model Number: TC-5719
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 15
Product Description
High-efficiency Pocket Filter Making Machine Air Filter Bags Making Machine
This advanced Air Filter Bags Making Machine features a multi-functional dual-mode system with slitting and rewinding modes, offering both single-output and dual-output production capabilities. It supports rectangular right-angle filter bags and trapezoidal filter bags with adjustable angles that can be switched via one button with zero material loss.
Technical Specifications
Operating Modes Slitting Mode, Winding Mode
Max Bag Size Width: 750mm; Length: 3600mm (single output) / 1800mm (dual output)
Production Capacity Rewinding ≤22 m/min; Sheet ≤30 pcs/min (depending on size & material)
Welding Technology Ultrasonic Welding
Ultrasonic Power 20kHz 1500W × 10 sets; 20kHz 2600W × 4 sets
Voltage 380V, 3-phase
Power Consumption 11-12.5 kW
Air Pressure 0.5-0.8 MPa
Servo Motors 4 sets (including 2 absolute-value servo motors)
Unwinding Racks 9 reinforced aluminum material racks
Rewinding System 1 rewinder, 3-inch pneumatic shaft, max Ø1000mm
Control System Mitsubishi FX5U PLC + Xinjie 10-inch HMI
Traction Rollers 3 sets (steel shaft + rubber coating)
Cutting Method Gantry-type flying knife
Main Frame Reinforced aluminum + 12mm panels
Conveyor Length 2m with electric width adjustment
Major Components Delta servo, Delta inverters, HONTKO encoder, AirTac cylinders/rails/solenoids, Siemens buttons

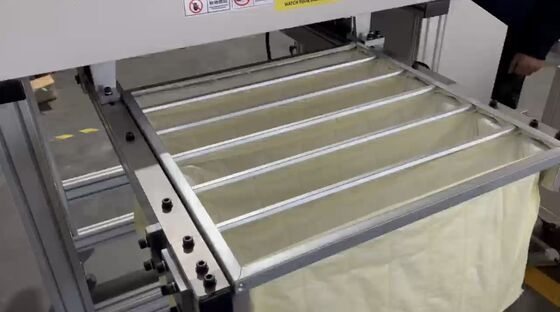

Computerized Pocket Filter Making Machine Air Filter Bags Making Machine High Efficiency 0
Key Advantages
  • Exceptional Efficiency: Dual-output mode doubles production and reduces ultrasonic weld frequency, extending ultrasonic machine life
  • Flexible Production: Supports roll products and sheet products in one machine
  • Precise Control: Multiple servo systems ensure accuracy in slitting, welding, edge trimming, and cutting
  • Durable Construction: Reinforced aluminum frame with thick structural panels
  • Customizable: Supports oversized bag customization beyond standard dimensions
  • Superior Automation: Integrated PLC + HMI control system enhances productivity and reduces error rates
  • Advanced Ultrasonic System: 14 high-power ultrasonic units ensure strong bonding and long operational stability
  • Modern Air Purification Manufacturing Essential: Ideal for large-scale, integrated filter bag production
Applications
  • HVAC medium-efficiency pocket filter manufacturing
  • Cleanroom filter production
  • Air purifier filter bag fabrication
  • Industrial dust collection systems
  • Melt-blown and non-woven filtration processing
  • Factory-scale filtration material conversion
  • OEM/ODM filter bag production
  • Large-scale air purification equipment manufacturers

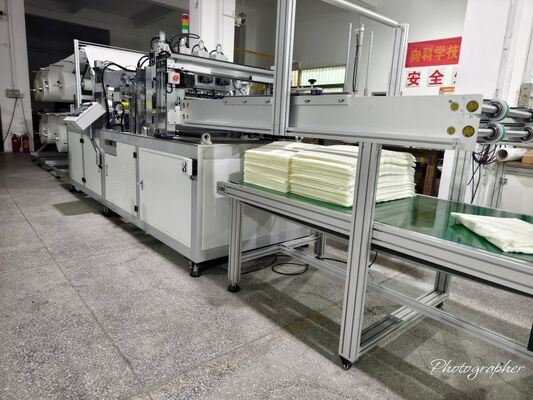

Computerized Pocket Filter Making Machine Air Filter Bags Making Machine High Efficiency 1
Packaging & Delivery
Selling Units: Single item

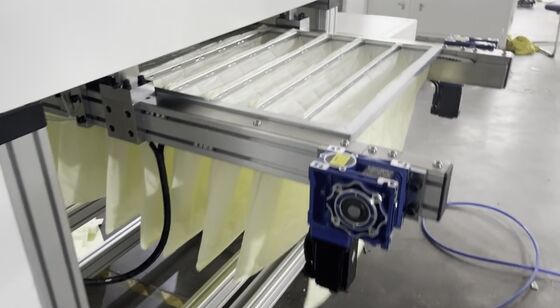

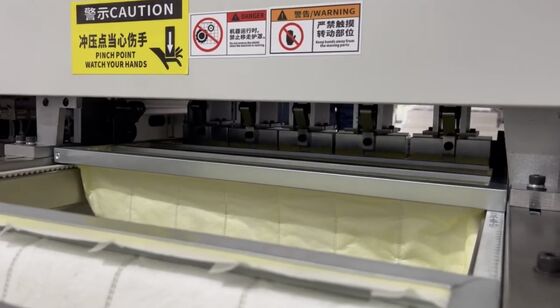

Computerized Pocket Filter Making Machine Air Filter Bags Making Machine High Efficiency 2 Computerized Pocket Filter Making Machine Air Filter Bags Making Machine High Efficiency 3
Manufacturer Profile
Bengbu Tongchen Automation Technology Equipment Co., Ltd. is located in Bengbu, China—an important transportation hub and industrial base. Our company specializes in the development, design, and production of filter manufacturing equipment, providing advanced, practical, and efficient solutions that meet both domestic trends and international standards.
Product Range
• Paper folding equipment and rotating machines
• Diesel engines and large air filter production equipment
• Partitionless and partitioned filter production equipment
• Pleating machines and glass fiber strip production lines
Computerized Pocket Filter Making Machine Air Filter Bags Making Machine High Efficiency 4 Computerized Pocket Filter Making Machine Air Filter Bags Making Machine High Efficiency 5 Computerized Pocket Filter Making Machine Air Filter Bags Making Machine High Efficiency 6
