Seventh Generation 300mm Pleat Height Fully Automatic Pleating Production Line

1
MOQ
$25000~28000
Price
Seventh Generation 300mm Pleat Height Fully Automatic Pleating Production Line
Features Gallery Product Description Request A Quote
Features
Specifications
Computerized: Yes
Guarantee Time: 1 Year
Paper Conveying Speed: 0.5 M/min – 25 M/min (adjustable)
Adjustable Folding Height: 25-300 Mm (depending On Material)
Highlight:

HEPA filter pleating machine 300mm

,

fully automatic pleating production line

,

Seventh Generation pleating machine
Basic Infomation
Place of Origin: Anhui,China
Brand Name: TONGCHEN
Certification: ISO
Model Number: TC-5719
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 15
Product Description
Seventh Generation 300mm Pleat Height Fully Automatic Pleating Production Line
The seventh-generation fully automatic servo motor pleating production line is engineered for high-speed, precise, and efficient pleating of filter paper. This integrated system combines automatic feeding, pre-cutting, counting, and folding functions into one continuous process, significantly enhancing production efficiency while ensuring consistent product quality. Ideal for automotive filters, air purification filters, and industrial filtration materials.
Technical Specifications
Pre-cutting Paper Conveying Machine
Parameter Specification
Paper Conveying Speed 0.5 m/min - 25 m/min (adjustable)
Adjustable Width of Filter Paper 25 - 1050 mm
Power Supply Voltage 220V / 50Hz
Motor Power 0.55 kW
Working Air Pressure 0.6 Mpa
Machine Weight 250 kg
Dimensions (L × W × H) 1280 × 1100 × 1200 mm
Folding Machine
Parameter Specification
Maximum Product Width 850 mm
Adjustable Folding Height 25-300 mm (depending on material)
Folding Speed 0 - 280 folds/min (stepless adjustable)
Power Supply Voltage 380V / 50Hz
Main Motor Power 1.5 kW
Lifting Motor Power 0.4 kW
Preheating Power 6 kW
Working Air Pressure 0.6 Mpa
Machine Weight 450 kg
Dimensions (L × W × H) 1800 × 1900 × 1650 mm

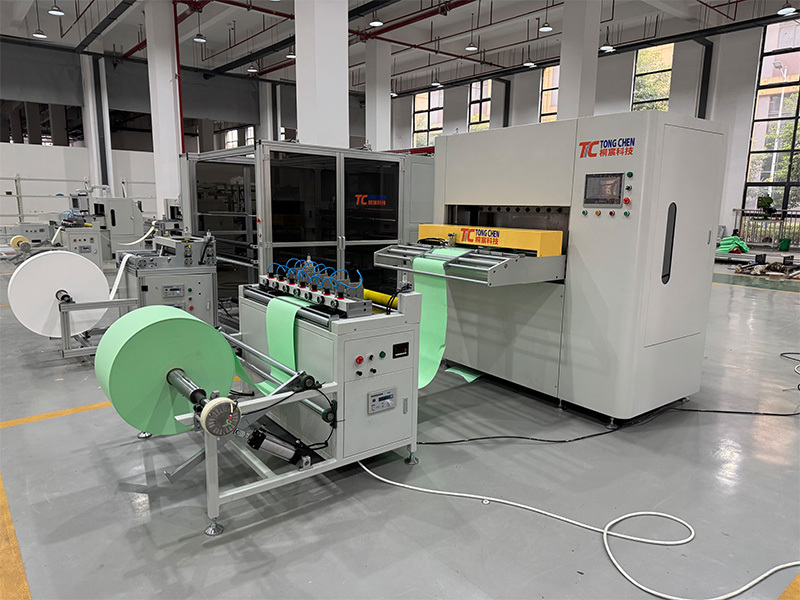

Seventh Generation 300mm Pleat Height Fully Automatic Pleating Production Line 0
Key Features & Advantages
  • Fully Automatic Operation: Integrates paper feeding, pre-cutting, counting, and folding for seamless workflow
  • High Precision Folding: Knife-type mechanism ensures neat and consistent pleats
  • Adjustable Speed and Height: Flexible configuration for different materials and filter specifications
  • Energy-Efficient Heating System: Fast preheating with precise temperature control
  • User-Friendly Control Panel: Simple operation with digital adjustments and safety features
  • Stable Performance: High-quality components ensure long-term durability and minimal maintenance

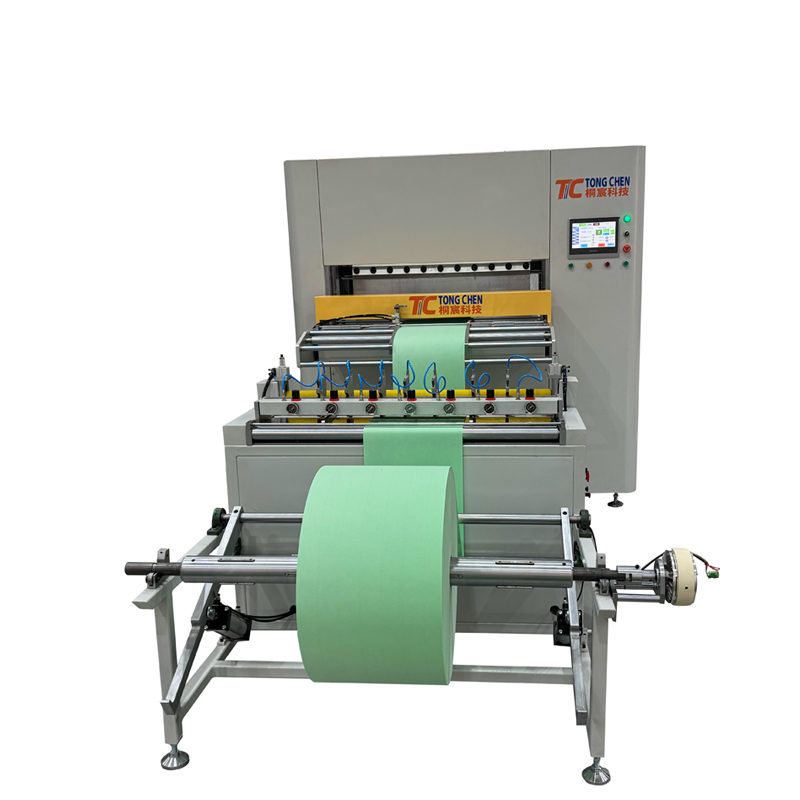

Seventh Generation 300mm Pleat Height Fully Automatic Pleating Production Line 1
Applications
  • Automotive Air Filters
  • Cabin Filters
  • Industrial Dust Filters
  • Air Purification Filters
  • HEPA Filter Production Lines

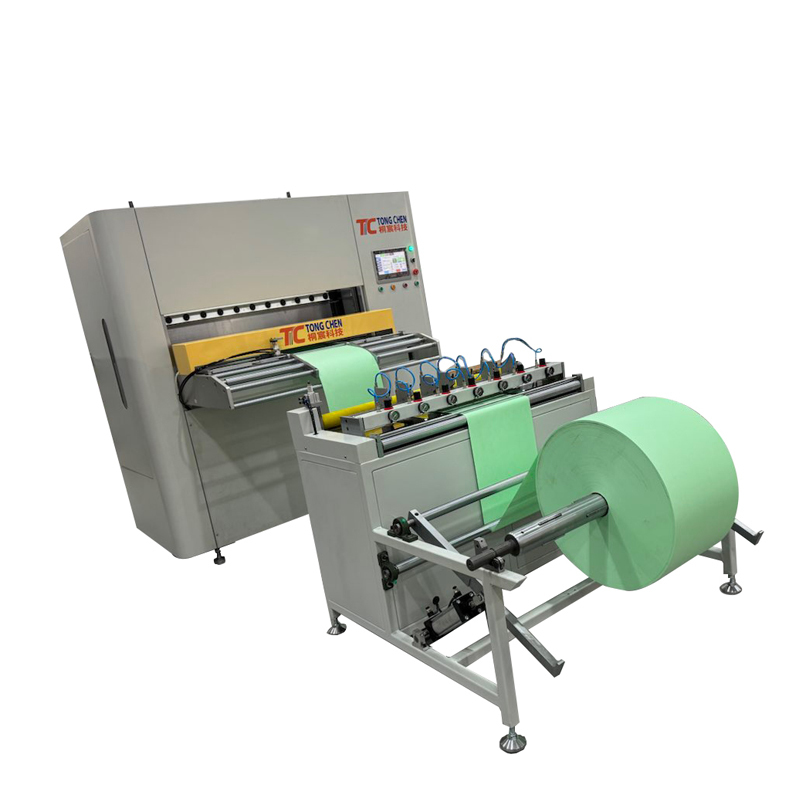

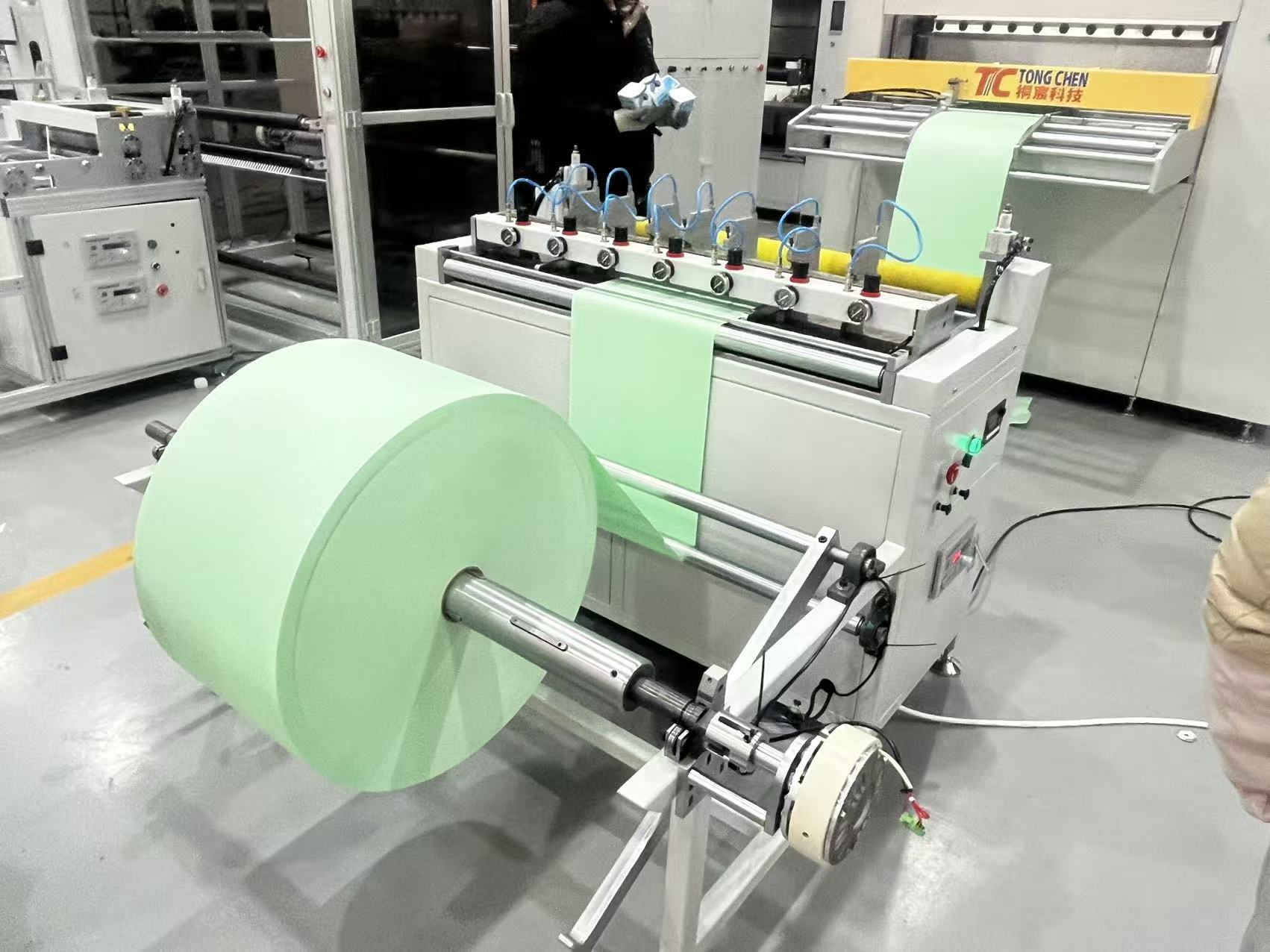

Seventh Generation 300mm Pleat Height Fully Automatic Pleating Production Line 2 Seventh Generation 300mm Pleat Height Fully Automatic Pleating Production Line 3
Packaging & Delivery
Selling Units: Single item
Seventh Generation 300mm Pleat Height Fully Automatic Pleating Production Line 4 Seventh Generation 300mm Pleat Height Fully Automatic Pleating Production Line 5
Manufacturer Profile
Bengbu Tongchen Automation Technology Equipment Co., Ltd. is located in Bengbu, China—an important transportation hub and industrial base. Our company specializes in the development, design, and production of filter manufacturing equipment, providing advanced, practical, and efficient solutions that meet both domestic trends and international standards.
Product Range
  • Paper folding equipment and rotating machines
  • Diesel engines and large air filter production equipment
  • Partitionless and partitioned filter production equipment
  • Pleating machines and glass fiber strip production lines
Seventh Generation 300mm Pleat Height Fully Automatic Pleating Production Line 6 Seventh Generation 300mm Pleat Height Fully Automatic Pleating Production Line 7 Seventh Generation 300mm Pleat Height Fully Automatic Pleating Production Line 8
