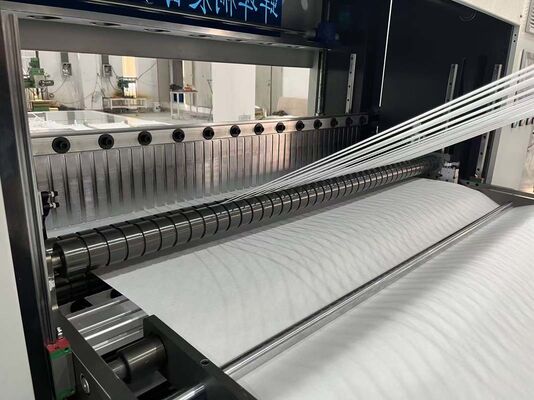

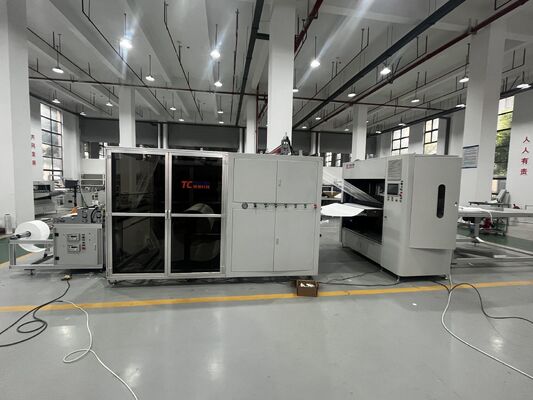

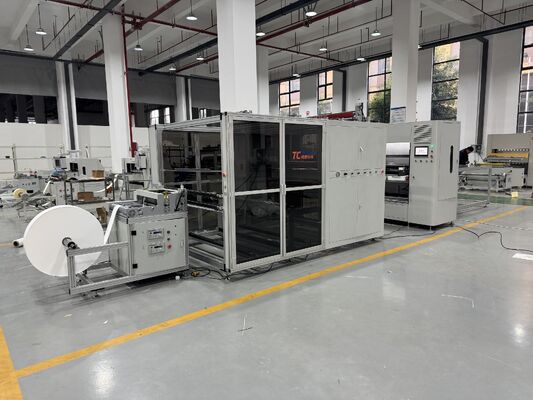

Pre-cutting Paper Feeding Machine
| Parameter |
Specification |
| Paper feeding speed |
0.5m/min - 10m/min adjustable |
| Adjustable width |
25 - 350mm |
| Filter paper thickness |
1.5mm
|
| Power supply voltage |
380V/50Hz |
| Motor power |
0.55kw
|
| Working air pressure |
0.6Mpa |
| Machine weight |
250kg
|
| Dimensions |
1280×1100×1200mm (L×W×H) |
Folding Machine
| Parameter |
Specification |
| Maximum product width |
1000mm |
| Adjustable folding height |
20-300mm |
| Folding speed |
0 - 60 folds/minute (adjustable) |
| Glass fiber line distance |
32mm |
| Power supply voltage |
380V - 50Hz |
| Main motor power |
4×0.75kw |
| Ascending motor power |
0.4KW |
| Working air pressure |
0.6Mpa |
| Machine weight |
450kg |
| Dimensions |
1800×1500×2250mm (L×W×H)
|
Main Features
(1) Feeding function
(2) Powder brake, air expansion shaft, tension regulator, tension can be freely adjusted
(3) Feeding roller, conveying roller, both ends of the conveying roller have an adjustable cylinder
(4) Customized cutting knife
(5) Line cutting is customized according to the line width, automatic cutting of the upper and lower layers through special processing materials to control the stability of the lines
(6) Pre-cutting paper feeding machine is the latest improved cutting machine, the cutting lines adopt servo control system for synchronous movement with the folding machine
(7) Upper and lower lines and filter paper are automatically synchronous with folding
Product Advantages
1. Precision & Flexibility
Multi-Layer Compatibility: Handles up to 7 layers of materials (glass fiber, PP, metal, etc.) with automatic height adjustment.
Dual-Side Processing: Simultaneous cutting and folding reduce production time by 30% compared to traditional methods.
2. Durability & Efficiency
High-Temperature Resistance: Processes glass fiber paper stable up to 500°C, ideal for industrial kilns and automotive exhaust systems.
Energy-Saving Design: Servo motors and PLC reduce power consumption by 15% (total power: 16kW).
3. Smart Automation
Touchscreen Control: Real-time parameter adjustment (speed, fold height, tension) via HMI interface.
Quick Changeover: Modular rollers and pre-set recipes minimize downtime for multi-product batches.
Applications
- Automotive air conditioning filters
- Cabin air filters
- Industrial and HVAC filters
- Household air purifier filters
- Nonwoven and pleated filter frames
- Any filter requiring precise four-side edge strip removal
Ideal for filtration processing factories, air filter assembly lines, and precision finishing workshops.
Manufacturer Profile
Bengbu Tongchen Automation Technology Equipment Co., Ltd. is located in Bengbu, China—an important transportation hub and industrial base. Our company specializes in the development, design, and production of filter manufacturing equipment, providing advanced, practical, and efficient solutions that meet both domestic trends and international standards.
Product Range
Paper folding equipment and rotating machines
Diesel engines and large air filter production equipment
Partitionless and partitioned filter production equipment
Pleating machines and glass fiber strip production lines
