350mm HEPA Filter Corrugating Machine Used For Aluminum Foil Forming

1
MOQ
$5500~7500
Price
350mm HEPA Filter Corrugating Machine Used For Aluminum Foil Forming
Features Gallery Product Description Request A Quote
Features
Specifications
Production Speed (Max): 0 - 30 Sheets/min
Corrugation Height: 3 Mm - 6 Mm (customizable)
Computerized: Yes
Guarantee Time: 1 Year
Highlight:

350mm HEPA filter pleating machine

,

aluminum foil forming machine

,

corrugating machine with HEPA filter
Basic Infomation
Place of Origin: Anhui,China
Brand Name: TONGCHEN
Certification: ISO
Model Number: TC-5719
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 15
Product Description
350mm HEPA Filter Corrugating Machine for Aluminum Foil Forming
The 350mm Corrugating Machine is a state-of-the-art solution for producing aluminum foil and paper separators. Featuring a painted frame for precision and aesthetic appeal, the ergonomic layout allows easy roll replacement, adjustment, and operation. The process—from roll feeding and tension control to flanging, corrugation, sizing, cutting, and automatic discharge—is fully optimized for efficiency, quality, and minimal operator fatigue.
Process Workflow
Rolled aluminum foil (paper) → Coiling → Tension unwinding → Tension feeding → Flanging → Corrugation pressing (heat setting) → Automatic sizing cutting → Automatic discharge
Technical Specifications
Material Aluminum foil (semi-hard, flat) or paper
Maximum Roll Diameter 700 mm
Maximum Material Width 320 mm
Material Thickness 0.04 ± 0.005 mm
Corrugated Edge Width After Pressing 3 mm - 10 mm
Corrugation Height 3 mm - 6 mm (customizable)
Sizing Length Freely adjustable
Production Speed (Max) 0 - 30 sheets/min
Power Supply 380V, 50Hz
Compressed Air Requirement 0.6 m³/min
Machine Dimensions (L × W × H) 3800 × 950 × 1395 mm
Motor Configuration Three-phase motor
Mechanical Parts Treatment Shafts: electroplated hard chrome; Others: decorative nitro-iron and black treatment
Pneumatic Components Brand Jiahe brand, Harbin bearings
Instrument Installation Reasonable layout, easy to remove

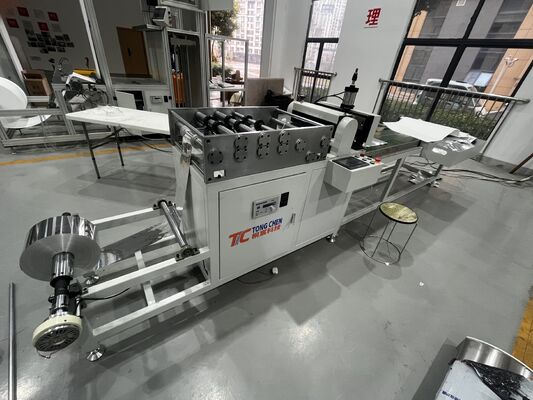

350mm HEPA Filter Corrugating Machine Used For Aluminum Foil Forming 0
Applications
  • Production of aluminum foil corrugated separators
  • Manufacturing of paper-based separators
  • Industrial packaging materials
  • Electronics and battery separator sheets
  • Custom corrugated sheets for industrial applications

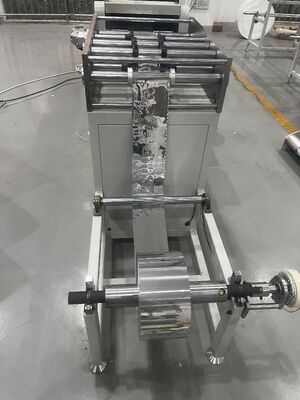

350mm HEPA Filter Corrugating Machine Used For Aluminum Foil Forming 1
350mm HEPA Filter Corrugating Machine Used For Aluminum Foil Forming 2
Key Advantages
  • High production efficiency (up to 30 sheets/min)
  • Fully customizable corrugation height (3-6mm) and sheet length
  • Stable production due to tension-controlled feeding
  • Ergonomic design improves operator comfort and safety
  • Easy maintenance with accessible and replaceable components
  • Suitable for both aluminum foil and paper materials
  • Painted frame ensures durability and precision alignment
Packaging & Delivery
Selling Units: Single item
350mm HEPA Filter Corrugating Machine Used For Aluminum Foil Forming 3
350mm HEPA Filter Corrugating Machine Used For Aluminum Foil Forming 4
Manufacturer Profile
Bengbu Tongchen Automation Technology Equipment Co., Ltd. is located in Bengbu, China—an important transportation hub and industrial base. Our company specializes in the development, design, and production of filter manufacturing equipment, providing advanced, practical, and efficient solutions that meet both domestic trends and international standards.
Product Range
  • Paper folding equipment and rotating machines
  • Diesel engines and large air filter production equipment
  • Partitionless and partitioned filter production equipment
  • Pleating machines and glass fiber strip production lines
350mm HEPA Filter Corrugating Machine Used For Aluminum Foil Forming 5
350mm HEPA Filter Corrugating Machine Used For Aluminum Foil Forming 6
350mm HEPA Filter Corrugating Machine Used For Aluminum Foil Forming 7
