High Efficiency Automatic Knife Paper Pleating Production Line

1
MOQ
$23000~25000
Price
High Efficiency Automatic Knife Paper Pleating Production Line
Features Gallery Product Description Request A Quote
Features
Specifications
Computerized: Yes
Guarantee Time: 1 Year
Paper Conveying Speed: 0.5 M/min - 25 M/min (adjustable)
Maximum Product Width: 850 Mm
Adjustable Folding Height: 5-100 Mm (depending On Material)
Folding Speed: 0 - 280 Folds/min (stepless Adjustable)
Highlight:

automatic HEPA filter pleating machine

,

high efficiency paper pleating line

,

knife pleating production line
Basic Infomation
Place of Origin: Anhui,China
Brand Name: TONGCHEN
Certification: ISO
Model Number: TC-5719
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 15
Product Description
High Efficiency Automatic Knife Paper Pleating Production Line
This advanced production line integrates an auto paper de-coiler, pre-slitting conveyor, marker, automatic counter, and filter paper pleating machine with pre-heater and monitor. The system features precise frequency-controlled slitting, infrared synchronization, computer-controlled marking, and stable high-speed pleating with upper/lower alternating blades. After marking, the filter paper is automatically pleated and pre-heated for optimal performance.
Key Features
  • Precise frequency-controlled slitting system
  • Infrared synchronization technology
  • Computer-controlled marking precision
  • Stable high-speed pleating with alternating blades
  • Integrated pre-heating system
  • Compatible with iron wire fabric, non-woven fabrics, and multi-layer hydraulic filter materials
  • Customizable machine width and pleating height
  • Optional "M-type" pleating configuration
Technical Specifications
Pre-cutting Paper Conveying Machine
Parameter Specification
Paper Conveying Speed 0.5 m/min - 25 m/min (adjustable)
Adjustable Width of Filter Paper 25 - 850mm
Power Supply Voltage 220V / 50Hz
Motor Power 0.55 kW
Working Air Pressure 0.6 Mpa
Machine Weight 250 kg
Dimensions (L × W × H) 1280 × 1100 × 1200 mm
Folding Machine
Parameter Specification
Maximum Product Width 850 mm
Adjustable Folding Height 5-100 mm (depending on material)
Folding Speed 0 - 280 folds/min (stepless adjustable)
Power Supply Voltage 380V / 50Hz
Main Motor Power 1.5 kW
Lifting Motor Power 0.4 kW
Preheating Power 6 kW
Working Air Pressure 0.6 Mpa
Machine Weight 450 KG
Dimensions (L × W × H) 1800 × 1900 × 1650 mm
Gluing Machine
Parameter Specification
Glue machine preheating time 30 minutes
Glue line cooling Multi-axis natural and fan cooling
Glue gun configuration 2 × 26-point independent glue spraying components with separate solenoid control
Glue line spacing 25.4 mm
Glue gun control Touchscreen-controlled; adjustable glue volume
Glue spraying functions Continuous, single-sided, double-sided, surface cutting, offset, fold-count-based injection
Power supply 380V / 50Hz

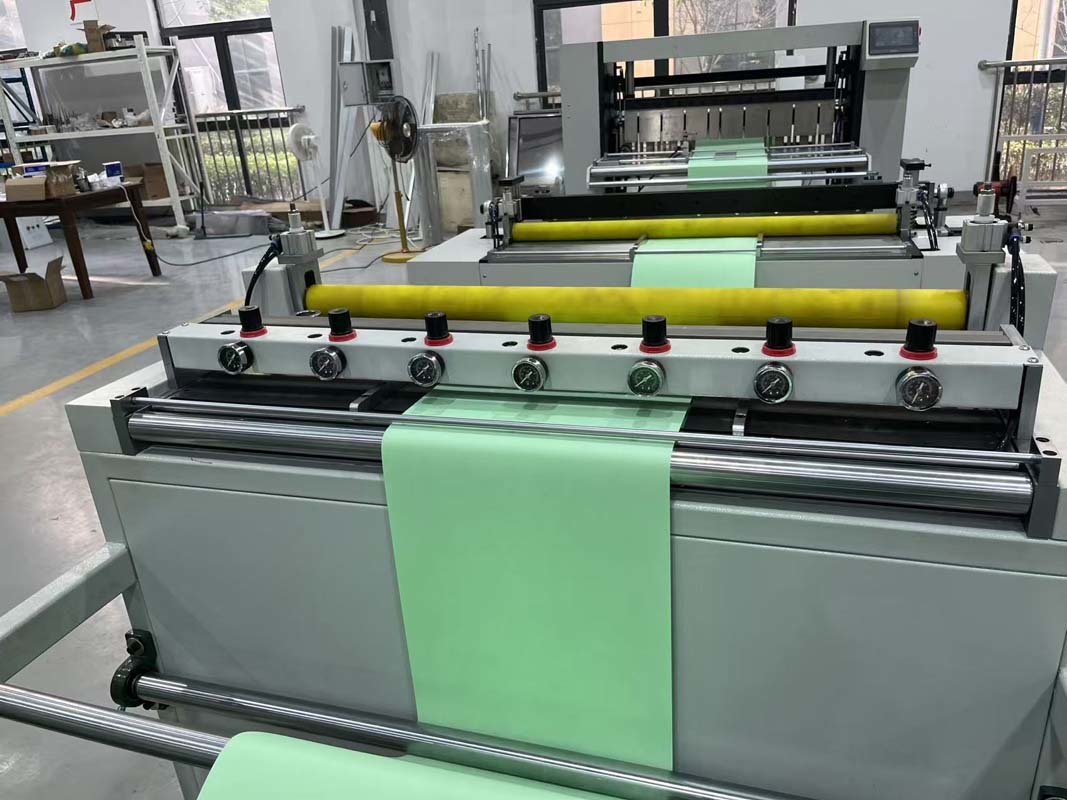

High Efficiency Automatic Knife Paper Pleating Production Line 0
Applications
This production line serves multiple industries including automotive tri-filter manufacturing, hydraulic pressure systems, purification systems, and water treatment applications. We offer customization options for different specifications including machine width, pleating height, and specialized "M-type" pleating configurations.

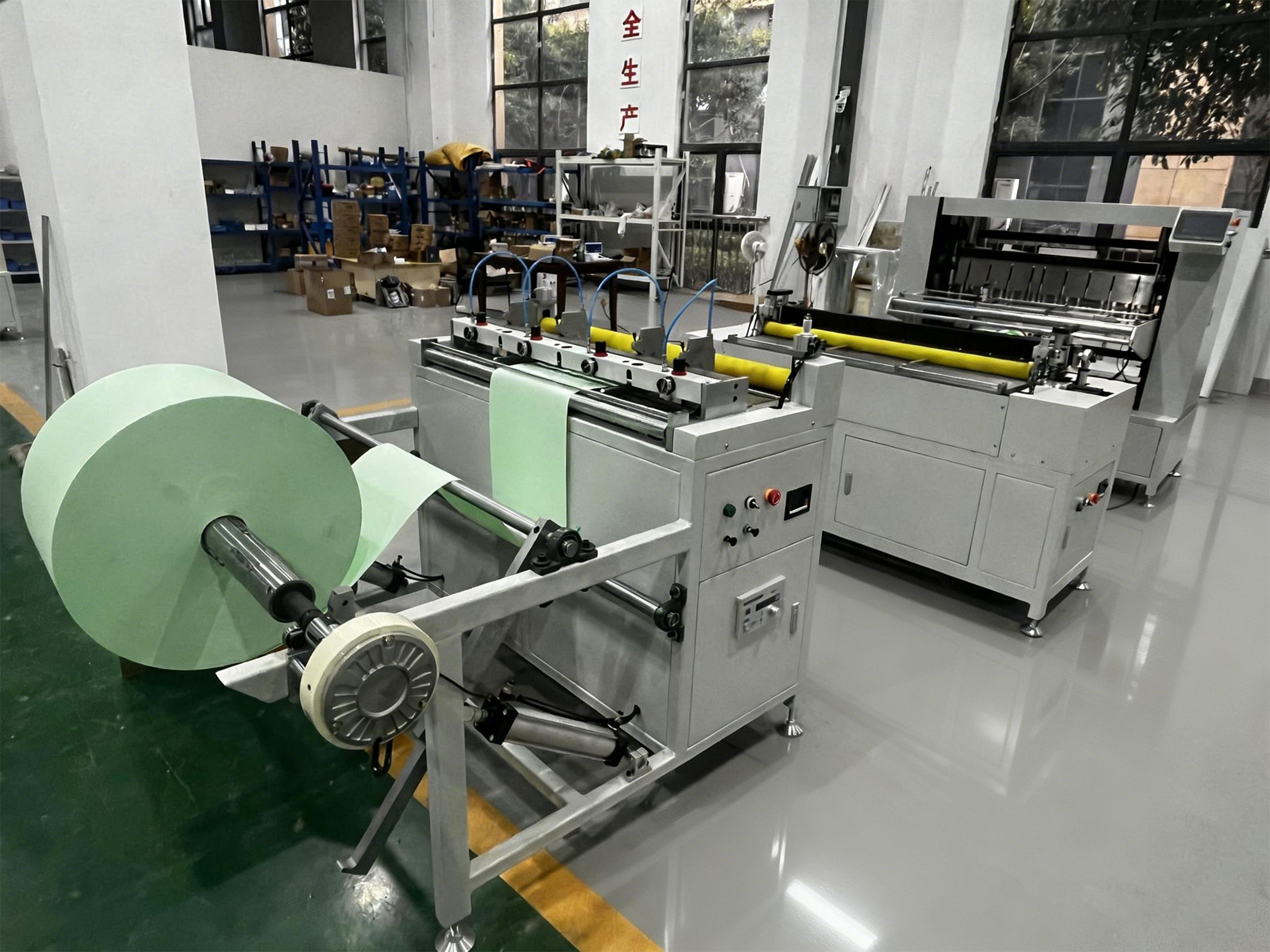

High Efficiency Automatic Knife Paper Pleating Production Line 1
Packaging & Delivery
Selling Units: Single item

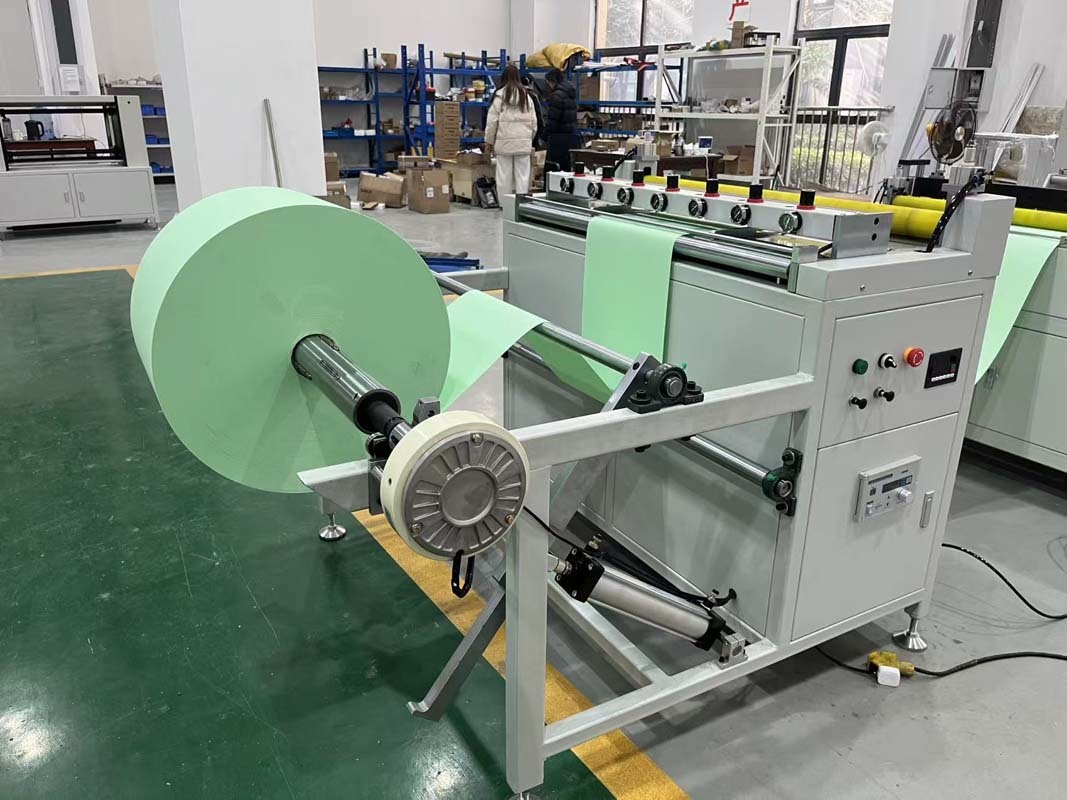

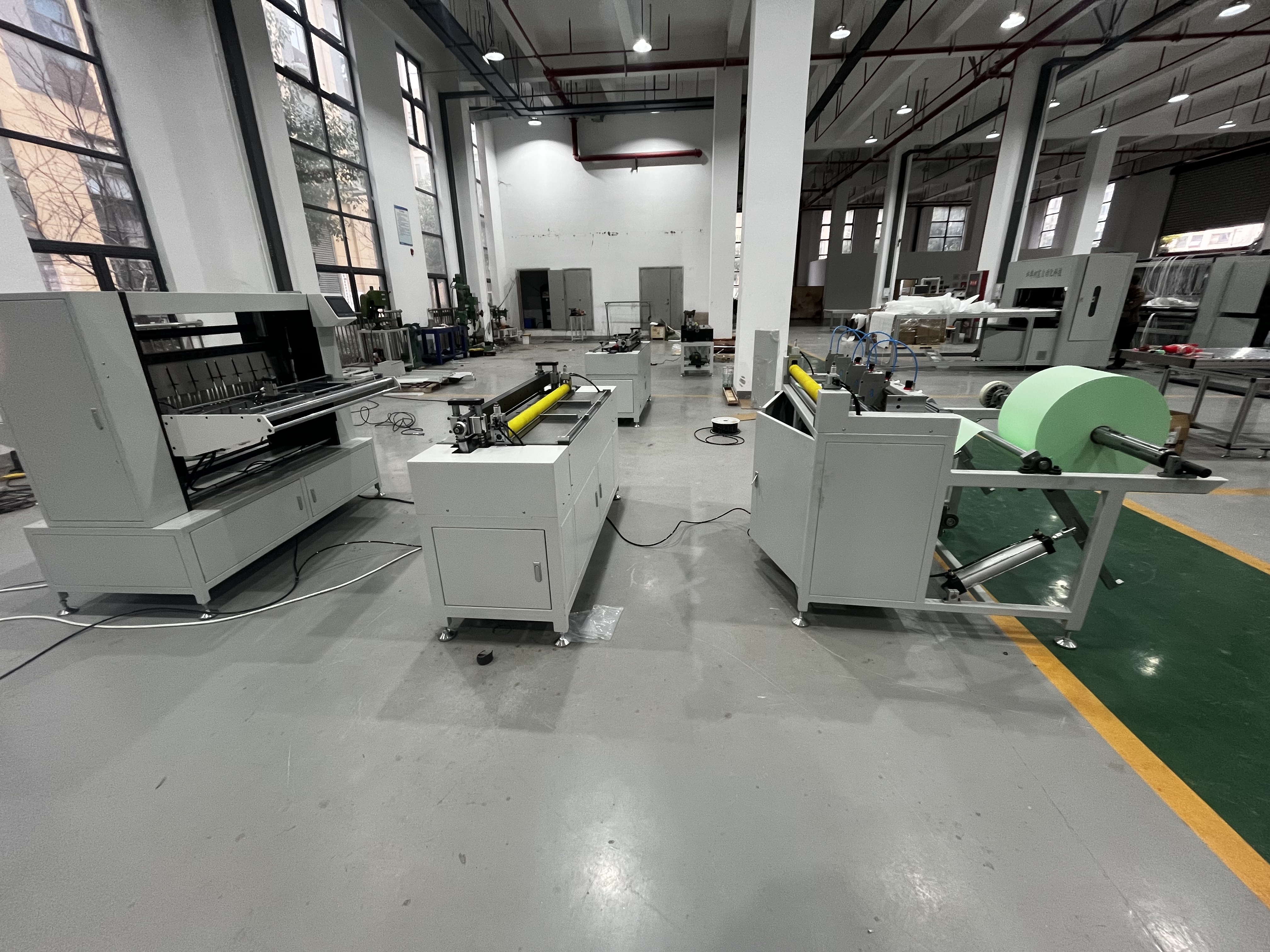

High Efficiency Automatic Knife Paper Pleating Production Line 2 High Efficiency Automatic Knife Paper Pleating Production Line 3
Manufacturer Profile
Bengbu Tongchen Automation Technology Equipment Co., Ltd. is located in Bengbu, China—an important transportation hub and industrial base. Our company specializes in the development, design, and production of filter manufacturing equipment, providing advanced, practical, and efficient solutions that meet both domestic trends and international standards.
Product Range
  • Paper folding equipment and rotating machines
  • Diesel engines and large air filter production equipment
  • Partitionless and partitioned filter production equipment
  • Pleating machines and glass fiber strip production lines
High Efficiency Automatic Knife Paper Pleating Production Line 4 High Efficiency Automatic Knife Paper Pleating Production Line 5 High Efficiency Automatic Knife Paper Pleating Production Line 6
