300mm Pleat Height High-Temperature Resistant Glass Fiber Filter Paper Folding Production Line

1
MOQ
$21000~25000
Price
300mm Pleat Height High-Temperature Resistant Glass Fiber Filter Paper Folding Production Line
Features Gallery Product Description Request A Quote
Features
Specifications
Computerized: Yes
Guarantee Time: 1 Year
Paper Feeding Speed: 0.5m/min - 10m/min Adjustable
Adjustable Folding Height: 20-300mm
Folding Speed: 0 - 60 Folds/minute (adjustable)
Filter Paper Thickness: 1.5mm
Highlight:

300mm pleat height HEPA filter pleating machine

,

high-temperature resistant glass fiber filter paper

,

folding production line for filter paper
Basic Infomation
Place of Origin: Anhui,China
Brand Name: TONGCHEN
Certification: ISO
Model Number: TC-5752
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 15
Product Description
300mm Pleat Height High-Temperature Resistant Glass Fiber Filter Paper Folding Production Line
Our production line is engineered for the precise and efficient manufacturing of high-temperature resistant glass fiber folded filter paper, widely utilized in HEPA/ULPA filters, automotive filtration, and thermal insulation systems. Integrated with advanced automation technology, it ensures accurate folding, uniform adhesive application, and stable high-speed operation for demanding industrial applications.

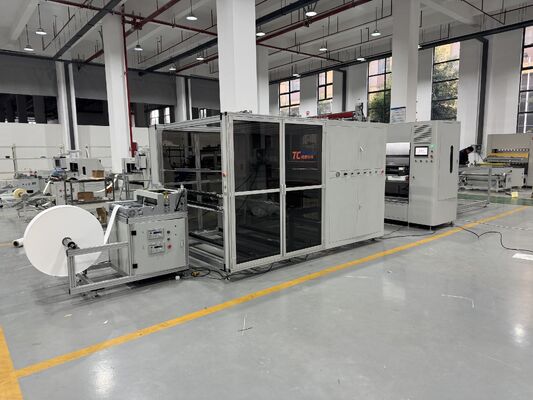

300mm Pleat Height High-Temperature Resistant Glass Fiber Filter Paper Folding Production Line 0
Main Components of the Equipment
  • Filter material cutting strip feeding machine
  • Material feeding rack
  • Pre-cutting paper feeding machine
  • Line transportation system
  • Automatic synchronous mechanism for upper and lower lines
  • Filter paper automatic synchronous mechanism
  • Cutting strip tension mechanism
  • Filter paper folding and shaping unit
Main Functions and Features
  • Feeding function with adjustable tension control
  • Powder brake, air expansion shaft, and tension regulator for precise tension adjustment
  • Feeding roller and conveying roller with adjustable cylinders at both ends
  • Customized cutting knife for precise material processing
  • Line cutting customized according to line width with automatic upper and lower layer cutting
  • Latest improved pre-cutting paper feeding machine with servo control system
  • Automatic synchronization of upper and lower lines with filter paper folding
Technical Specifications
Pre-cutting Paper Feeding Machine Folding Machine
Paper feeding speed 0.5m/min - 10m/min adjustable Maximum product width 1000mm
Adjustable width 25 - 350mm Adjustable folding height 20-300mm
Filter paper thickness 1.5mm Folding speed 0 - 60 folds/minute (adjustable)
Power supply voltage 380V/50Hz Glass fiber line distance 32mm
Motor power 0.55kw Power supply voltage 380V - 50Hz
Working air pressure 0.6Mpa Main motor power 4×0.75kw
Machine weight 250kg Ascending motor power 0.4KW
Dimensions 1280×1100×1200mm (L×W×H) Working air pressure 0.6Mpa


Machine weight 450kg


Dimensions 1800×1500×2250mm (L×W×H)
Packaging & Delivery
Selling Units: Single item

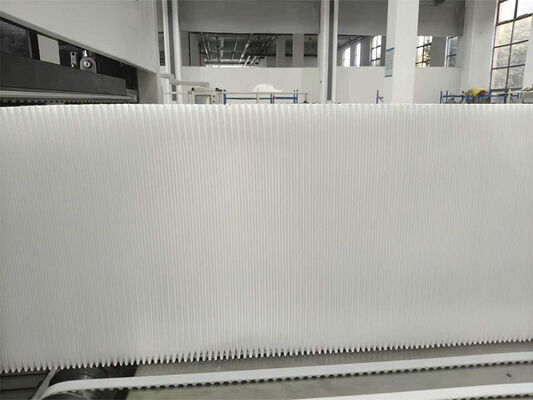

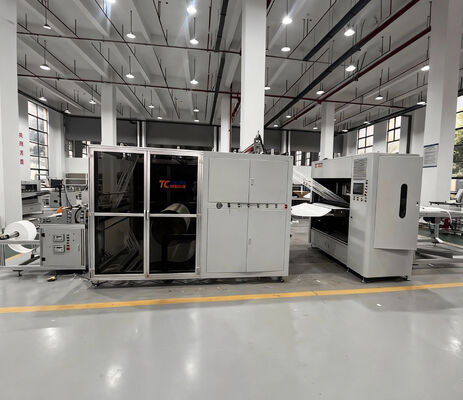

300mm Pleat Height High-Temperature Resistant Glass Fiber Filter Paper Folding Production Line 1 300mm Pleat Height High-Temperature Resistant Glass Fiber Filter Paper Folding Production Line 2
Manufacturer Profile
Bengbu Tongchen Automation Technology Equipment Co., Ltd. is located in Bengbu, China—an important transportation hub and industrial base. Our company specializes in the development, design, and production of filter manufacturing equipment, providing advanced, practical, and efficient solutions that meet both domestic trends and international standards.
Product Range
  • Paper folding equipment and rotating machines
  • Diesel engines and large air filter production equipment
  • Partitionless and partitioned filter production equipment
  • Pleating machines and glass fiber strip production lines

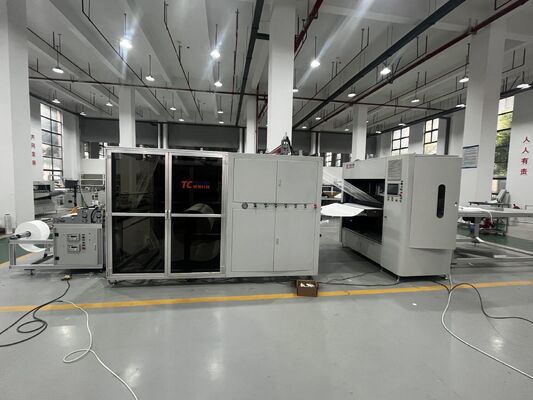

300mm Pleat Height High-Temperature Resistant Glass Fiber Filter Paper Folding Production Line 3 300mm Pleat Height High-Temperature Resistant Glass Fiber Filter Paper Folding Production Line 4 300mm Pleat Height High-Temperature Resistant Glass Fiber Filter Paper Folding Production Line 5
