Automatic hot melt adhesive PP Gluing and Wave Receiving Production Line Filter Gluing Machine Filter element Gluing Machine

1
MOQ
5980
Price
Automatic hot melt adhesive PP Gluing and Wave Receiving Production Line Filter Gluing Machine Filter element Gluing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

automatic hot melt adhesive gluing machine

,

PP filter element gluing machine

,

HEPA filter pleating production line
Basic Infomation
Place of Origin: CHINA
Brand Name: TONGCHEN
Certification: ISO
Model Number: TC-P2563
Payment & Shipping Terms
Packaging Details: wooden case parking
Delivery Time: 5-40work days
Payment Terms: T/T
Supply Ability: 15
Product Description
Automatic Hot Melt Adhesive PP Gluing and Wave Receiving Production Line
This advanced filter gluing machine is designed for precision manufacturing of various filter elements including household purifiers, automotive filters, and air conditioning filters.
Key Specifications
Voltage 110V, 220V, 380V
Power 10 kW
Core Components PLC, Servo-actuator
Working Voltage 380V/50/60 Hz
Air Pressure 0.6 Mpa
Material Width ≤820 mm
Folding Height 8-100 mm
Production Speed 4-27 m/min
Machine Weight 800 kg
Hot Melt Capacity 50 L
Warranty 1 Year
Place of Origin Shanghai, China
Brand TONGCHEN
Lead Time
Quantity (sets) 1 - 1 > 1
Lead Time (days) 30 To be negotiated
Equipment Features
  • Microcomputer-controlled glue application with clear display and easy operation
  • Manual roller feeding system with meter scale and nozzle marks for efficient operation
  • 4-direction precision conversion with hand-wheel adjustable receiver for quick height adjustment
  • Direct glue amount control from operation screen (no need to adjust on glue bucket)
  • Automatic glue adjustment based on production speed to prevent defective products
  • Pre-programmable settings for fold count, spacing, product length, and glue breaking
  • Precise cutting with no glue residue for material and labor savings
  • Optional electric drive control with microcomputer input for wave height adjustment
Product Applications
Ideal for manufacturing various filter elements including:
  • Industrial filters
  • Household purifier filter elements
  • Automotive filter elements
  • Air conditioning filter elements

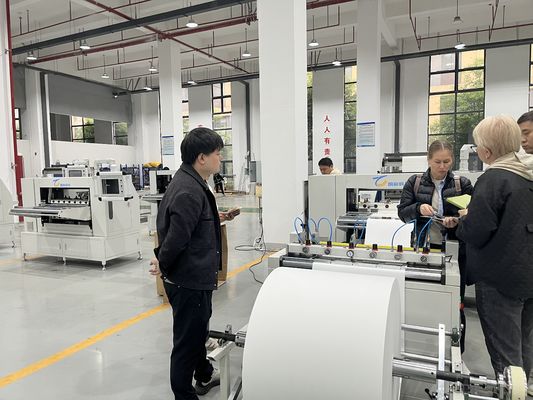

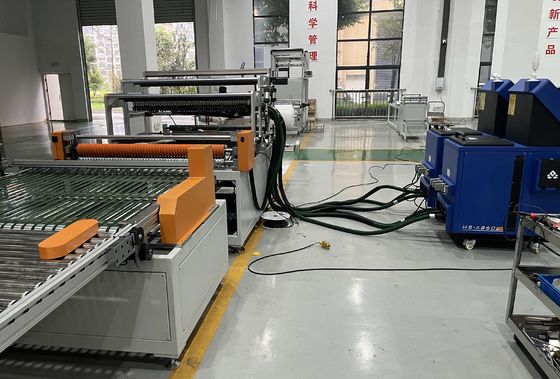

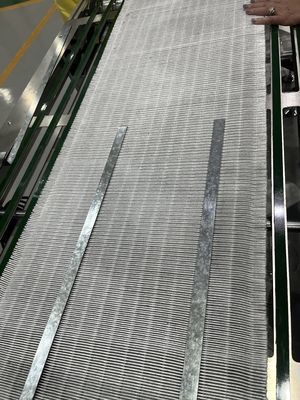

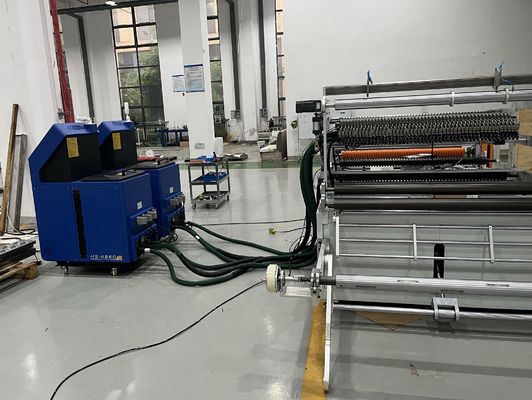

Product Images
Automatic hot melt adhesive PP Gluing and Wave Receiving Production Line Filter Gluing Machine Filter element Gluing Machine 0 Automatic hot melt adhesive PP Gluing and Wave Receiving Production Line Filter Gluing Machine Filter element Gluing Machine 1 Automatic hot melt adhesive PP Gluing and Wave Receiving Production Line Filter Gluing Machine Filter element Gluing Machine 2 Automatic hot melt adhesive PP Gluing and Wave Receiving Production Line Filter Gluing Machine Filter element Gluing Machine 3 Automatic hot melt adhesive PP Gluing and Wave Receiving Production Line Filter Gluing Machine Filter element Gluing Machine 4
Quality Assurance
Machinery test report and video outgoing-inspection provided with each unit.
