Name: Fully Automatic Servo Folding Production Line (4th Generation)
Brand: Bengbu Tongchen Automation Technology Co., ltd
SKU: TCZZJ
Price: 22,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Paper Production Line

Construction: Hepa Filter

Material: Paper

Type: Filter Pleating Machine

Welder: Spot Welding

Weight: 450kg

Control System: PLC

Folding Type: Z-Fold

Touchscreen Configuration: 10-inch Touch Screen(brand:INOVANCE)

Basic Infomation

Place of Origin: Bengbu, China

Brand Name: TONGCHEN

Model Number: TCZZJ

Payment & Shipping Terms

Packaging Details: wooden box

Delivery Time: 15~45 work days

Payment Terms: T/T

Supply Ability: 30 sets per day

Gallery

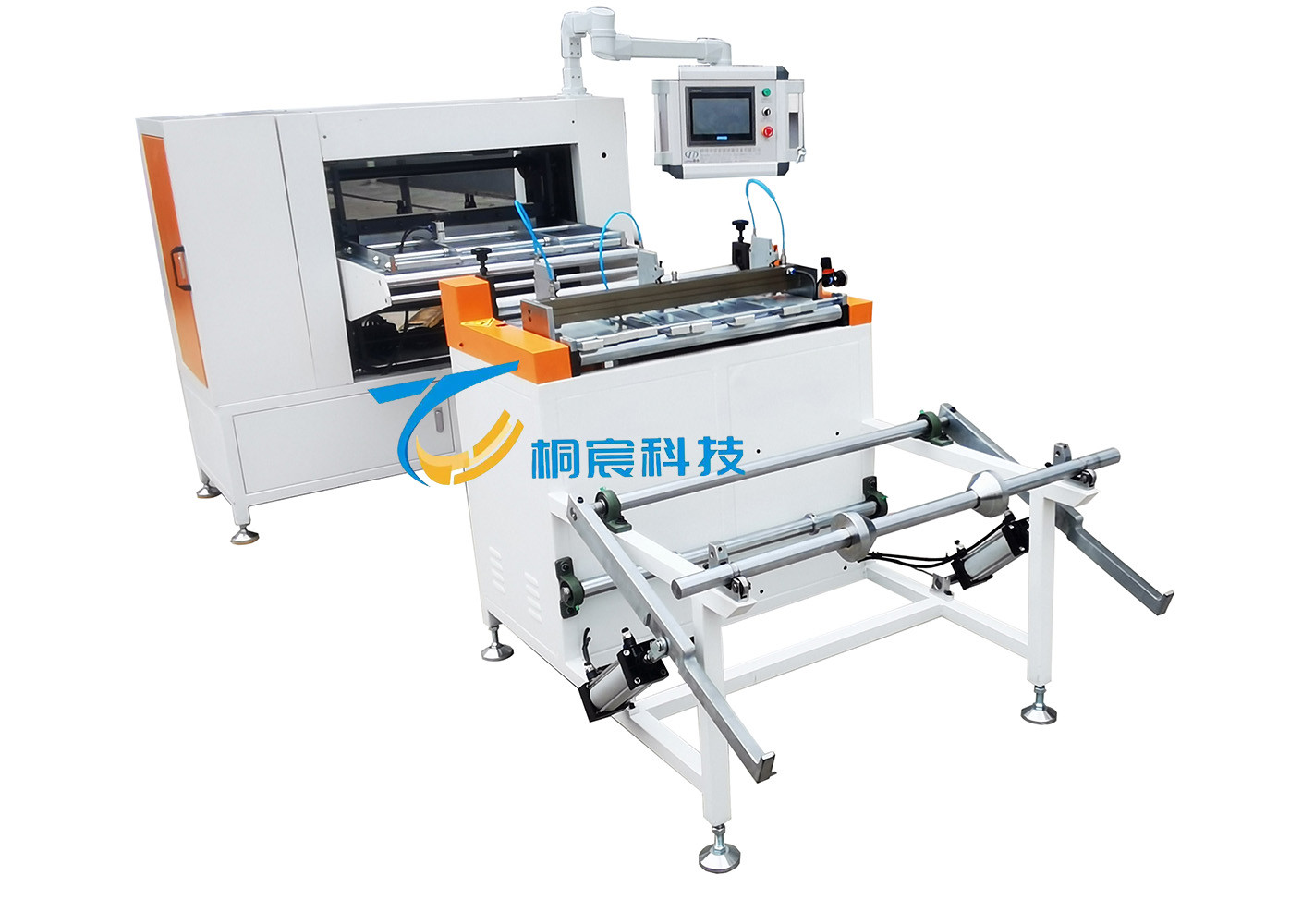

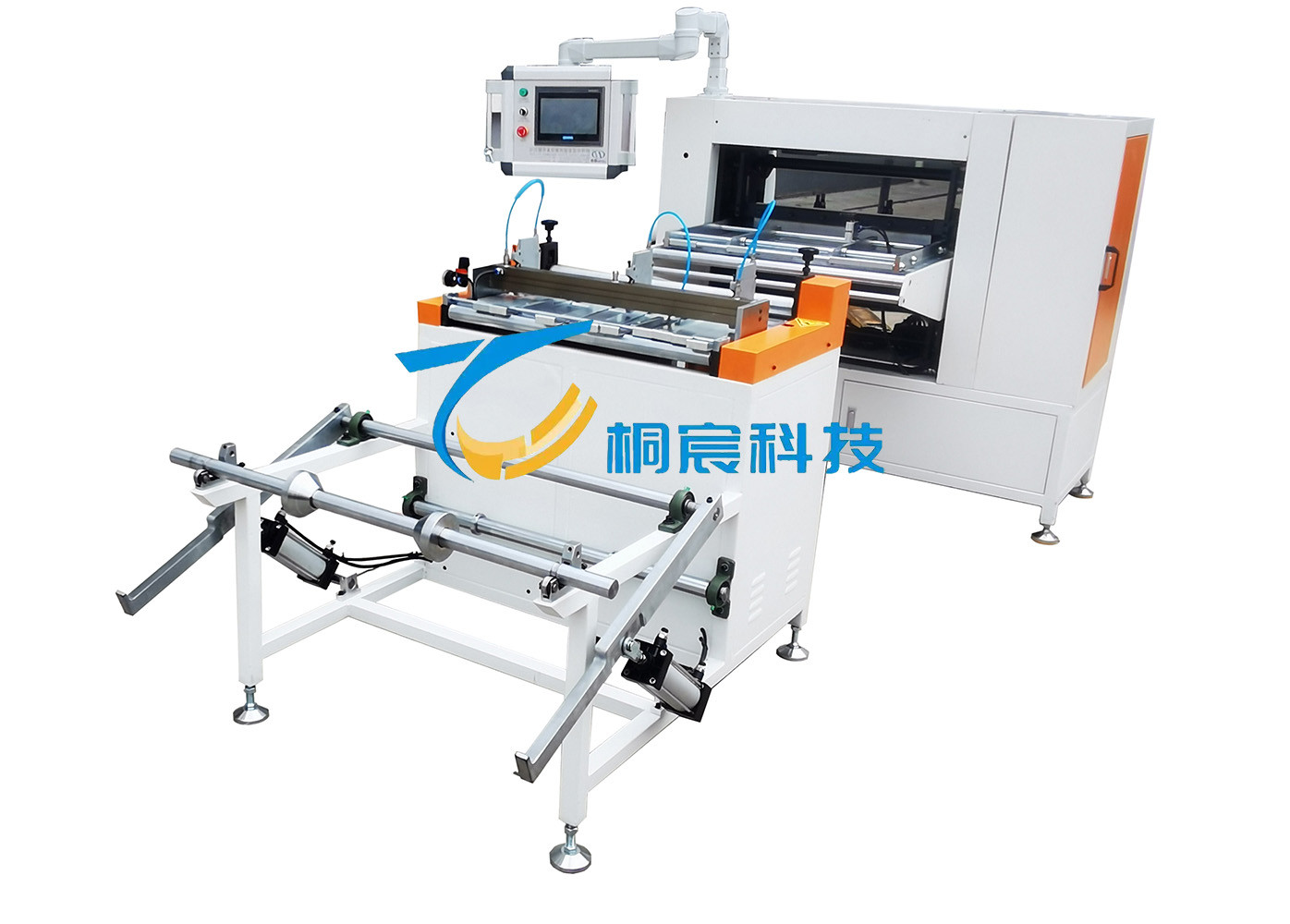

Fully Automatic Servo Folding Production Line (4th Generation)

Product Description

Fully Automatic Servo Folding Production Line

(4th Generation)

Customized products are available in various types.

Each product has its own price.

For detailed product information and to inquire about the price, please contact the customer service.

The more quantity, the better price.

Products Description

The Tongchen PTFE fully automatic servo paper folding production line is specially designed for processing high-performance filter materials. Its core configurations include an automatic paper feeding rack, pre-slitting and paper feeding machine, automatic counter, and high-precision filter paper folding machine. Equipped with a servo control system, it allows flexible adjustment of paper feeding speed, suitable for materials like PTFE membranes and filter paper with a width of up to 800mm, meeting diverse production needs of air filter elements, liquid filter materials, etc.

Its intelligent slitting technology ensures material size error within ±0.1mm, with high and uniform folding accuracy, significantly enhancing the filtration efficiency and structural strength of filter elements. Applicable to the pre-treatment process of filter materials in filter manufacturing enterprises, environmental protection equipment manufacturers, and mask manufacturers, the entire process from raw material unwinding to folding and shaping is fully automated. This reduces manual intervention and increases production capacity by over 30%, making it core equipment for large-scale production of high-quality filtration products.

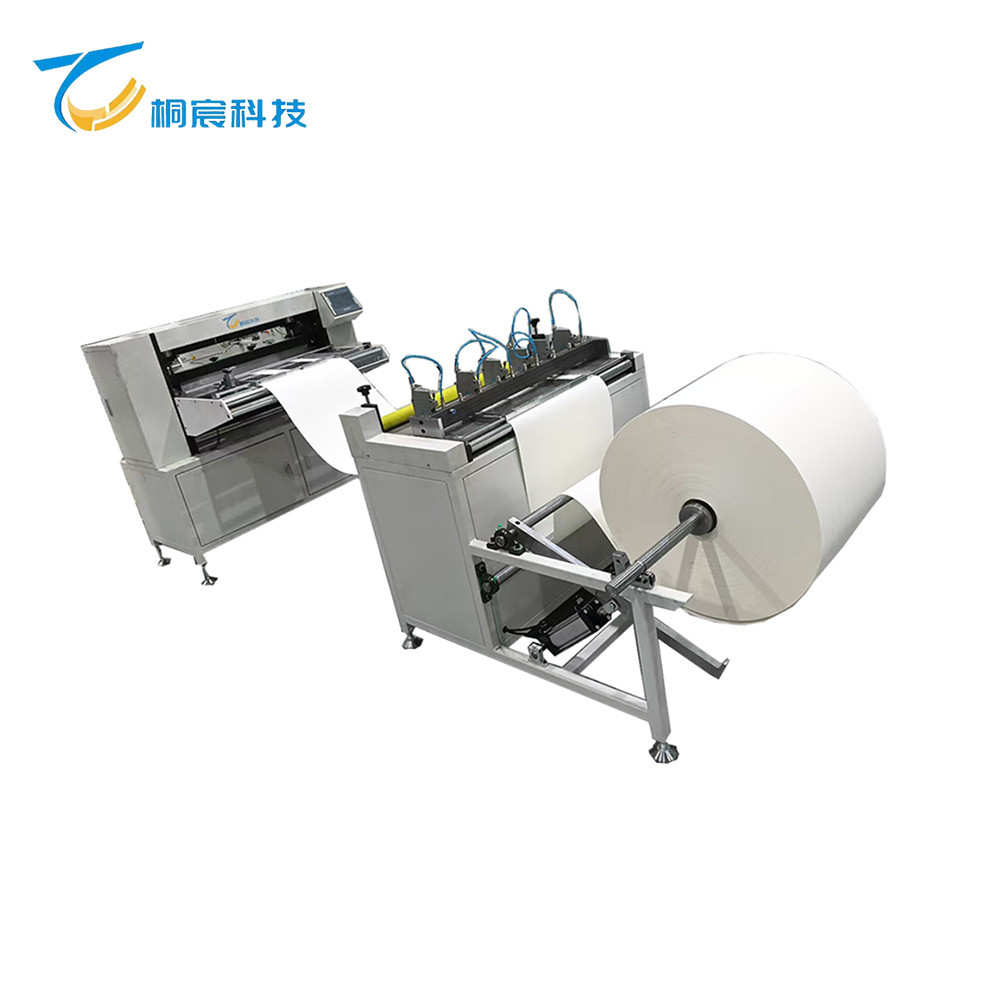

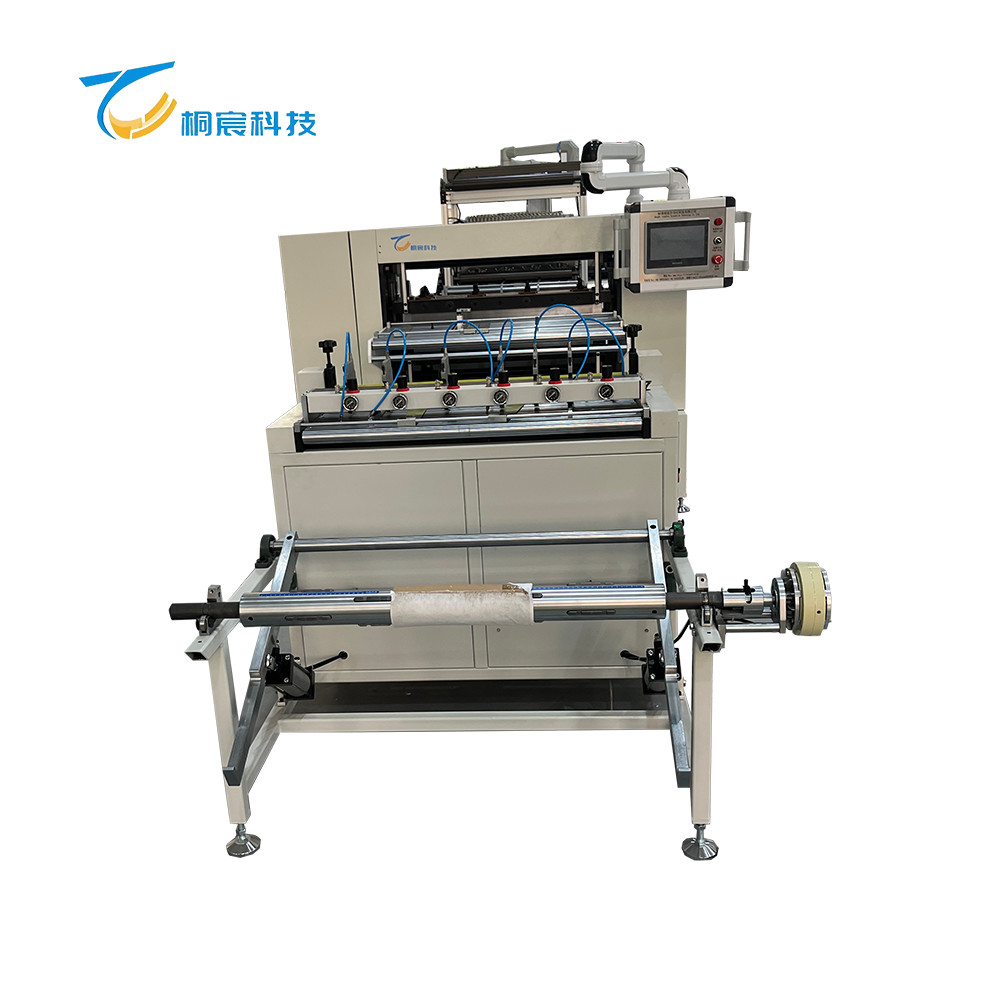

Fully Automatic Servo Folding Production Line (4th Generation) 0

Product Parameters

Product parameters for reference only, details consult customer service.

Machine Name	Fully Automatic Servo Folding Production Line (4th Generation)
Applicable materials	Glass fiber filter paper, glass fiber composite paper, high-temperature resistant glass fiber cloth (moisture content ≤0.5%)
Slitting width range	50-850mm (Minimum slitting width 50mm, customizable widening up to 850mm is supported)
Slitting accuracy	±0.15mm (static) /±0.3mm (dynamic, during high-speed operation)
Maximum load capacity of the discharge rack	500kg (standard single station) /1000kg (optional double station with automatic switching)
Slitting speed	0-180m/min (adjustable, depending on the material thickness. When the glass fiber is 0.5mm, it is recommended to be ≤150m/min)
