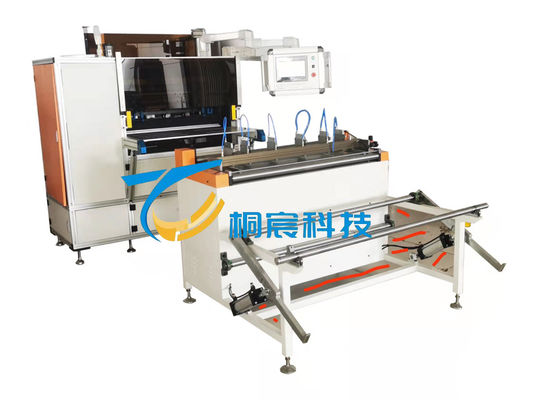

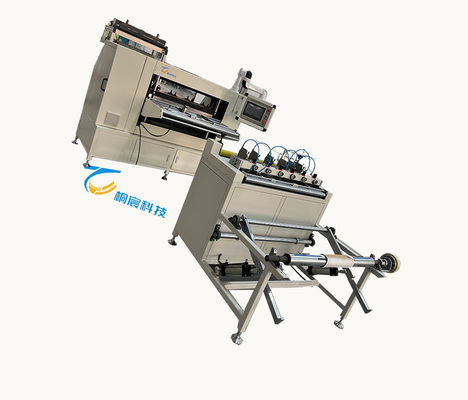

Fully automatic knife-type origami production line (fifth generation)
Customized products are available in various types. Each product has its own price. For detailed product information and to inquire about the price, please contact the customer service. The more quantity, the better price.
Products Description
1.Paper feeding platform: Limit devices ensure stable, non-deviating feed for various material sizes. 2. Marking system: Counting adjustable via display for easy operation. 3. Safety light curtain: Photoelectric sensors stop the machine instantly when blocked, ensuring safety. 4. Folding mechanism: Top/bottom mechanical arms control blades for fast, efficient folding. 5. Heating unit: Upper/lower plates with 3 disks each; temperature adjustable via display. 6. Paper pressing setup: Five plates with cylinders/tension gauges ensure stable product output. 7. Rear workplate: Electroplated hard chromium material; rear tempered glass for durability/safety.
Product application
Core functions:
The fully automatic servo knife-type folding machine does not require a gear or synchronous belt, nor does it need an induction sensor or photoelectric switch. It uses full servo control and electronic cam to control the movement of the mechanical arm to complete the folding of products. The opening and closing angles of the upper and lower knives for folding, as well as the pressing angle, can all be freely controlled in multiple angles. It is suitable for folding W-shaped, M-shaped, Step-Up type and multi-layer materials, etc.
Target industry:
Air purification equipment manufacturing (medical cleanroom, semiconductor factory filters)
Production of industrial dust removal equipment (high-temperature filters for cement plants and steel mills)
The material pretreatment process of filter manufacturing (OEM/ODM) enterprises
Applicable materials
Product parameters for reference only, details consult customer service.
| Machine Name |
Fully Automatic Knife-type Origami Production Line (fifth Generation) |
| Applicable materials |
Glass fiber filter paper, glass fiber composite paper |
| Slitting width range |
25-1000mm (Minimum slitting width 25mm, customizable widening up to 1000mm is supported) |
| Slitting accuracy |
±0.2mm (static) /±0.3mm (dynamic, during high-speed operation) |
| Folding rate |
0·180 revolutions per minute (adjustable continuously) |
| Slitting speed |
0.5m/min~25m/min
|
Company Profile
Bengbu Tongchen Automation Technology Equipment Co., Ltd.
A Leading Innovator in Filter Manufacturing Automation
As a professional developer, designer, and manufacturer of filter production equipment, Bengbu Tongchen is headquartered in Bengbu—known as the "Pearl City," a vital transportation hub, cultural heritage city, and industrial center in China. Specializing in advanced automation solutions, our core portfolio includes:
Paper pleating systems
Rotary machinery
Diesel engine filter production lines
Large air filter manufacturing equipment
Partitioned/partitionless filter production lines for purification industries
High-precision pleating machines
Partitionless glass fiber strip production lines
Contact us today to explore how our automation expertise can elevate your filter manufacturing capabilities.
