Air Filter Pleating Paper High Quality Paper Filter Pleating Machine
The diesel filter comprehensive test bench is specially designed for the performance testing of diesel filters and is applicable to the fields of automotive manufacturing, filter production and maintenance inspection. The equipment integrates multi-dimensional testing functions, which can accurately verify the filtration efficiency, pressure drop characteristics, sealing performance, dust holding capacity and anti-aging performance of the filter, fully covering the strict requirements of National VI/National VII standards.
Customized products are available in various types. Each product has its own price. For detailed product information and to inquire about the price, please contact customer service. The more quantity, the better price.
Technical Parameters of the Shearing Machine
- Pre-shearing Paper Feeder: 800mm
- Paper feeding speed: 0.5m/min to 25m/min adjustable
- Adjustable filter paper width: 25 - 600mm
- Power supply voltage: 380V/50Hz
- Motor power: 0.55kw
- Working air pressure: 0.6Mpa
- Machine weight: 250kg
- Dimensions: 1280×1100×1200mm (length×width×height)
| Specification |
Value |
| Name |
Air Filter Pleating Paper High Quality Paper Filter Pleating Machine |
| Max.width |
800mm |
| Min.width |
50mm |
| Type |
Paper Folding Machine |
| Warranty |
1 year |
| Material width |
800mm |
| Speed |
0-35m/m |
| Packing |
Wooden |
| Material |
Non-woven, carbon fiber, wire mesh, active carbon |
| Voltage |
380v/50hz |

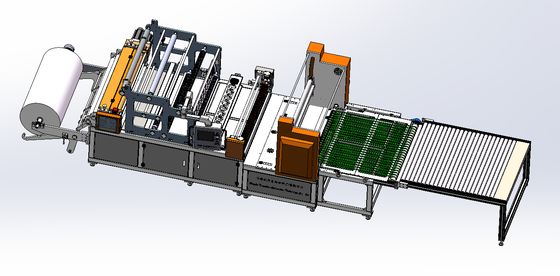

Panel Air Filter Paper Pleating Production Line Specifications
| Parameter |
Value |
| Width |
90~320mm |
| Pleating height |
20~58mm |
| Speed |
5~25m/min (adjustable) |
| Temperature range |
0~300°C |
| Heater power |
8.5kw |
| Transmission power of pleater |
0.75kw |
| Conveyer belt transmission power |
0.25kw |
| Conveyer belt speed |
0~5m/min (adjustable) |
| Working air pressure |
0.6Mpa |
| Power supply |
380V/50HZ |
| Machine weight |
1100kg |
| Machine size |
7500×950×1750mm (L×W×H) |
About Bengbu Tongchen Automation Technology Equipment Co., Ltd.
Bengbu Tongchen Automation Technology Equipment Co., Ltd. is a professional company integrating the development, design, and production of filter manufacturing equipment. Located in the beautiful city of Bengbu, known as the "Pearl City"--an important transportation hub, densely populated cultural ancient city, and industrial base.
Our main products include paper folding equipment, rotating machines, diesel engines, large air filter production equipment, partitionless and partitioned filter production equipment for the purification industry, pleating machines, and partitionless glass fiber strip production lines. The company will further develop advanced, practical, and efficient models for practical production, leading domestic trends and catering to international standards, making due contributions to China and the global filter industry.
We prioritize product quality and service, which are key factors in making your brand more competitive in the global market. Tongchen Technology will become your most reliable mechanical solution provider, partner, and friend in China. We are ready to establish long-term business relationships with your company and welcome friends from all over the world.
